8.JOB STATUS

4.Log List (Cont.)

Printing journals (send/receive log list)

You can print the send and receive log lists of the Fax job. The 40 latest send-and-receive logs (1 page), or

the 120 latest send-and-receive logs (3 pages) can be printed out. You can also select and print only 1 log.

• For details, see the Operator’s Manual for Facsimile Function.

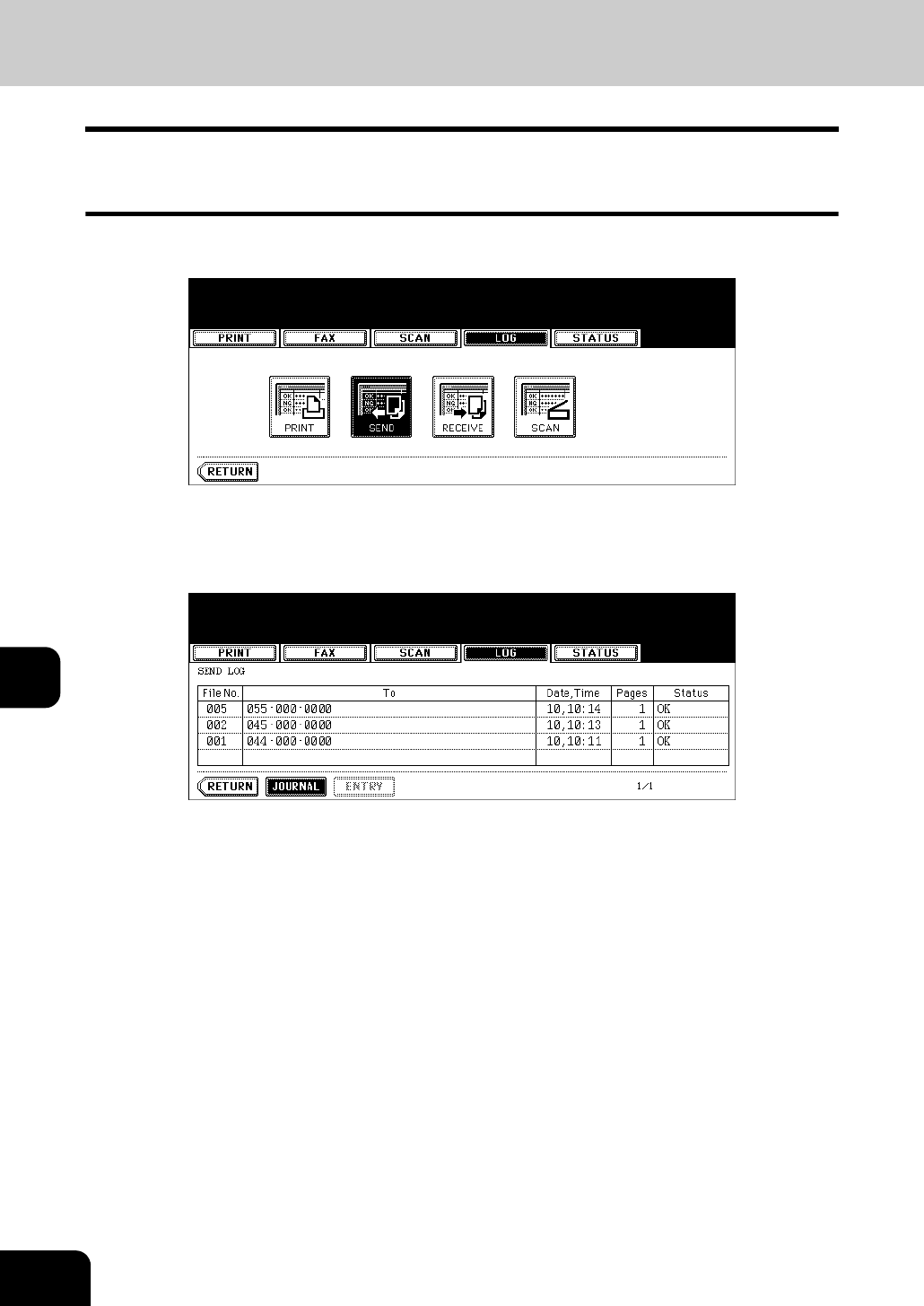

Press the [SEND] (or [RECEIVE]) button on the log menu.

• The send (receive) log list is displayed.

Press the [JOURNAL] button.

• The send (receive) log list is printed.
