Scan log

When you press the [SCAN] button on the log menu, the histories of the following items are displayed.

• Job filed in e-Filing by copying

• Job filed in a shared folder by copying (= SAVE AS FILE) (The Scanner Kit or the Printer/Scanner Kit

(both optional) is necessary.)

• Job filed in e-Filing or a shared folder by scanning (= SCAN TO FILE) (The Scanner Kit or the Printer/

Scanner Kit (both optional) is necessary.)

• E-mail sent by scanning (= SCAN TO E-MAIL) (The Scanner Kit or the Printer/Scanner Kit (both

optional) is necessary.)

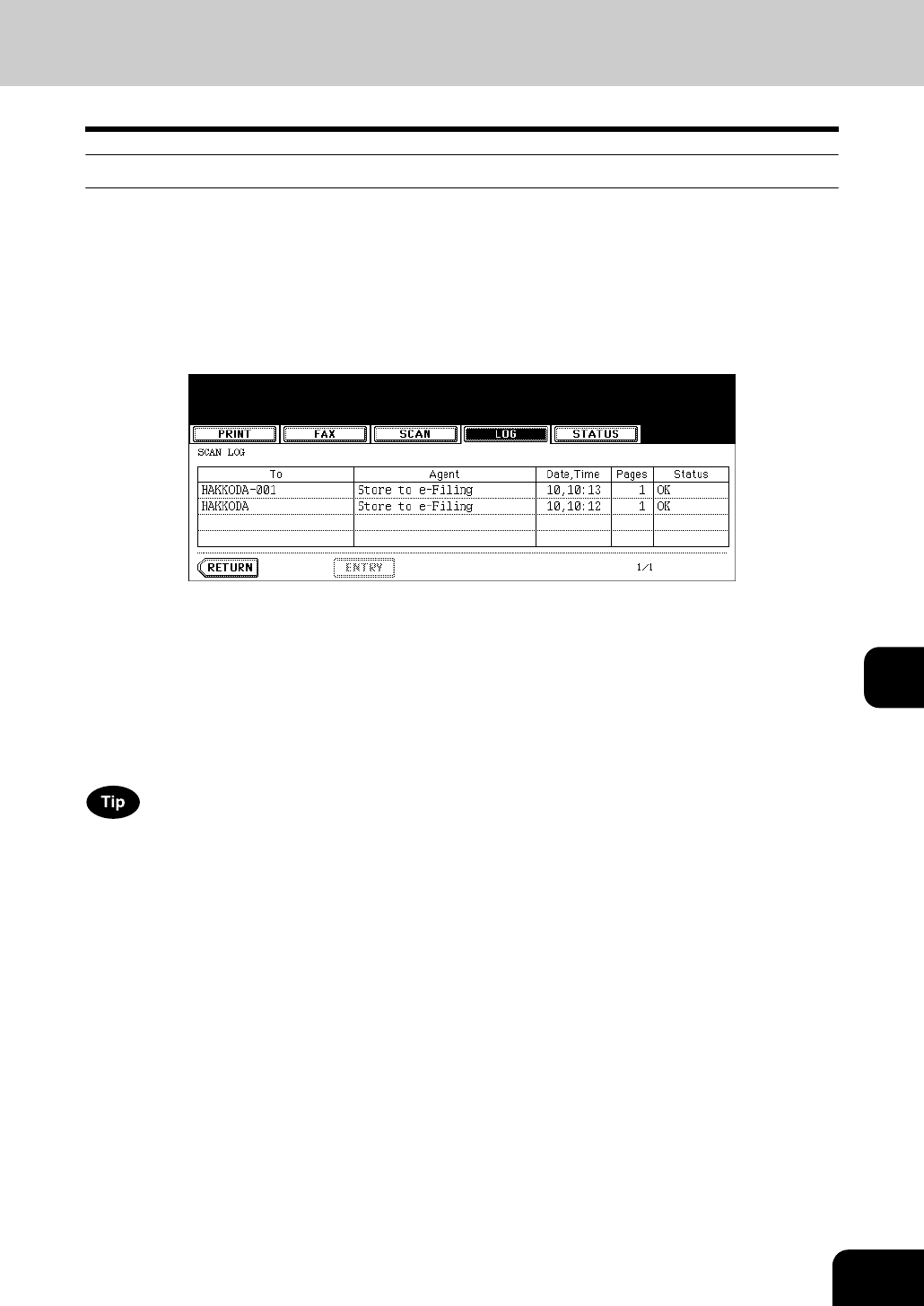

The following information is displayed.

4 jobs are displayed in 1 page. Up to 30 pages (120 jobs) can be displayed. When you want to confirm the

5th and the following jobs, press the [Next] button, and when you want to return to the previous page,

press the [Prev] button.

The following buttons are displayed.

To: Where the scanned data are to be filed or sent

Agent: Agent by which performed

Date, Time: Date and time the scan job was performed

Pages: Number of pages of job scanned or E-mailed

Status: Result is displayed as “OK” or in error codes.

(For the error codes, see  P.256 “6.Error Code”.)

[ENTRY]: Press this button to register unregistered E-mail addresses on the scan log list into the

address book. (For details, see  P.250 “Registering into address book from log lists”.)

[RETURN]: Press this button to return to the log menu.
