8.JOB STATUS

3. Confirming Scan Job Status

You can confirm the scan job status and delete a scan job. For details, refer to the Scanning Guide.

• The Scanner Kit or the Printer/Scanner Kit (both optional) is necessary for the scanning function.

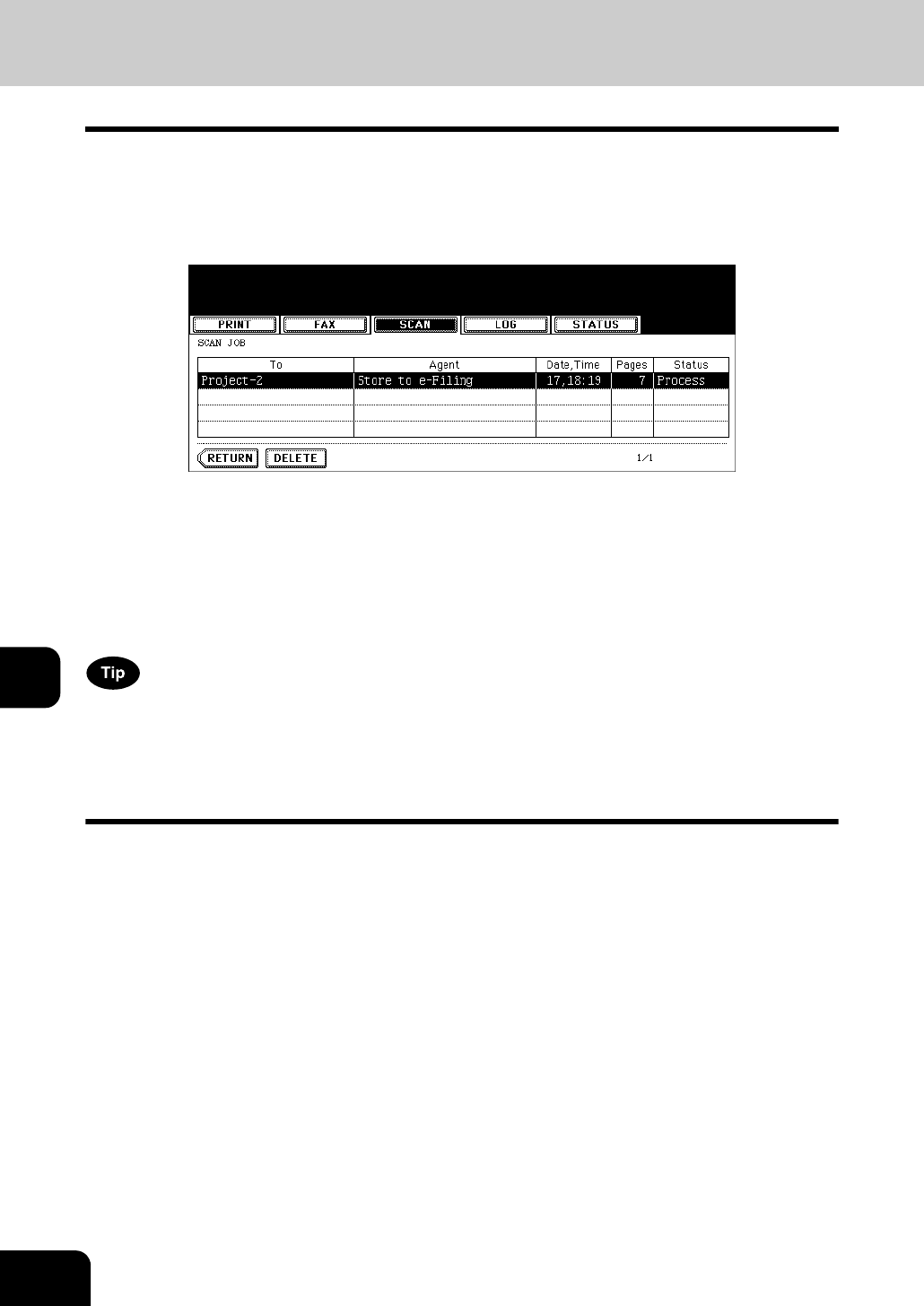

Press the [JOB STATUS] button on the control panel. Then press the [SCAN] button on the touch panel to

display the scan job list.

The following information is displayed.

4 jobs are displayed in 1 page. Up to 250 pages (1000 jobs) can be displayed. When you want to confirm

the 5th and the following jobs, press the [Next] button, and when you want to return to the previous page,

press the [Prev] button.

Deleting scan job

Select the job you want to delete on the scan job list, and then press the [DELETE] button.

To: Where the scanned data are to be filed or to be sent

Agent: Agent by which performed

Date, Time: Date and time the job was registered

Pages: Number of originals

Status: Status of jobs
