203

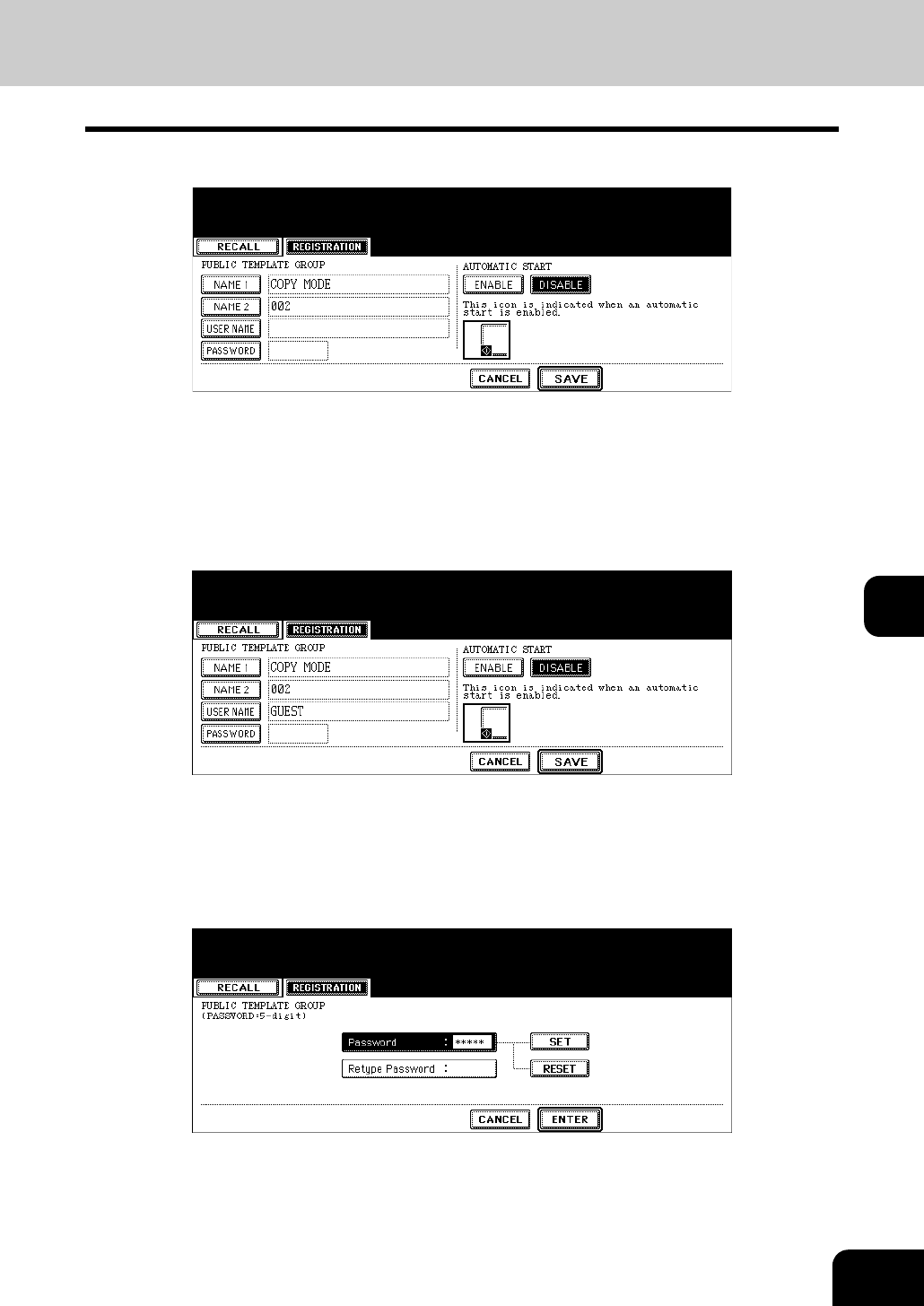

Enter the template name.

• [NAME 1] is displayed on the upper side and [NAME 2] is displayed on the lower side of the template button.

Enter [NAME 1] and/or [NAME 2]. When both are entered, [NAME 1] is displayed on the upper side and

[NAME 2] on the lower side of the button.

• When the [NAME 1] or [NAME 2] button is pressed, the letter entry menu ( P.30) is displayed. Up to 11 let-

ters can be entered.

Enter the user name of the template as required.

• When the [USER NAME] button is pressed, the letter entry menu ( P.30) is displayed. Up to 30 letters can

be entered.

Key in the password in “Password” as required, and then press the

[SET] button to fix it.

• Be sure to key in the 5-digit password.

• * (asterisk) is displayed in “Password” when the password is entered.

• To correct the entered password, press the [CLEAR] button on the control panel.

• When the [SET] button is pressed, “Retype Password” becomes highlighted.
