Negative/Positive reversal

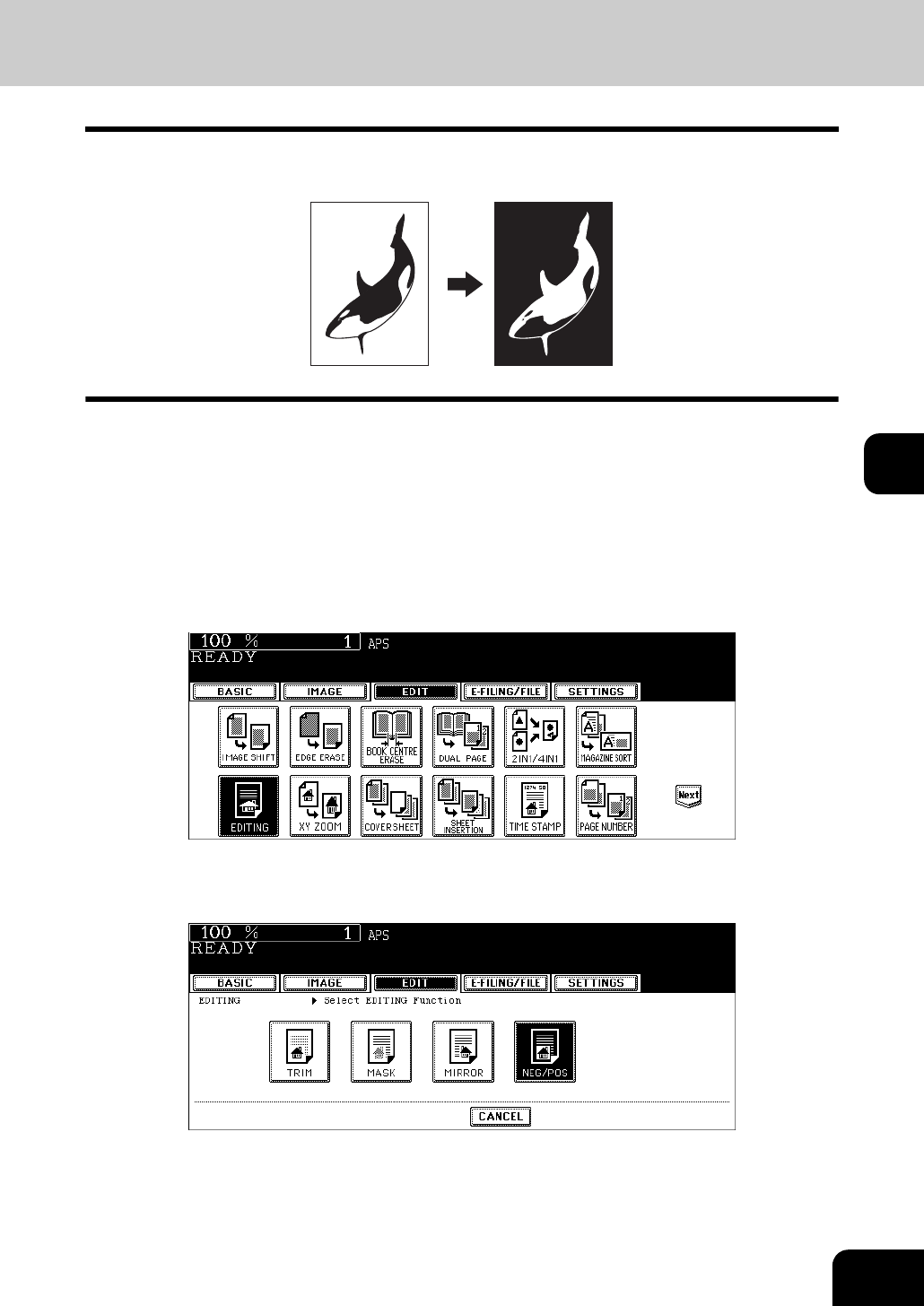

This function allows you to make copies reversing the black areas on the original to white ones, or vice

versa.

Place paper in the drawer(s).

• When using this mode in bypass copying, be sure to specify the paper size ( P.78 “1.Paper Selection”).

Place the original(s).

Press the [EDIT] button to enter the edit menu, and then press the

[EDITING] button.

Press the [NEG/POS] button.

• Select other copy modes as required.

Press the [START] button.
