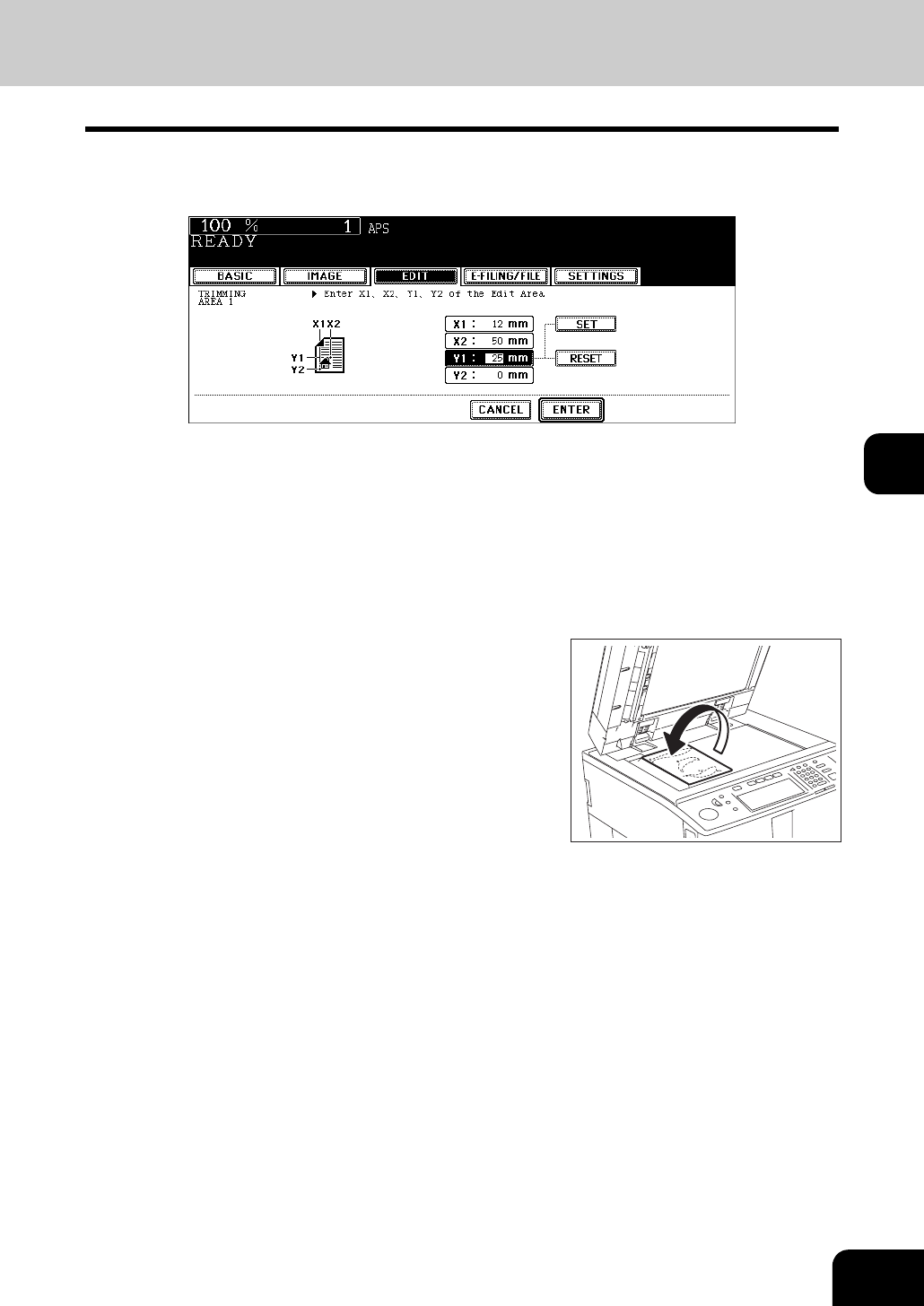

Enter the values read in step 5 for the specified area, and then press

the [SET] button. Set 4 values in order.

• After the setting of 4 values is finished, the next edit area menu is displayed. Repeat steps 5 and 6 when you

specify other areas. Up to 4 areas can be specified on an original.

• To correct the value which has been set, press the [RESET] button. Pressing it once makes the highlighted

field move one position upward. Highlight the field in which you want to rectify the value, and then key in the

correct one.

• If the [RESET] button is pressed while the X1 field is highlighted, all values in the fields will become “0”.

Press the [ENTER] button after specifying the area.

Press the [START] button.

Place the original(s) with its face down.

• Set the original face down with its bottom toward you and fit its

top left corner against the top left corner of the original glass.

• Select other copy modes as required.
