5.USING THE EDITING FUNCTIONS

7.EDITING (Cont.)

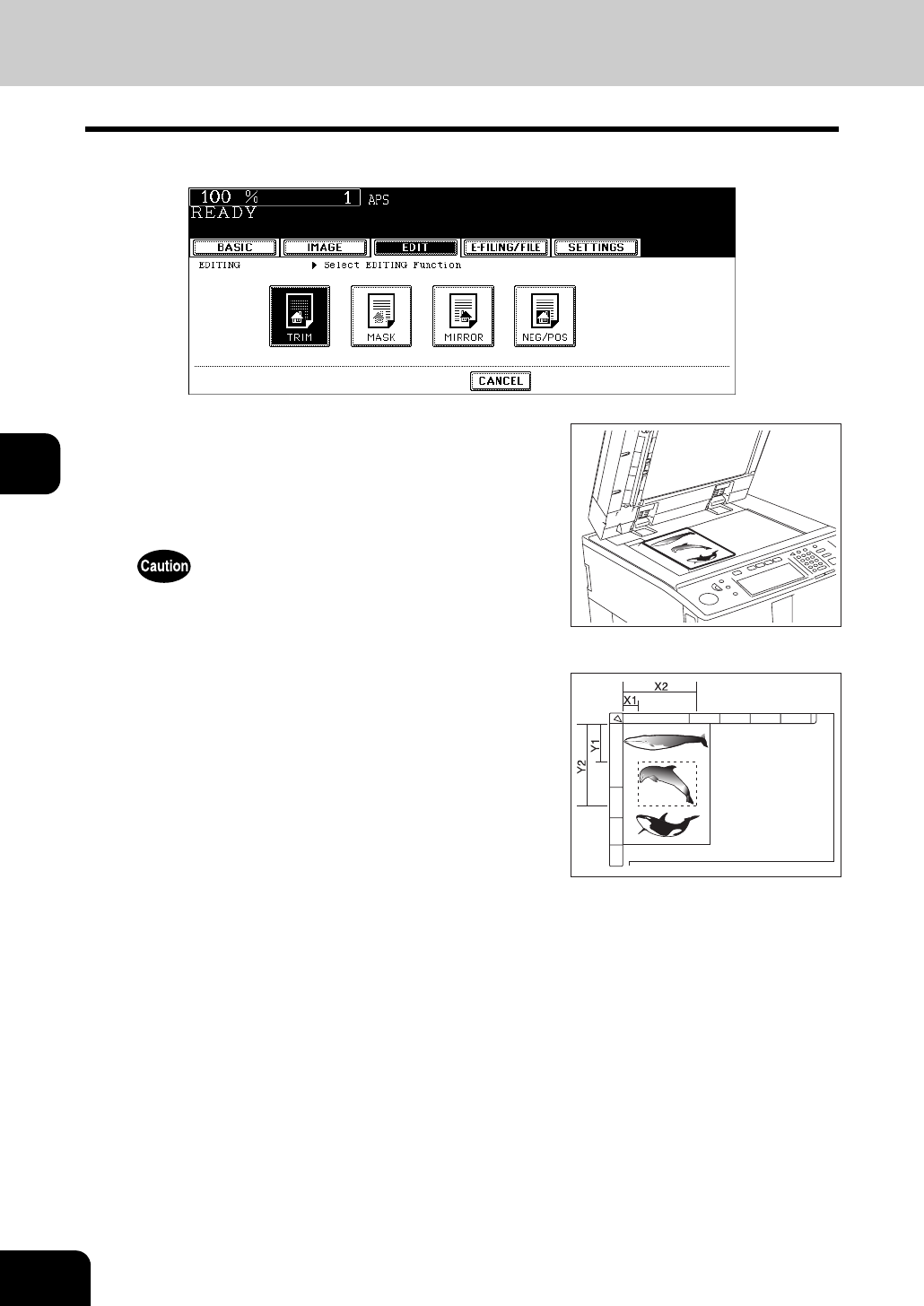

Press the [TRIM] (or [MASK]) button.

Place the original with its face up on the

original glass.

• Set the original face up with its bottom toward you and fit its top

left corner against the top left corner of the original glass, and

align it with the original scales.

Do not place heavy objects (4 kg or more) on the original glass and

do not press on it with force. Breaking the glass could injure you.

Specify the area. Using the original scale

on the left and the inner (top) scale, read

the following 4 values:

X1: Distance from the top left to the left edge of the

specified area

X2: Distance from the top left to the right edge of the

specified area

Y1: Distance from the top left to the upper edge of the

specified area

Y2: Distance from the top left to the lower edge of the

specified area

• The marks of the original scale have a 2 mm pitch.
