Place paper in the drawer(s).

• When using this mode in bypass copying ( P.69), be sure to specify the paper size.

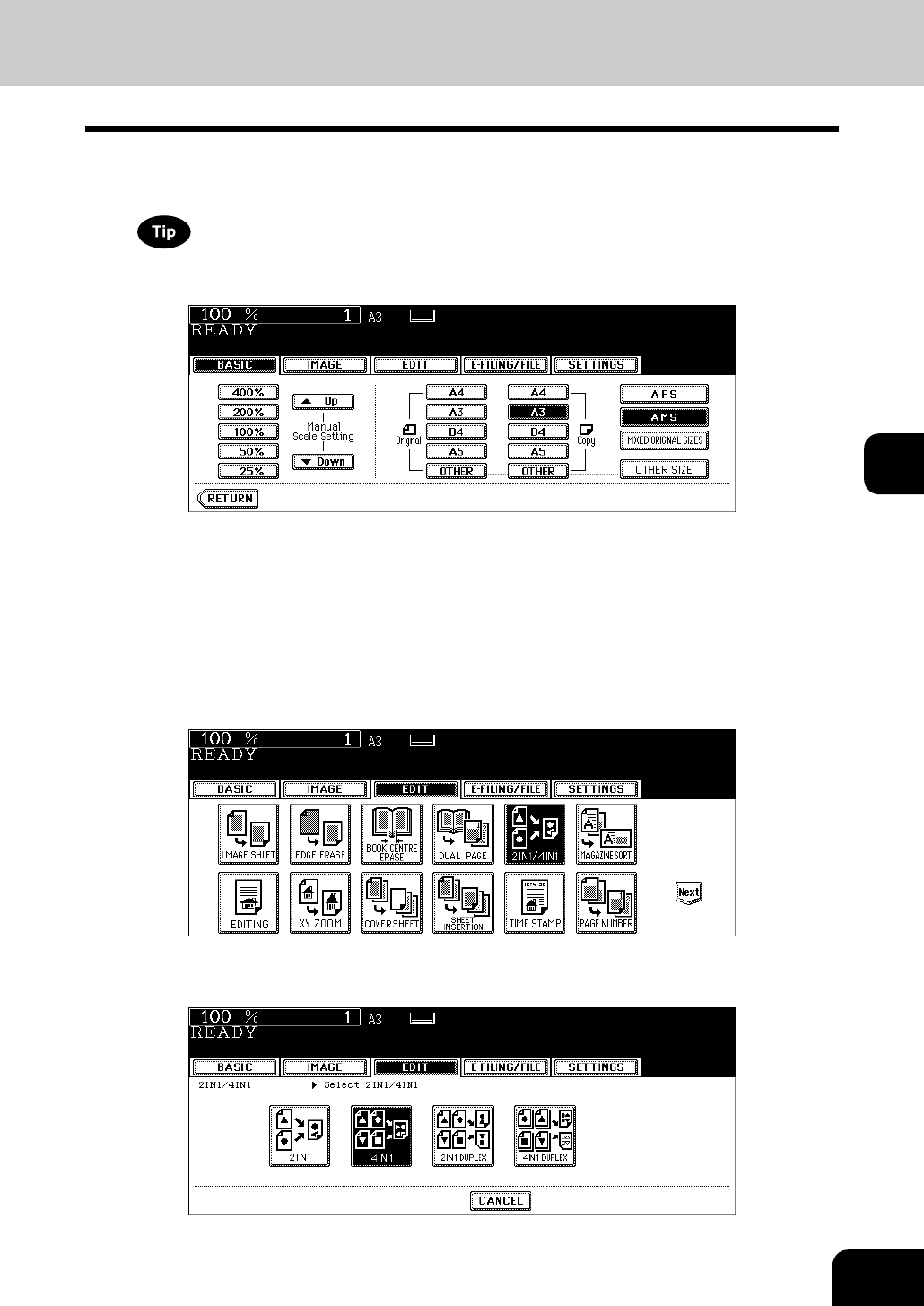

To make copies on paper which is not the same size as the original, press the [ZOOM] button on the basic menu

to enter the following menu, select the desired paper size and press the [AMS] button.

• If the paper size is not changed, paper of the same size as the original is selected.

Place the original(s).

Press the [EDIT] button to enter the edit menu, and then press the [2

IN1 / 4IN1] button.

Select the type of image combination.
