Hole punch mode (optional)

When the Hole Punch Unit (optional) is installed to the Finisher or the Saddle Stitch Finisher (both

optional), you can punch holes in the copies.

• The available copy paper sizes for this mode are A3, A4, A4-R, B4, B5, B5-R and FOLIO.

• The paper weight applicable for this mode is 64 to 256 g/m

• Special paper such as OHP films or sticker label cannot be used for hole punching.

Place paper in the drawer(s).

• When using this mode in bypass copying, specify the paper size in advance. ( P.69 “6.Bypass Copying”)

Place the original(s).

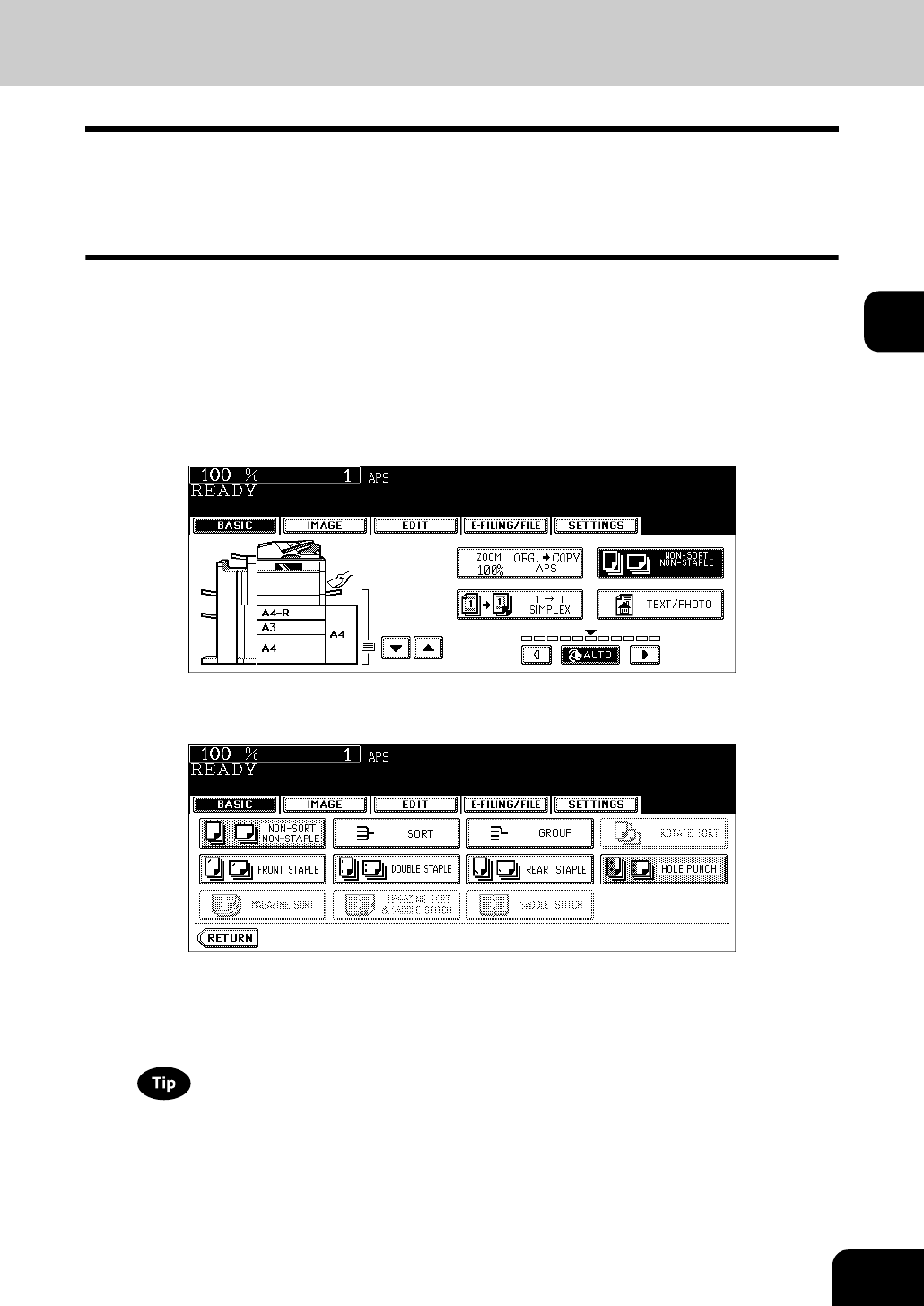

Press the finisher button on the basic menu.

Press the [HOLE PUNCH] button.

• Set other copy modes as required.

Press the [START] button.

When the Inserter Unit (optional) is installed, you can punch holes without the need to go through any copying

operation by setting paper on the unit.
