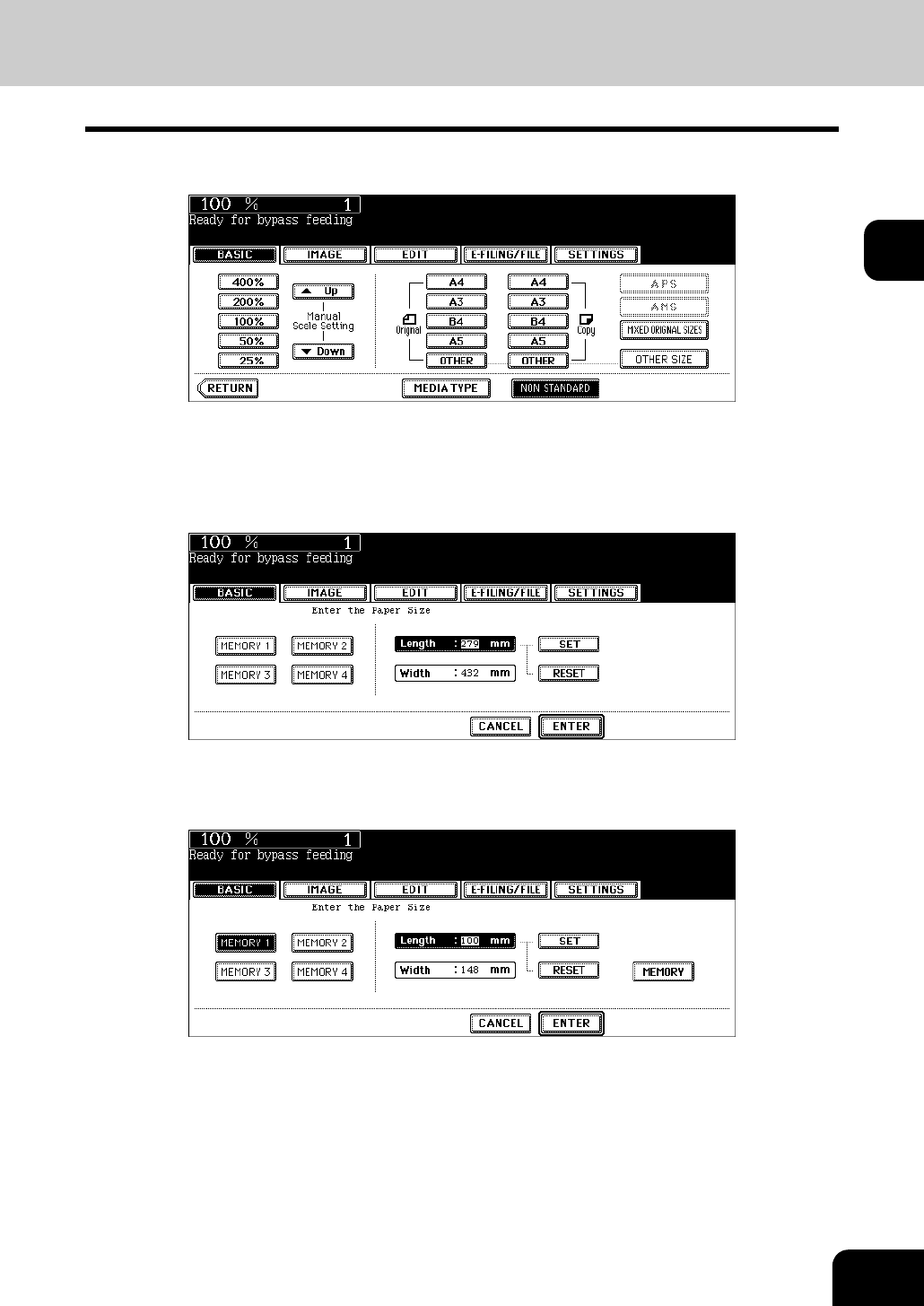

Press the [NON STANDARD] button on the touch panel.

Set each dimension following the procedure below.

Using the digital keys

Key in the value in [Length] and press the [SET] button on the touch panel. Set the width in the same

way and press the [ENTER] button.

Recalling dimensions registered in the memory

Press the desired memory number button from [MEMORY 1] to [MEMORY 4] to recall the dimension

data registered previously, and then press the [ENTER] button.

• Maximum paper size to be set: 297 mm (length) x 432 mm (width)

• To register the dimension data in the memory, see  P.76 “Registering non-standard size in the memory”.

• Set other copy modes as required.

Press the [START] button on the control panel.
