1.BEFORE USING EQUIPMENT

4.Setting Copy Paper (Cont.)

Changing the setting of paper size

If the setting of the paper size registered in the equipment does not correspond to the one in the drawer, it

could cause a paper jam. In this case, replace the paper corresponding to the setting of the paper size (

P.40 “Placing paper in the drawer”), or change the setting of the paper size according to the following pro-

cedure.

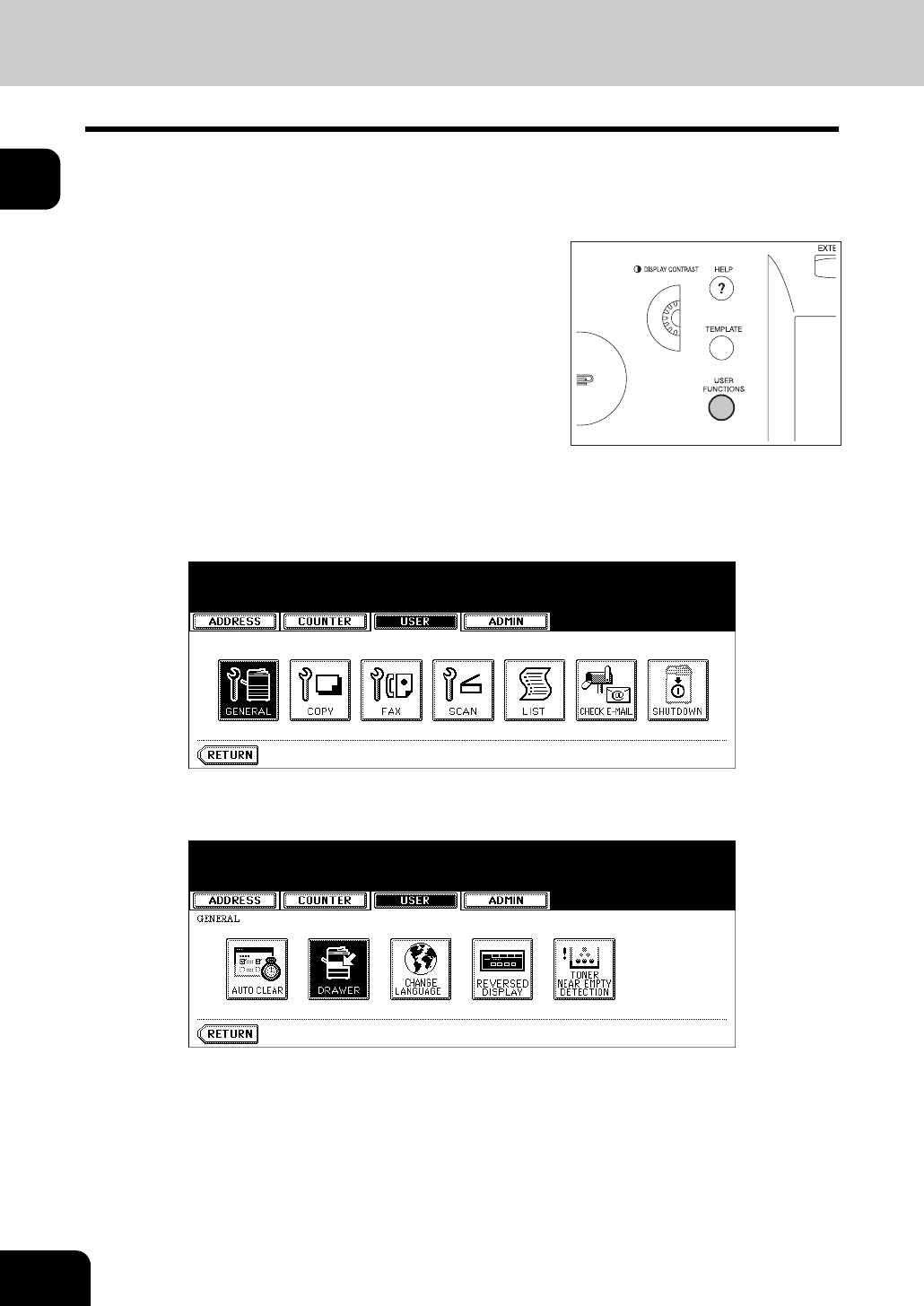

Press the [USER] button on the touch panel to enter the user setting

menu, then press the [GENERAL] button.

Press the [DRAWER] button on the touch panel.

Press the [USER FUNCTIONS] button on

the control panel.
