10.WHEN THIS MESSAGE APPEARS

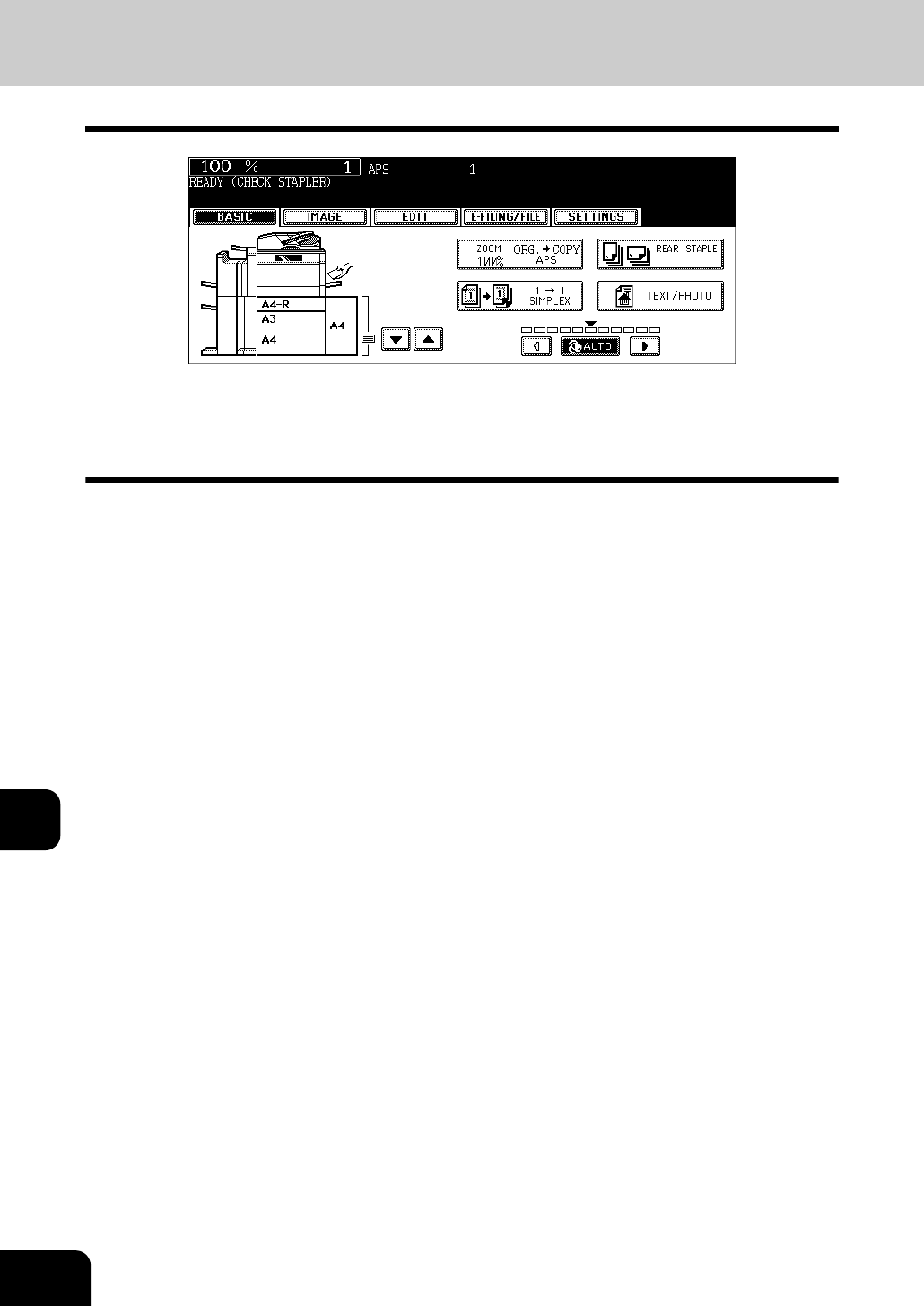

5. “READY (CHECK STAPLER)”

This message will be shown only when the Finisher (optional) is installed. It appears when the staples in

the stapler of the Finisher run out or when the staples in the Finisher are jammed.

Clear the error according to the procedure in  P.298 “2.“Check staple cartridge”” or  P.302 “4.“Exam-

ine stapler””.
