302

10.WHEN THIS MESSAGE APPEARS

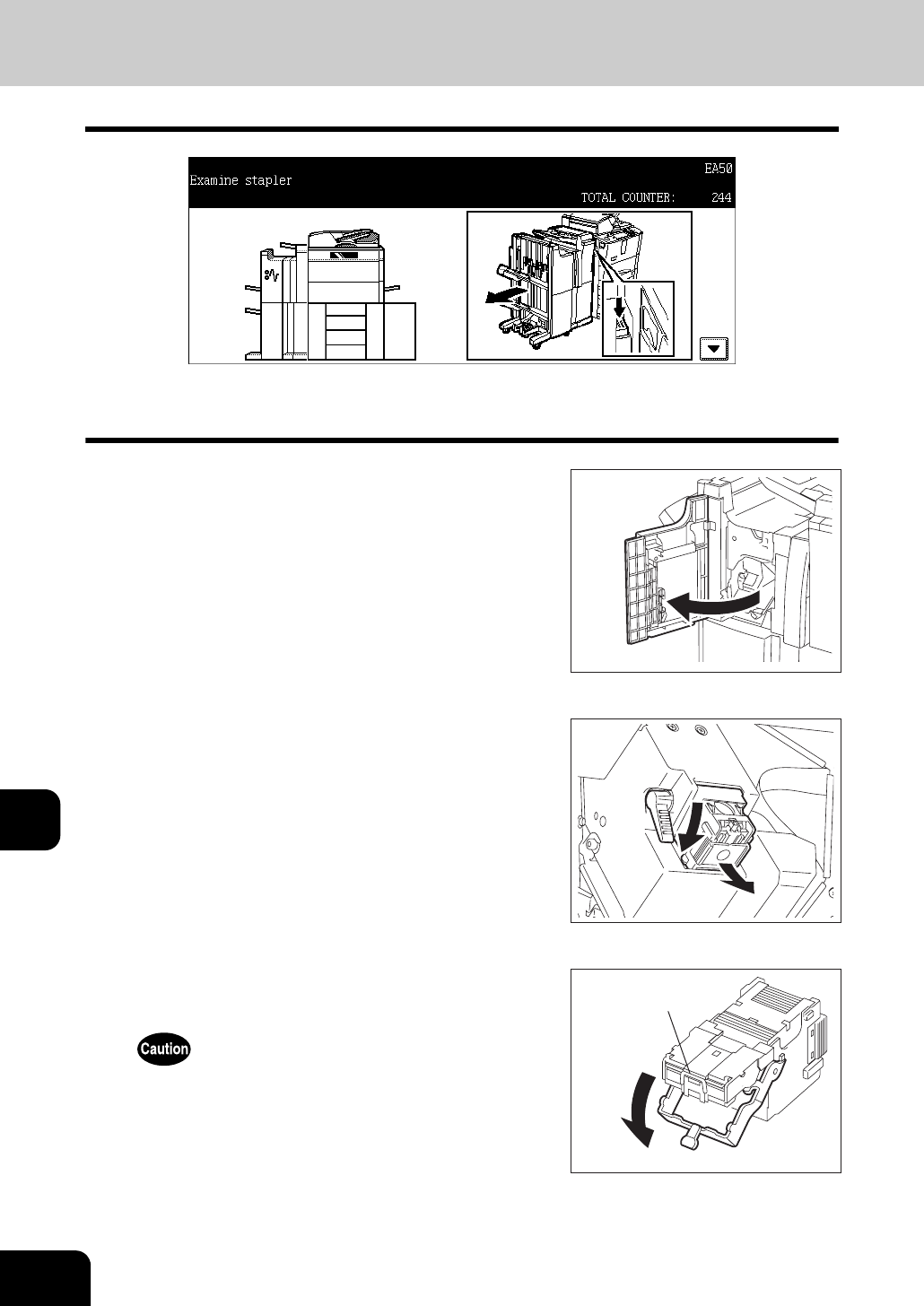

4. “Examine stapler”

This message appears when the staples in the Finisher (optional) are jammed. To remove them, follow the

procedure below.

Open the front cover of the Finisher.

Lower the lever of the stapler to release

the lock, and then take out the staple car-

tridge.

Lower the guide holding the knob.

A: Stapling area

Do not touch the stapling area. The stapler could injure you.
