10.WHEN THIS MESSAGE APPEARS

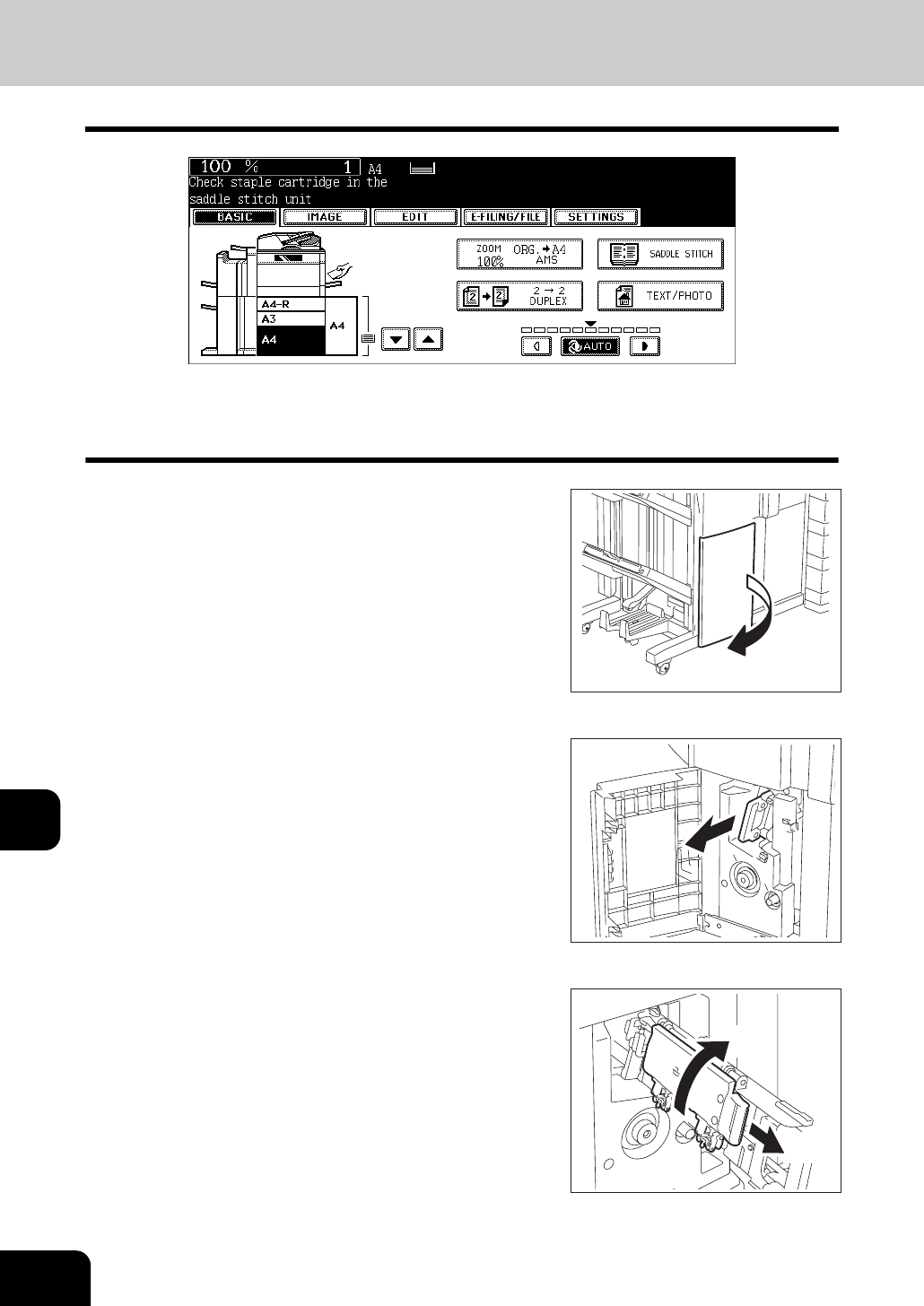

3. “Check staple cartridge in the saddle stitch unit”

This message will be shown only if the Saddle Stitch Finisher (optional) is installed. When the staples in

the stapler of the Saddle Stitch Finisher (optional) run out, this message appears.

Replace the staple cartridge according to the following procedure.

Open the lower cover of the Saddle Stitch

Finisher.

Pull out the saddle stitch unit slowly.

Pull the handle of the stapler of the sad-

dle stitch unit to release the lock. Then

rotate the stapler approx. 60º clockwise.

• The stapler is locked and fixed when it comes to a near-horizon-

tal position.
