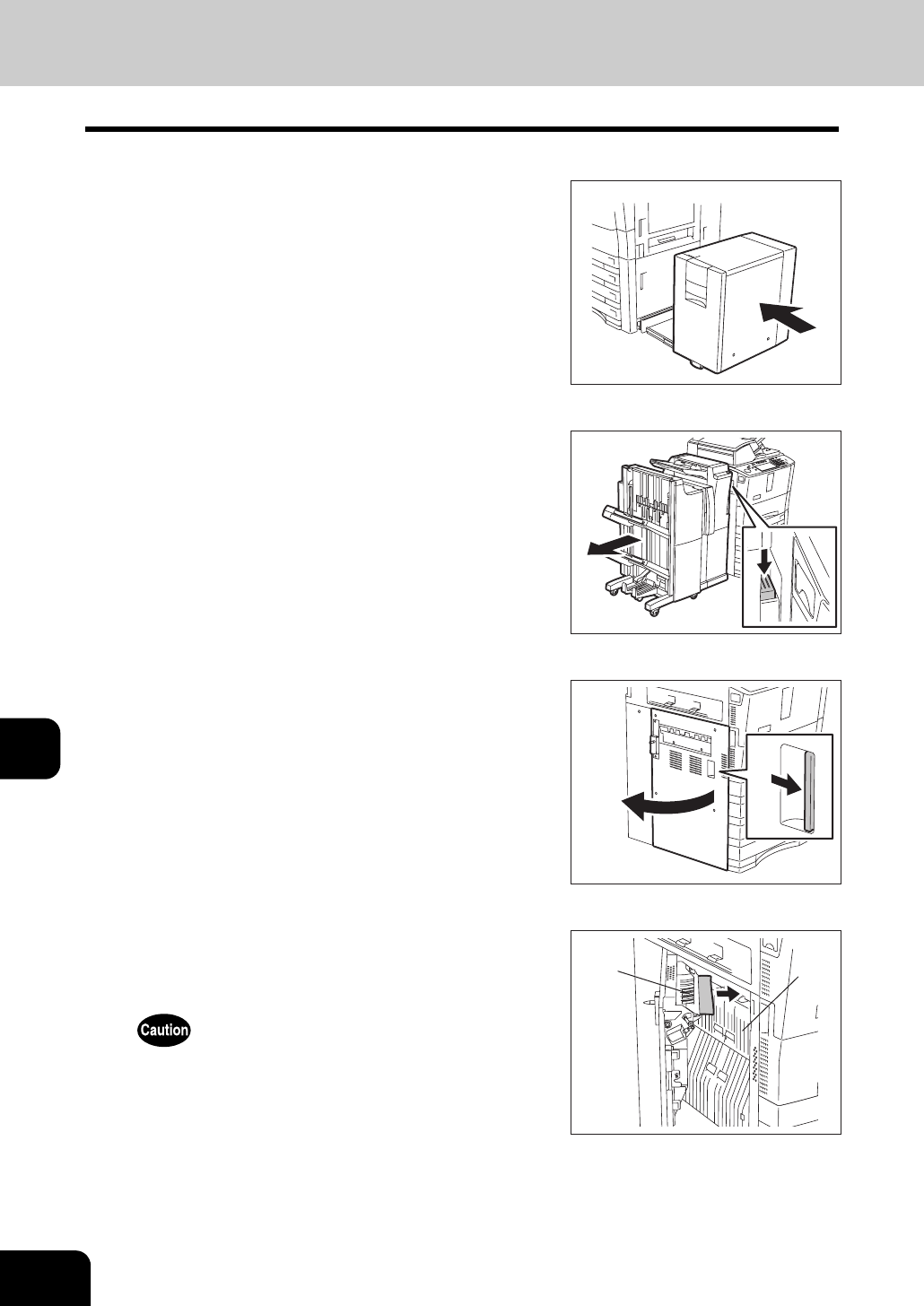

9.BLINKING GRAPHIC SYMBOLS

4.Jam Symbols (Cont.)

Install the External Large Capacity

Feeder to the equipment.

(See  P.274 for cautionary points regarding separation/

installation and moving of the options.)

While pressing the button, separate the

finishing device from the equipment.

(See  P.274 for cautionary points regarding separation/

installation and moving of the options.)

Open the exit cover.

Remove the paper from the cover side.

A: Reverse unit

B: Guide plate

Do not touch the metal area of the reverse unit and the guide plate.

It could burn you.
