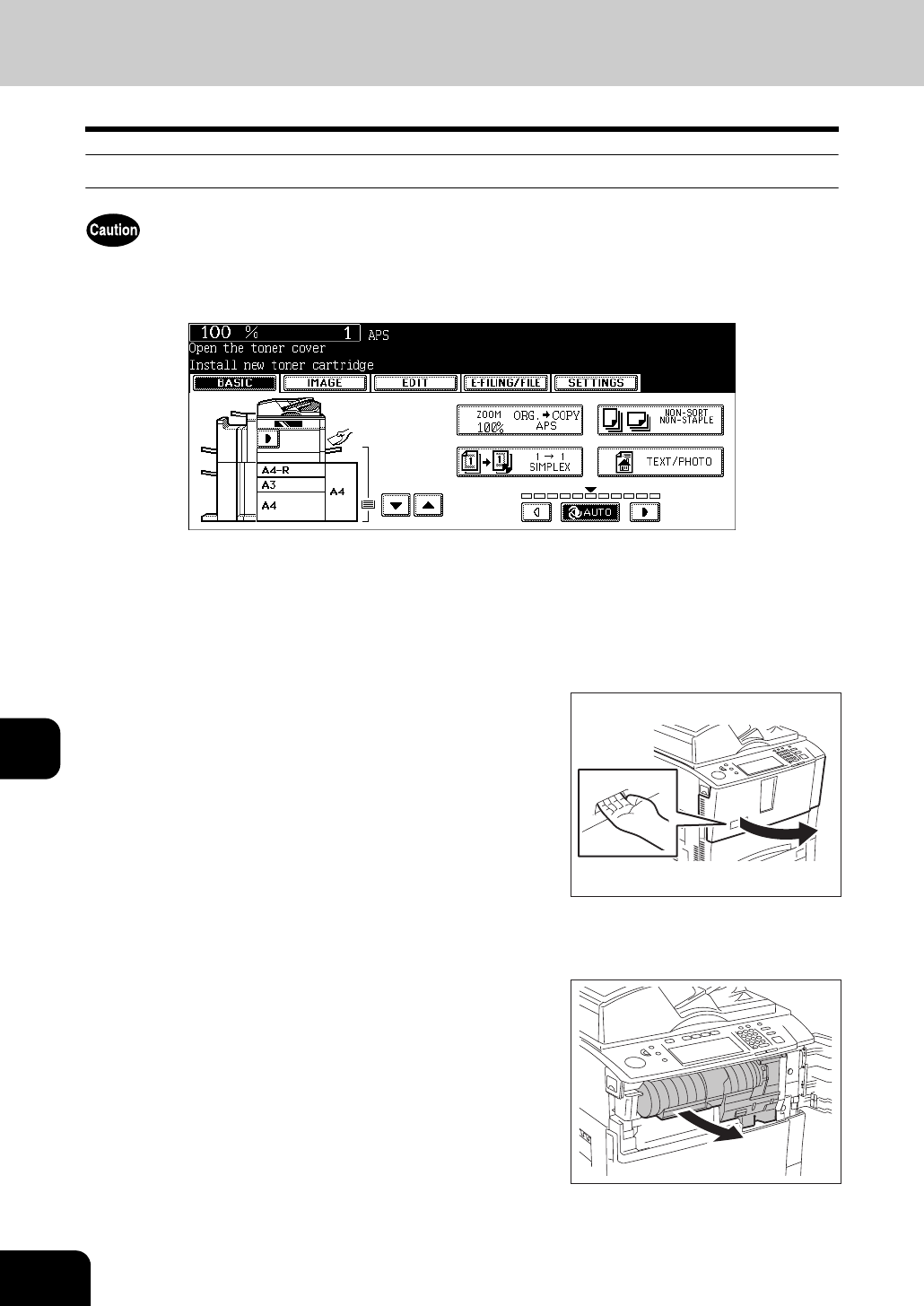

9.BLINKING GRAPHIC SYMBOLS

3. Toner-Related Symbols

Toner cover symbol

Never attempt to incinerate toner cartridges. This could cause an explosion. Do not dispose of used toner

cartridges. Your service technician will collect them.

When the toner cartridge runs out of toner, the toner cover symbol blinks, and the above message

appears.

Approx. 2000 sheets of copy are available after the toner cover symbol starts blinking. Also the toner car-

tridge can be replaced during the copy process while the toner cover symbol is blinking.

Replace the toner cartridge according to the following procedure.

Insert your fingers in the access on the

front and open the toner cover.

Pull the toner cartridge holder toward

you.
