8.JOB STATUS

4.Log List (Cont.)

Confirming job history in log list

Print log

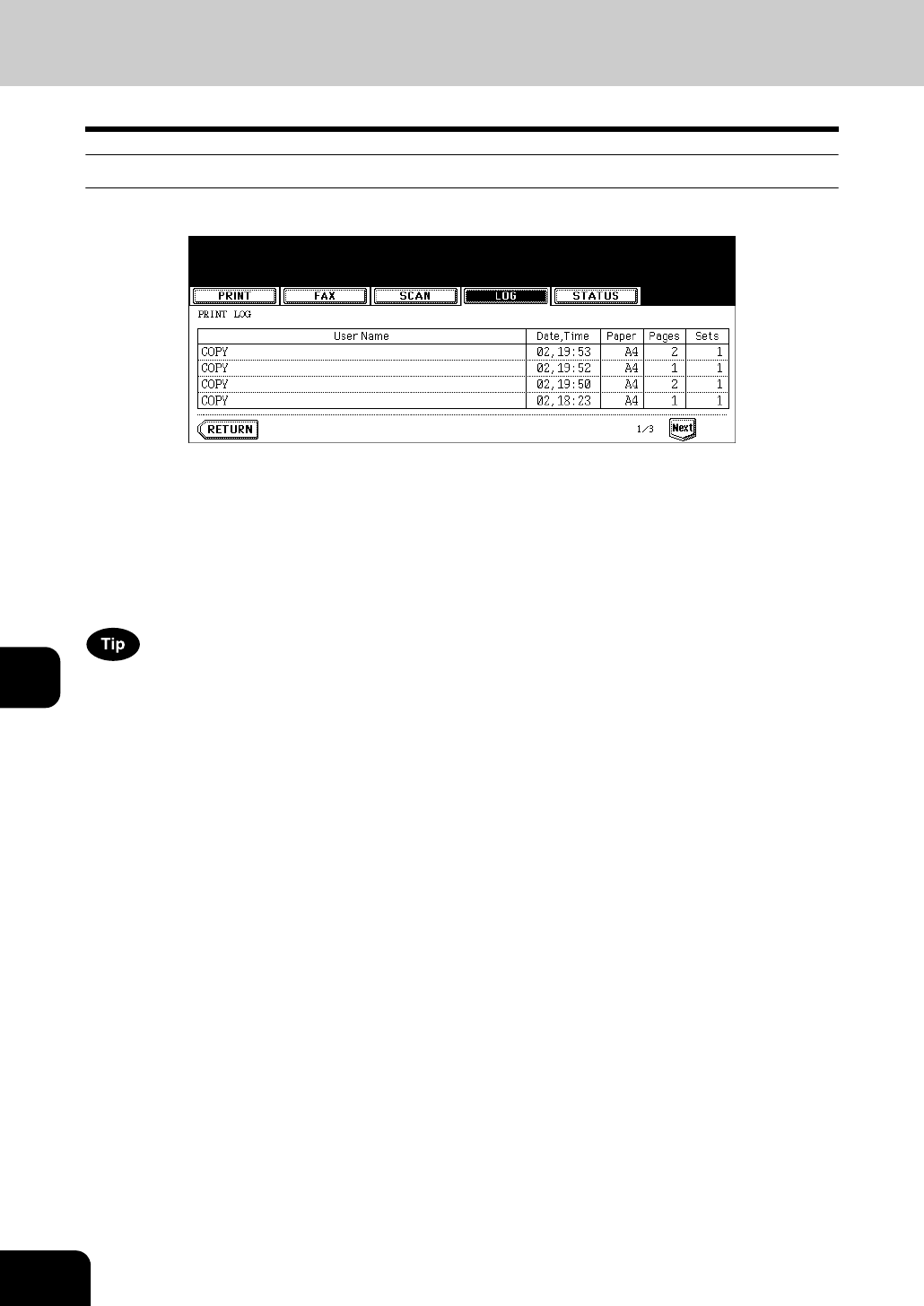

When you press the [PRINT] button on the log menu, the history of copy jobs and print jobs is displayed.

The following information is displayed.

4 jobs are displayed in 1 page. Up to 30 pages (120 jobs) can be displayed. When you want to confirm the

5th and the following jobs, press the [Next] button, and when you want to return to the previous page,

press the [Prev] button.

The following button is displayed.

[RETURN]: Press this button to return to the log menu.

User Name: Name of the senders of the copy/print job

Date, Time: Date and time the job was printed

Paper: Paper size printed

Pages: Number of pages of the copy/print job

Sets: Number of sets printed
