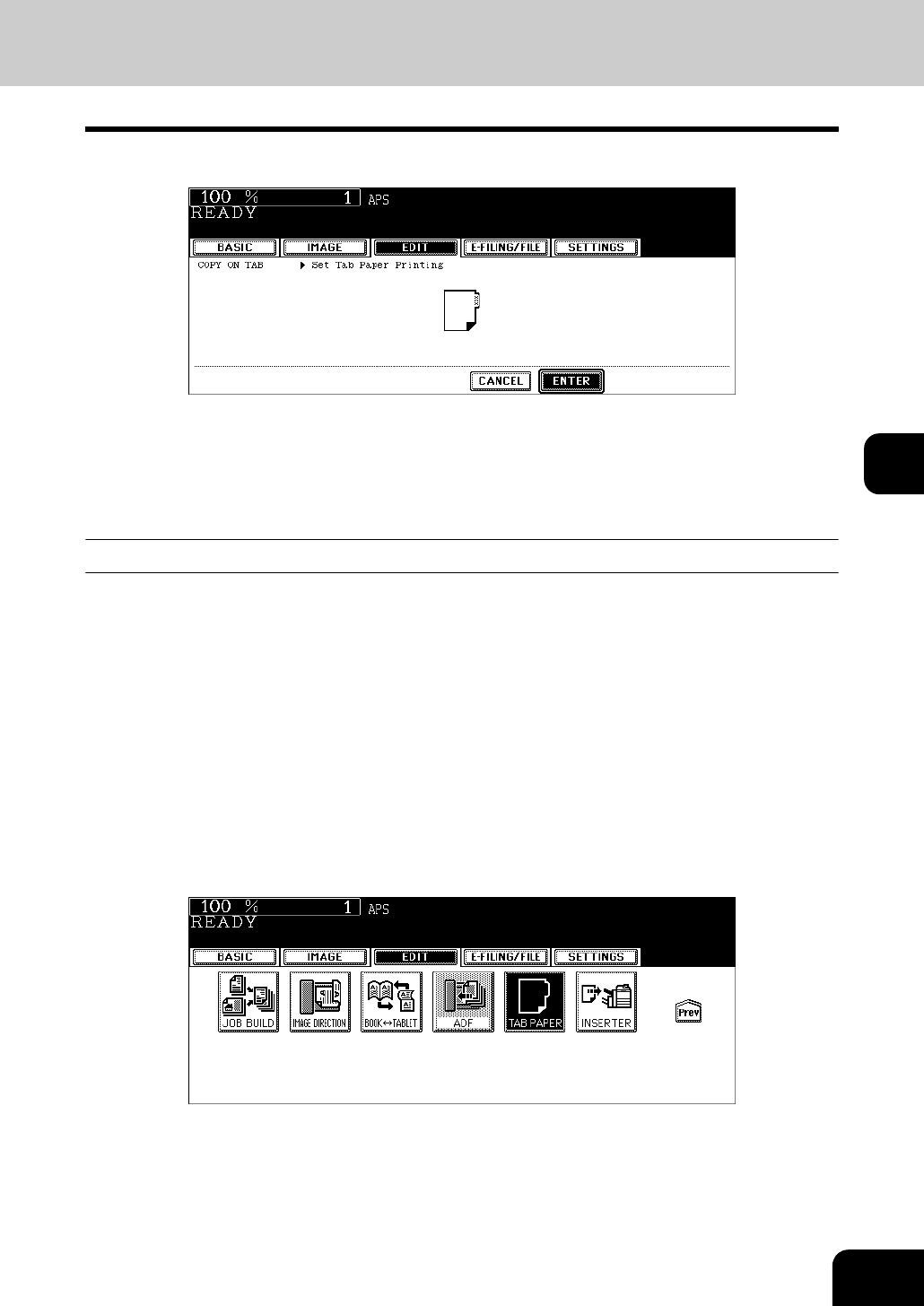

Press the [ENTER] button.

• Select other copy modes as required.

Press the [START] button.

• Copying on the tab of tab paper is started.

Tab paper insertion

The blank tab paper is inserted prior to a selected page. Up to 50 sheets of tab paper can be inserted.

• Copying on the tab of the tab paper is not performed.

• Up to 15 pages are registered in the template. ( P.201)

Place tab paper in the drawer or on the bypass tray.

• For placing tab paper in the drawer, see  P.164 “Setting tab paper in the drawer”.

• For placing tab paper on the bypass tray, see  P.165 “Setting tab paper on the bypass tray”.

Place the original(s).

Press the [EDIT] button to enter the edit menu, and then press the

[TAB PAPER] button.

• If the desired function button is not displayed, press the [Prev] or [Next] button to switch the menu.
