5.USING THE EDITING FUNCTIONS

17.TAB PAPER (Cont.)

Setting the tab width

To copy on tab paper, adjust both the tab width and the shift width for the drawer and the bypass tray

respectively. This setting is different between when the tab paper is set in the drawer and when it is set on

the bypass tray.

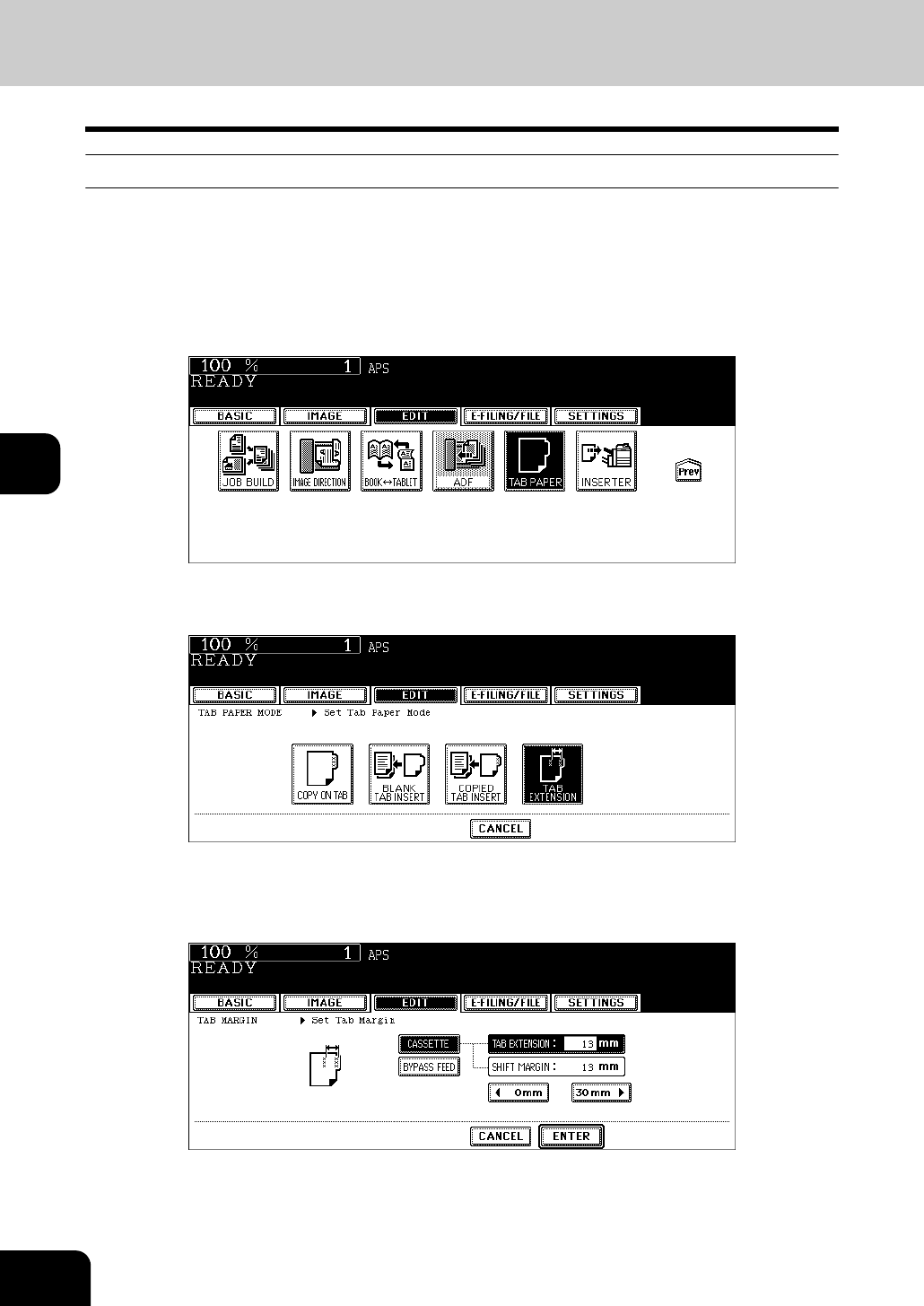

Press the [EDIT] button to enter the edit menu, and then press the

[TAB PAPER] button.

Press the [TAB EXTENSION] button.

Press the [CASSETTE] button for setting tab paper in the drawer or

the [BYPASS FEED] button for setting it on the bypass tray.
