5.USING THE EDITING FUNCTIONS

14. IMAGE DIRECTION

This function allows you to adjust the direction to ‘open to left’ when a lengthwise A3, B4 original, etc. is

copied under the mode of 1-Sided Originals to 2-Sided Copies (or 2-Sided Originals to 1-Sided Copies).

• This function is not necessary for copying in the direction of ‘open to top’.

When a 2-sided ‘open to left’ (Book) portrait A3, B4 original, etc. is copied using this function with [2-Sided

Originals to 1-Sided Copies], copies can be adjusted to the same direction.

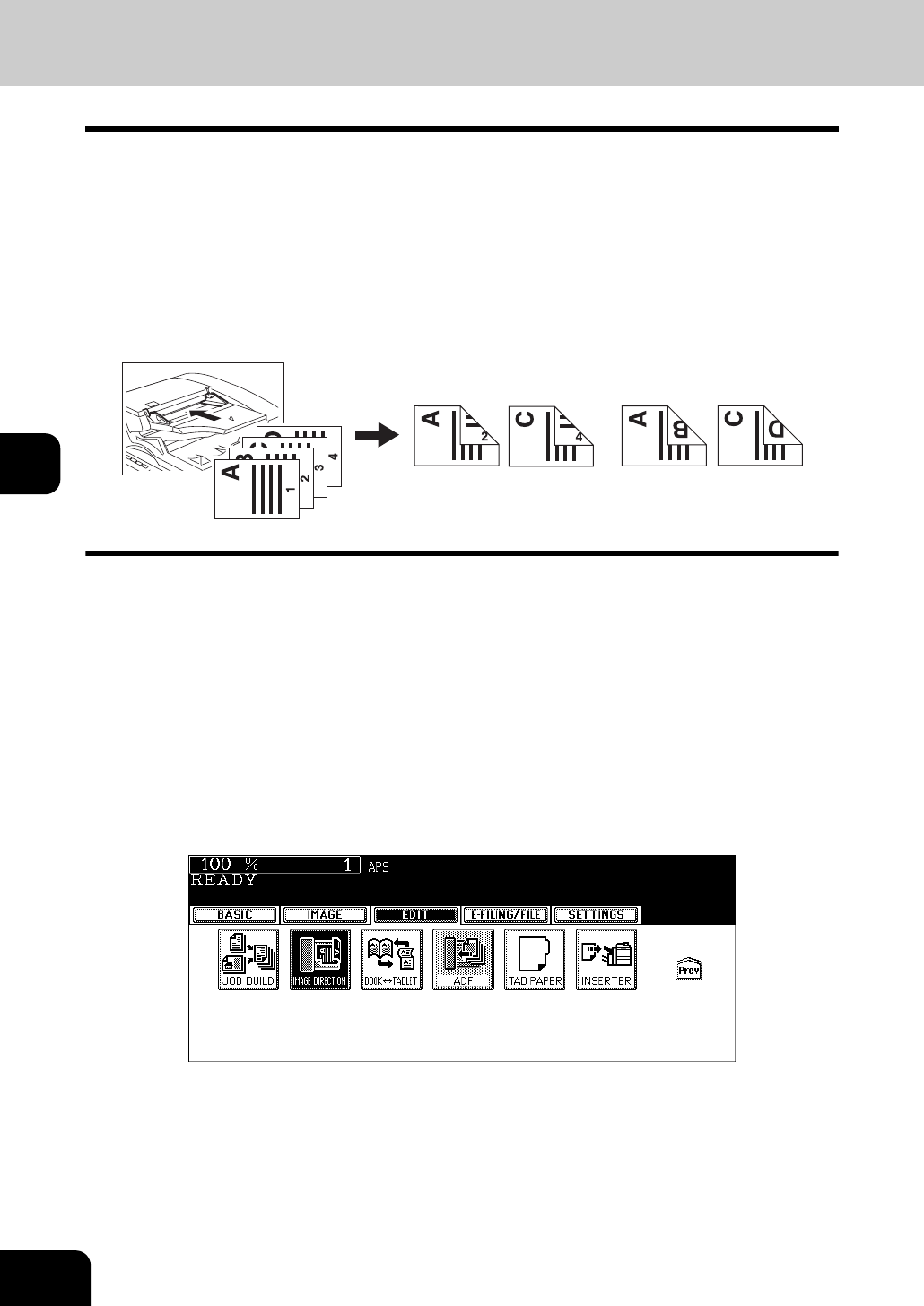

[IMAGE DIRECTION]:

1. Set

2. No setting

Place paper in the drawer(s).

Place the original(s).

Perform the setting of [1 -> 2 DUPLEX] (or [2 -> 1 SIMPLEX]).

 P.103 “4.Duplex Copying”

Press the [EDIT] button to enter the edit menu, and then press the

[IMAGE DIRECTION] button.

• The direction of the copy is adjusted by this operation.

• If the desired function button is not displayed, press the [Prev] or [Next] button to switch the menu.
