5.USING THE EDITING FUNCTIONS

10.SHEET INSERTION (Cont.)

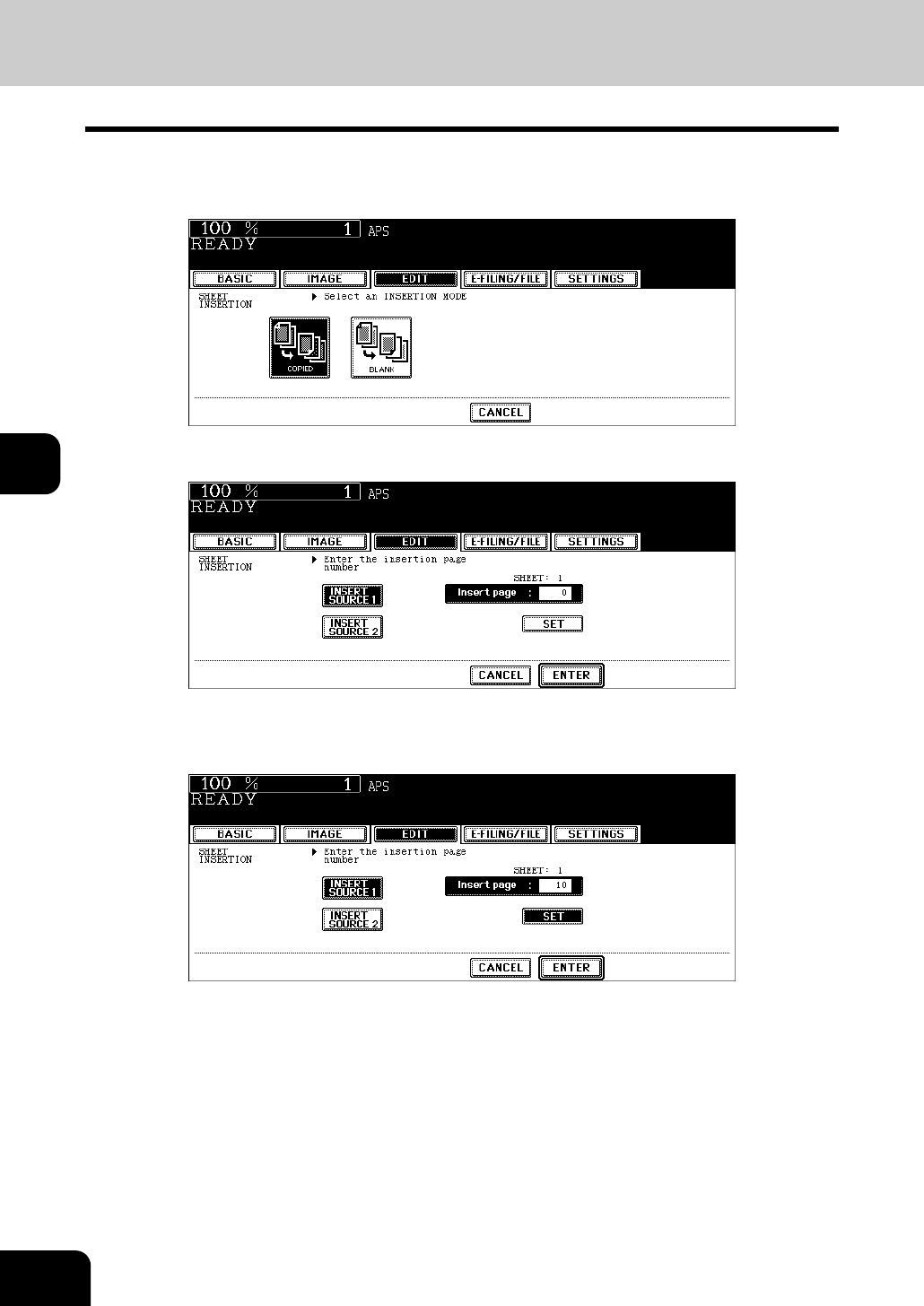

Press the [COPIED] (or [BLANK]) button.

COPIED: To insert a copied sheet into the specified page

BLANK: To insert a blank sheet into the page previous to the specified one

Press the [INSERT SOURCE 1] (or [INSERT SOURCE 2]) button.

Key in the desired page number (3 digits or less) for insertion and

press the [SET] button.

• When [COPIED] is selected on step 5, a copied sheet is inserted into the specified page. When [BLANK] is

selected, a blank sheet is inserted into the page previous to the specified one.

• Up to 50 pages can be specified for [INSERT SOURCE 1] and [INSERT SOURCE 2]. When inserting multiple

sheets one by one at specified pages, repeat steps 6 and 7. (Up to 15 pages are registered in the template.

( P.201))

After the specifying of all insertion pages is finished, press the

[ENTER] button.

• Select other copy modes as required.

Press the [START] button.
