136

5.USING THE EDITING FUNCTIONS

6.MAGAZINE SORT (Cont.)

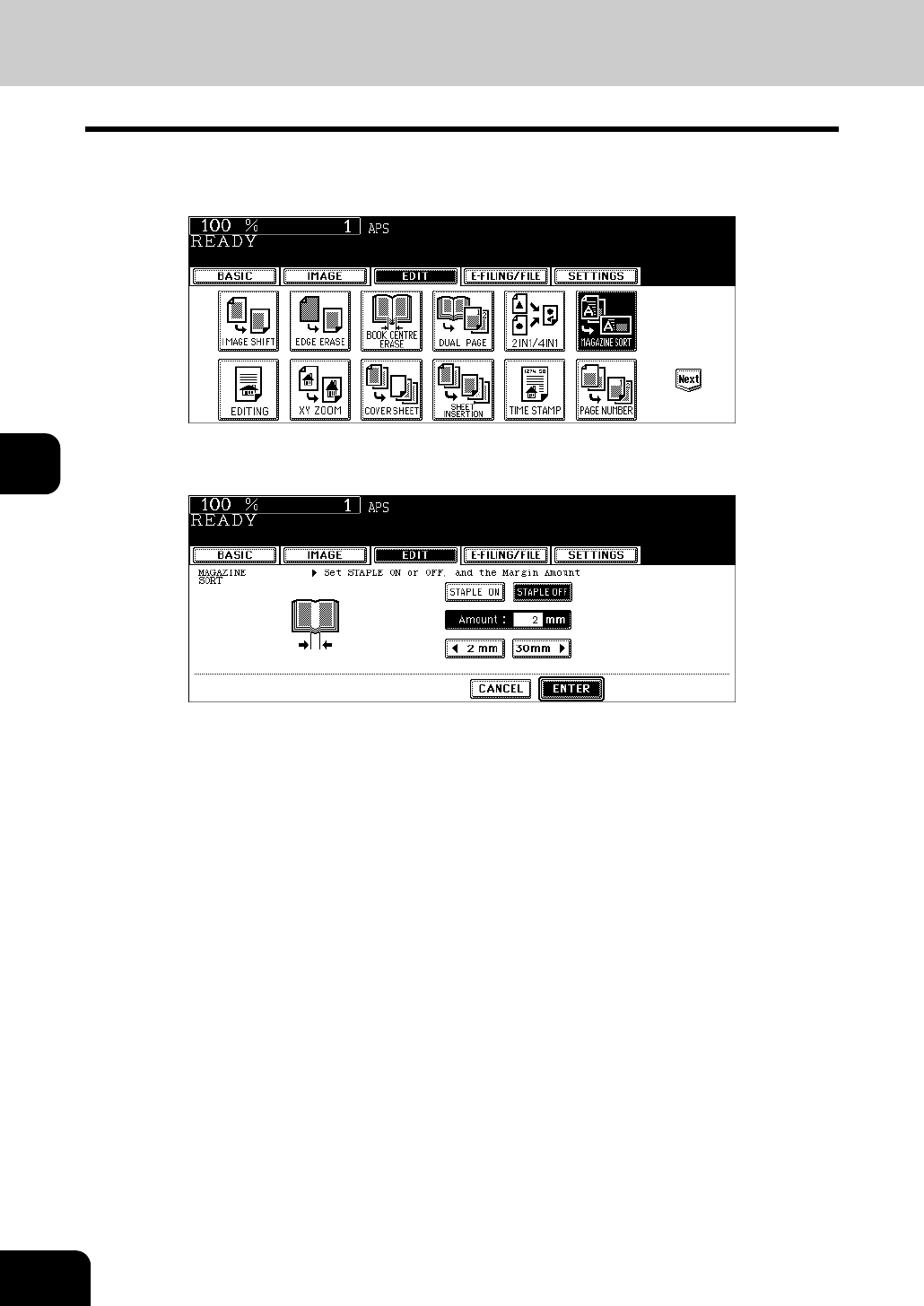

Press the [EDIT] button to enter the edit menu, and then press the

[MAGAZINE SORT] button.

Set the saddle-stitch and the binding margin.

• To staple the centre line using the Saddle Stitch Finisher (optional), press the [STAPLE ON] button. For the

maximum number of sheets that can be stapled, see  P.98 “Available conditions for saddle stitching”.

• To adjust the width, press the [2 mm] or [30 mm] button.

• The default width of the margin is 2 mm.

• Select other copy modes as required.

Press the [START] button.
