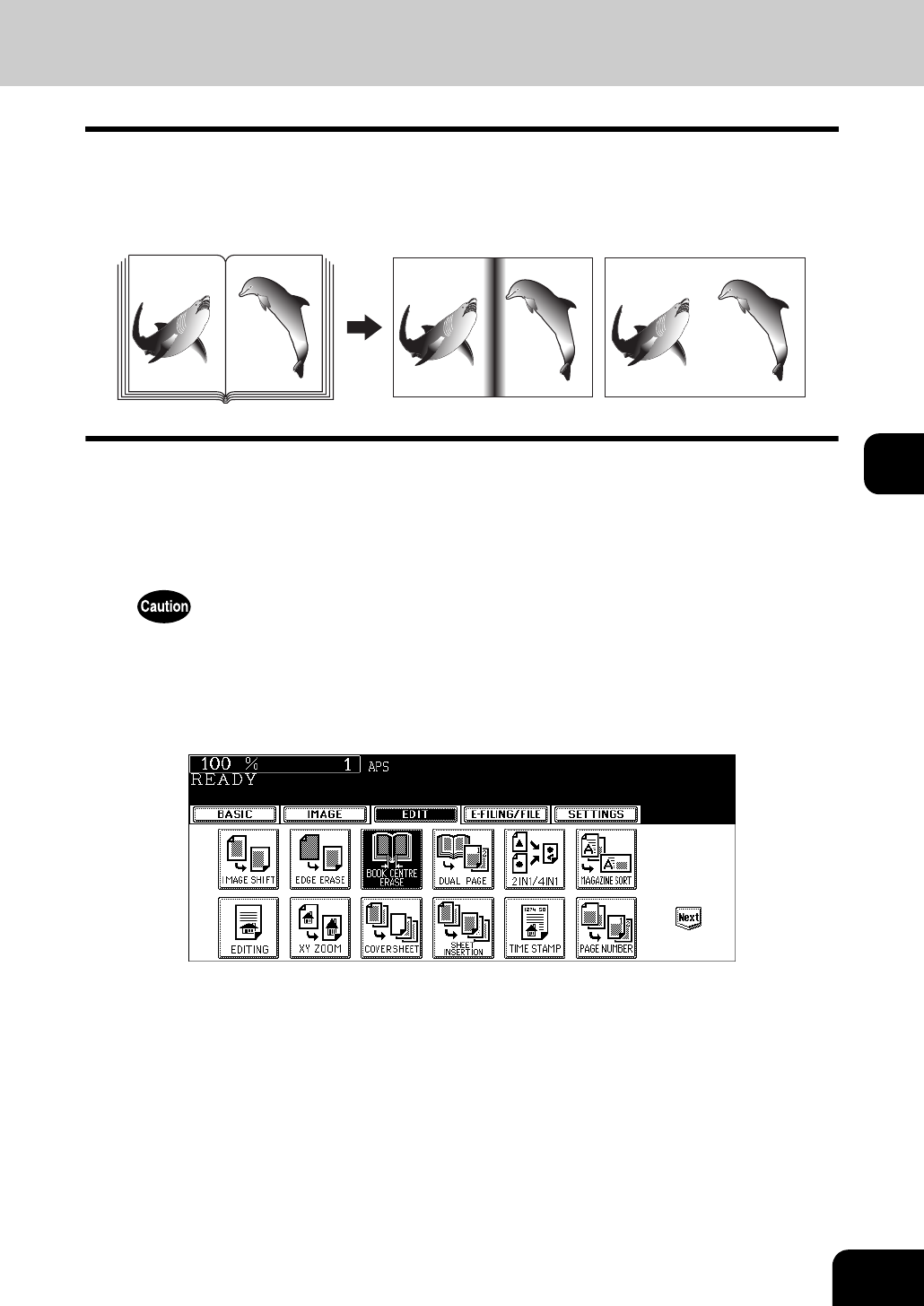

3. BOOK CENTRE ERASE

This function allows you to erase the shadow in the centre of a book original.

1. Before book centre erase is set

2. After book centre erase is set

Place paper in the drawer(s).

• When using this mode in bypass copying ( P.69), be sure to specify the paper size.

Place the original(s).

Do not place heavy objects (4 kg or more) on the original glass and do not press on it with force. Breaking the

glass could injure you.

Press the [EDIT] button to enter the edit menu, and then press the

[BOOK CENTRE ERASE] button.
