108

3.SETTING OF BASIC COPY MODES

4.Duplex Copying (Cont.)

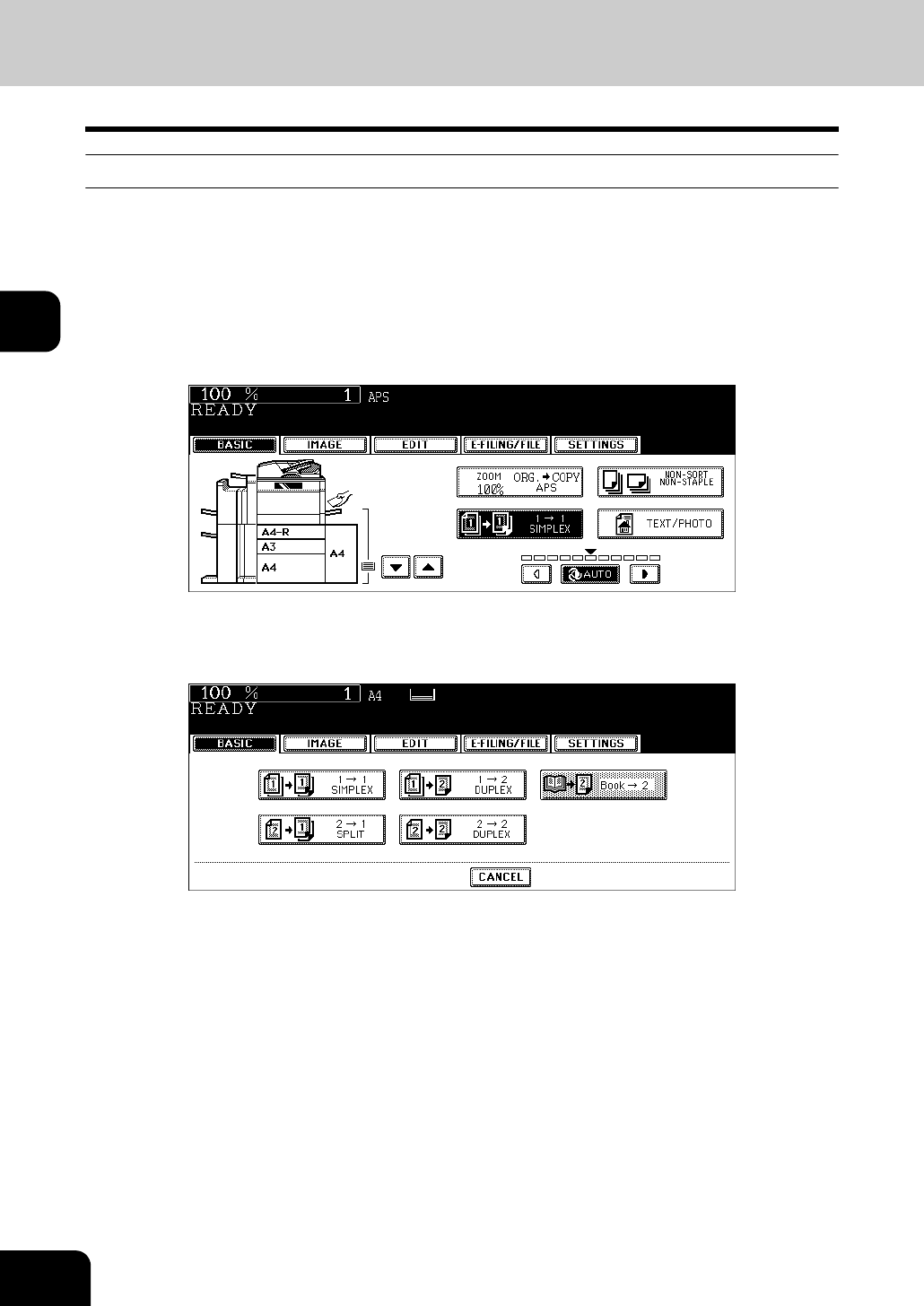

Book-type original -> 2-sided copy

You can make a booklet-type copy in the same page configuration in which the original is.

• The acceptable paper size for this function is A4 or B5 only.

Place paper in the drawer(s).

• When using this mode in bypass copying, specify the paper size in advance. ( P.69 “6.Bypass Copying”)

Press the simplex/duplex button on the basic menu.

Press the [BOOK -> 2] button.
