102

3.SETTING OF BASIC COPY MODES

3.Selecting Finishing Modes (Cont.)

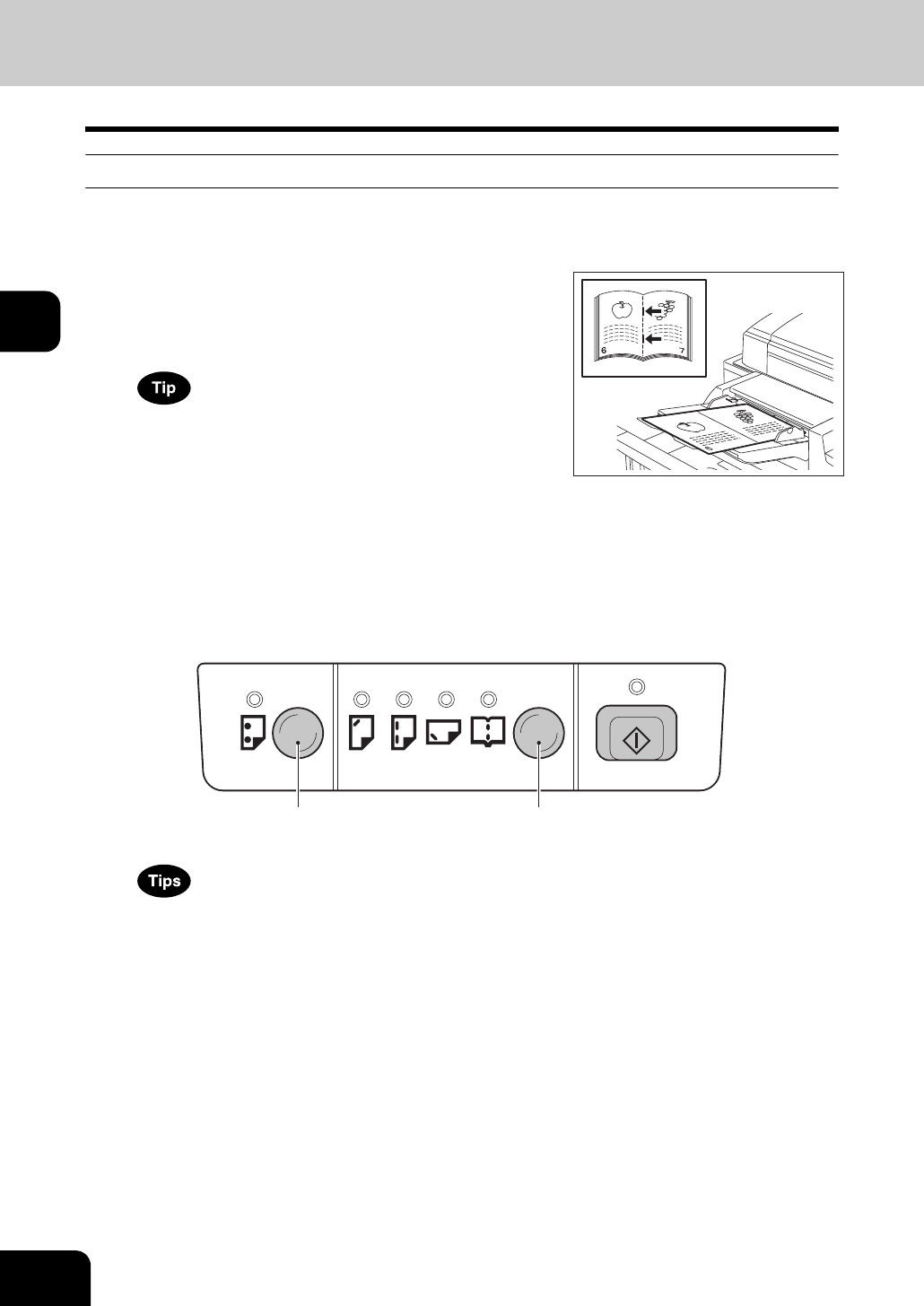

Using only staple mode or hole punch mode

When the Inserter Unit is installed, the individual operations of stapling, saddle stitching and hole punching

without the need for any copying operation are enabled. In this case, use the control panel of the Inserter

Unit.

Set each mode with the control panel of the Inserter Unit.

• When you use the hole punch mode, press the button 1 on the control panel of the unit. The hole punch mode

lamp is lit.

• When you use the staple mode or the saddle stitch mode, press the button 2 on the control panel of the unit.

The lamp for the mode you have selected is lit. Each time you press the button 2, these two modes switch

over.

• The saddle stitch mode is available only when the Saddle Stitch Finisher (optional) is installed.

• The hole punch mode and the staple mode can be used together. The hole punch mode and the saddle stitch

mode cannot be used together.

Press the [START] button on the control panel of the unit.

• The operation starts and the [START] button on the control panel of the unit blinks in green. When the opera-

tion has finished, all the lamps on the control panel of the unit go out.

Place paper on the Inserter Unit.

 P.101 “Setting paper on the Inserter Unit”

• When paper is placed on the unit, the [START] button of the unit

is lit green.

When you use the saddle stitch mode, place the sheets to be the

top and back covers of the document at the bottom of the paper.

(If paper is placed in the Inserter Unit as shown in the figure, it will

be stapled in the position indicated by the arrows.)

1 2
