Chapter 2
The Grand Tour
This chapter identifies the various components of your computer. Become familiar
with each component before you operate the computer.
Front with the display closed
Figure 2-1 shows the computer’s front with its display panel in the closed position.
Volume control Use this dial to adjust the volume of the speaker.
Headphone jack A standard 3.5 mm mini headphone jack enables connec-
tion of a stereo headphones (16 ohm minimum) or other
device for audio output. When you connect headphones,
the internal speaker is automatically disabled.
Microphone jack A standard 3.5 mm (in dia.) mini microphone jack enables
connection of a monaural microphone or other device for
audio input.

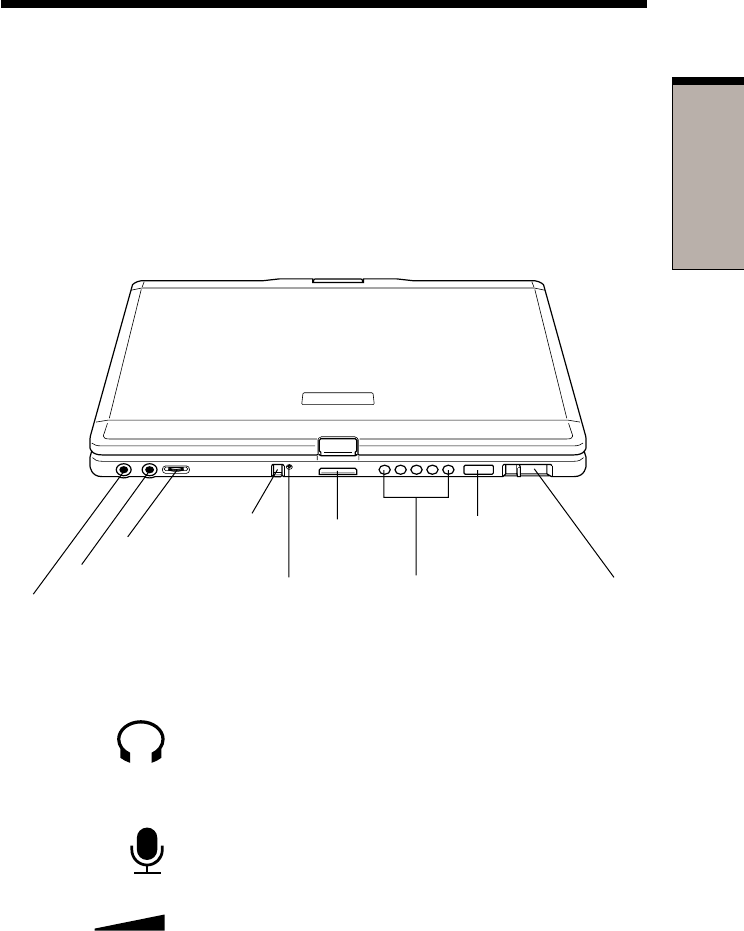

Figure 2-1 Front of the computer with the display closed
H EAD PHONE JACK
M ICROPHONE JACK
V OLUME CONTROL
B ATTERY LOCK
B ATTERY LOCK
INDICATOR
D ISPLAY LATCH
P OWER SOURCE/
S YSTEM INDICATORS
I NFRARED PORT
B ATTER
Y
RELEASE LEVER
