ProductOverview
g028166
9
2
1
5 3
4
7
2
10
8
6
11
12
g028166

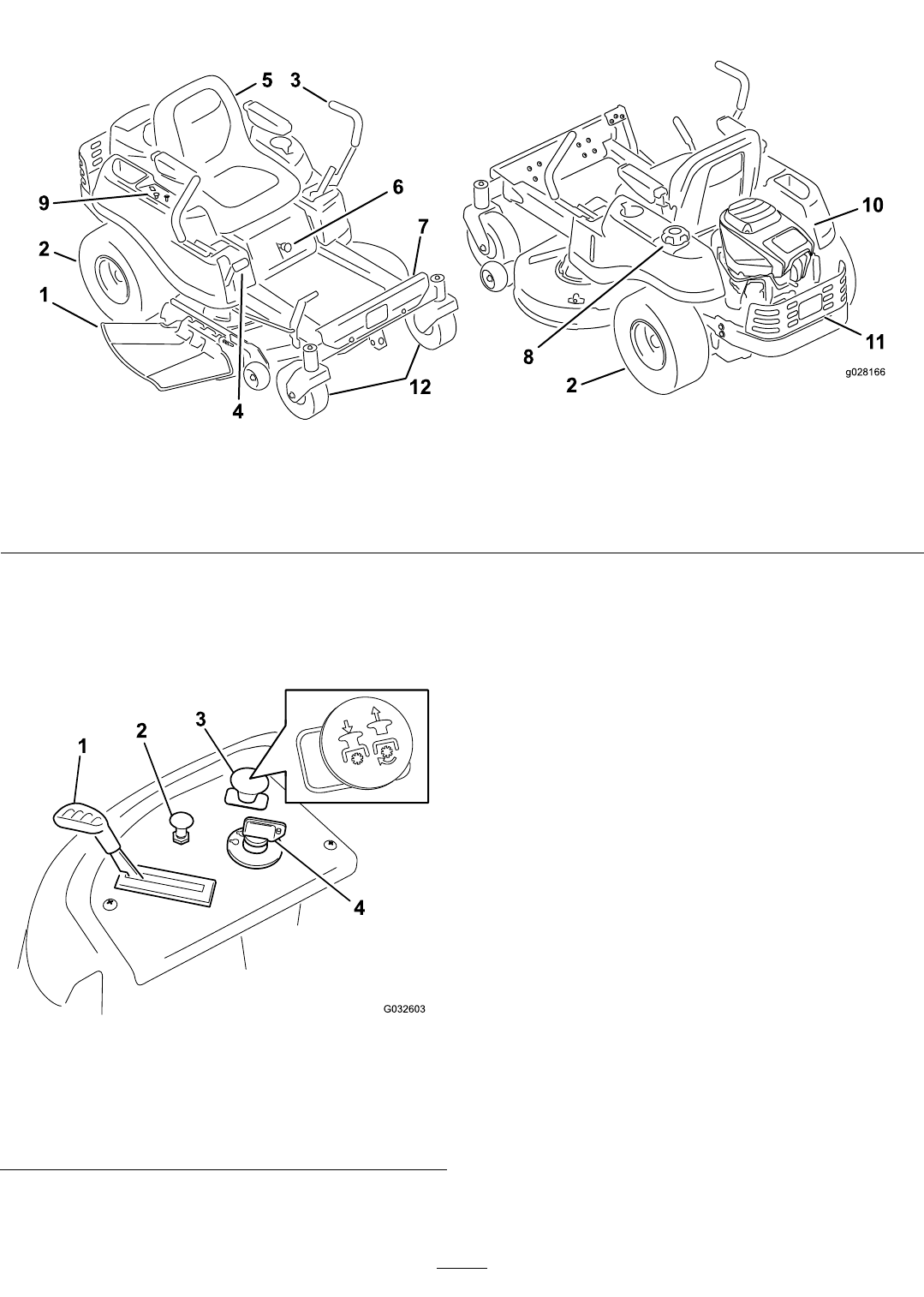

Figure5
1.Deector4.Height-of-cutlever
7.Footrest10.Engine
2.Reardrivewheel
5.Operatorseat
8.Fuel-tankcap11.Engineguard
3.Motion-controllevers
6.SmartSpeed™lever9.Controlpanel
12.Frontcasterwheel
Controls
BecomefamiliarwithallofthecontrolsinFigure5and
Figure6beforeyoustarttheengineandoperatethemachine.
g032603
Figure6
Controlpanel
1.Throttle3.Blade-controlswitch
(powertakeoff)
2.Choke
4.Ignitionswitch
IgnitionSwitch
Usethisswitchtostartthemowerengine.Ithas3positions:
START,RUN,andOFF.
ChokeControl
Usethechoketostartacoldengine.Pullthechokeknob
uptoengageit.Pushthechokeknobdowntodisengage
it(Figure6).
ThrottleControl
Thethrottlecontrolstheenginespeed,andithasa
continuous-variablesettingfromtheSLOWtoFASTposition
(Figure6).
Blade-ControlSwitch(PowerTakeoff)
Theblade-controlswitch,representedbyapower-takeoff
(PTO)symbol,engagesanddisengagespowertothemower
blades(Figure6).
14
