Addendum

g290937

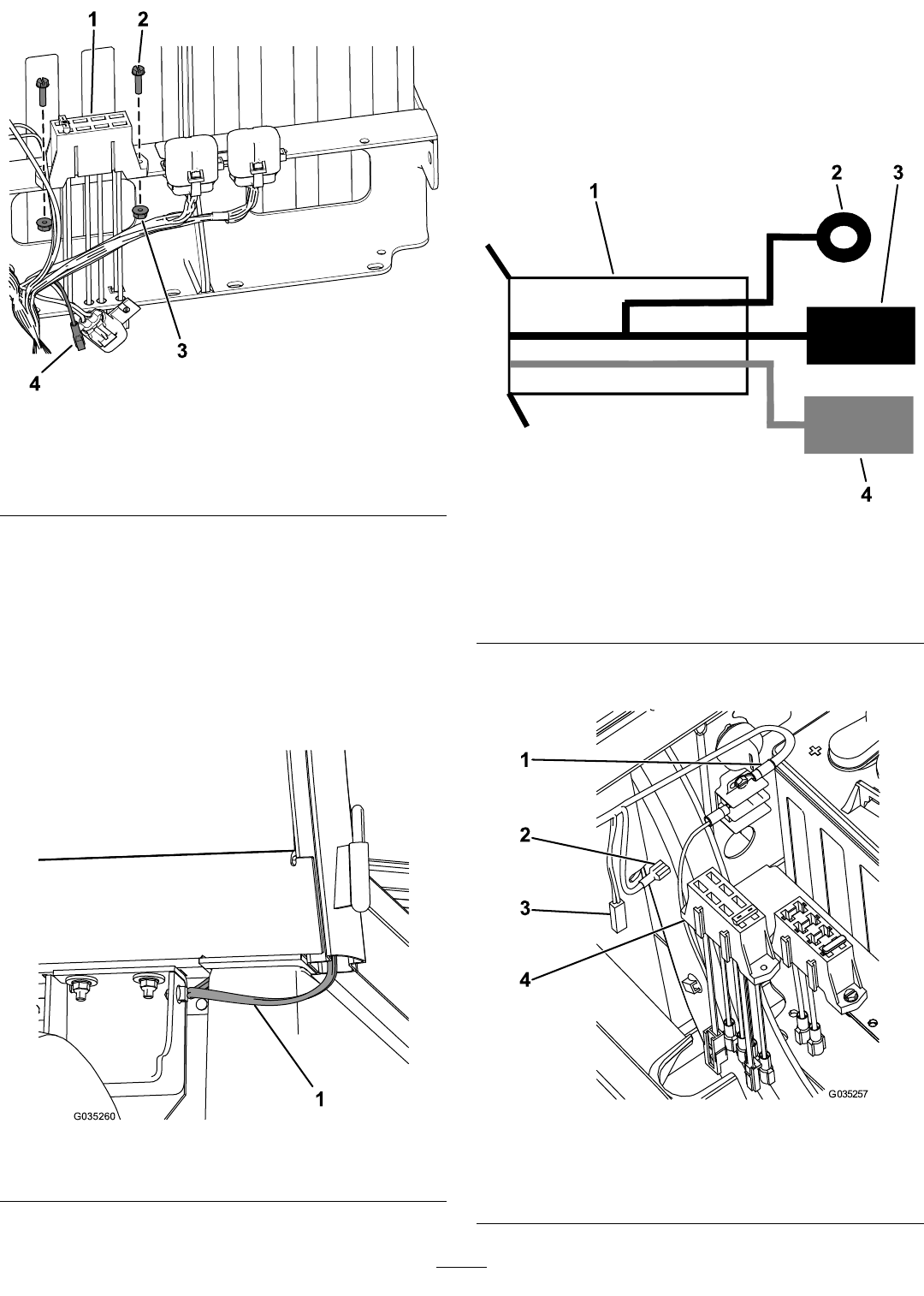

Figure1
1.Newfuseblock3.Serratednut(#10)
2.Hex-washerheadscrew
(#10x3/4inch)
4.Femaleconnector
2.FormachineswithSerialNo.403448001and
above,connectthefemaleconnectoronthe
harnesstothenewfuseblock(Figure1).
3.Connectthelargeconnectoronthenewfuse
blocktotheoptionalpowercableontheexisting
fuseblock(Figure4).
4.Routethewireharnessbehindthecaband
undertheseat,andsecurethecliponthewire
harnesstothesidepanel(Figure2).
g035260
Figure2
1.Wireharness
5.Installtheblackgroundwiretothegroundwire
onthePowerConverterKitwireharness(Figure
3).
Note:Theblackterminalringisnotused.
6.Installtheredpowerwiretothepowerwireon
thePowerConverterKitwireharness(Figure3).
g278776
Figure3
1.Cabwireharness
3.Blackgroundwirewith
spadeterminal
2.Blackgroundwirewith
terminalring(notused)
4.Redpowerwirewithspade
terminal
7.Connecttheremainingwiretothefusedwireon
thenewfuseblock(Figure4).
g035257
Figure4
1.Toground3.Totheoptionalwasher
pumpkit
2.Tothefusedwire4.Newfuseblock
