CAUTION
This product is designed for competition used ONLY. Not to be used on public roads.
This product will change the safety characteristics of the car and should not be used on public roads.
Doing so may break your local laws.
This product is to be fitted with the correct tools, protective & safety equipment. Failure to do so can lead
to possible work hazards.
This product is to be fitted by an experienced professional in a fully equipped workshop.
Refer to the vehicles original workshop service manual when disassembling the engine.
This product was specifically designed to be application specific. This is not a universal product.
If installed on any other vehicles/engines, this product may sustain damage and/or cause engine failure.
This product is to be installed when the engine is cold to prevent risk of burns.
Do not use excessive force when removing and installing parts. As this may cause damage to the parts
and related components.
Always remove the key from the cars ignition and have the negative terminal of the battery disconnected
before working on the car.
REQUIRED TOOLS
These tools are the bare minimum required for the job.
・General Engine Maintenance Tools ・Workshop Service Manual ・Voltage Tester ・Synchro Meter
・Engine Coolant
KIT CONTENTS

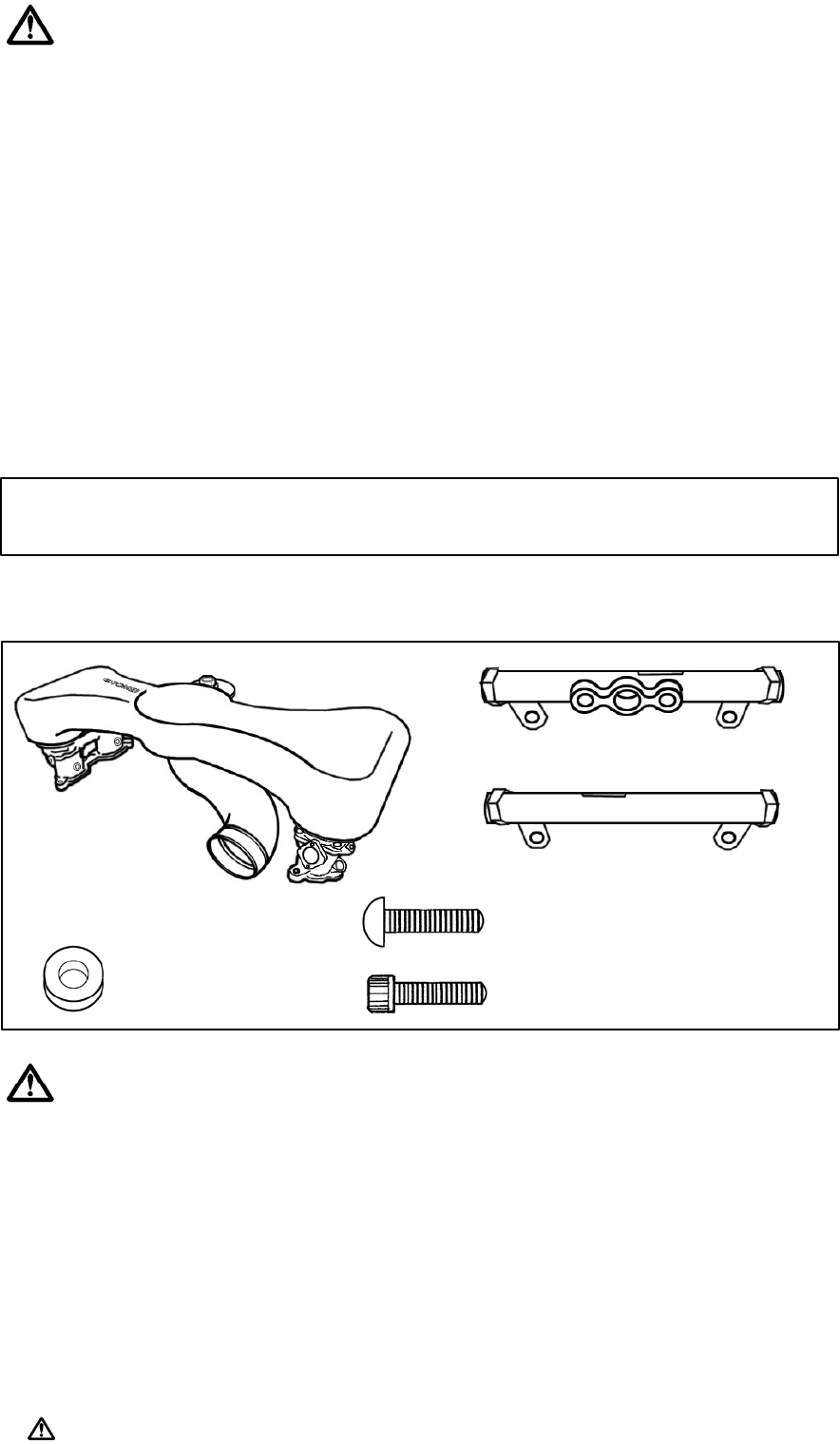

Below is the contents of this kit with the quantity listed in brackets ().
CAUTION
After installing this product, you will no longer be able to fit the stock intercooler and turbo.
You will need to organise to have custom fabricated piping and mounting alternatives for both the
Intercooler and Turbo in advance.
You will need to modify the engine harness and fuel lines when using this product.
After upgrading, you will no longer be able to use the stock ECU or the airconditioning.
You will need to prepare alternatives for these control factors in advance.
You will not be able to maintain the required negative pressure supply to the brake booster with the use
of this product. You will need to use a seperate vacuum tank (sold separately and also available from
Tomei; Part Number 193055), if you want to keep the negative pressure for your brake booster.
The brake booster will NOT be as effective if you do not maintain the negative pressure.
4 THROTTLE
SYSTEM (1)
※The throttle and Intake Plenum is
partially assembled.
FUEL RAIL (RIGHT) (1)
FUEL RAIL (LEFT) (1)
INTAKE PLENUM MOUNTING BOLTS (8)
FUEL RAIL BOLT (4)
COLLARS FOR HIGH
FLOW INJECTORS (4)
