Note: Binary control example by way of the 3P terminal
Detects the
leading edge.
Max 50 ms
200 ms
Undefined
Detects the
trailing edge.
Max 50 ms
200 ms
Undefined
Detects the
leading edge.
Max 50 ms
200 ms
Preset memory
switches.
Terminal 1
Terminal 2
Terminal 3
[Binary mode]

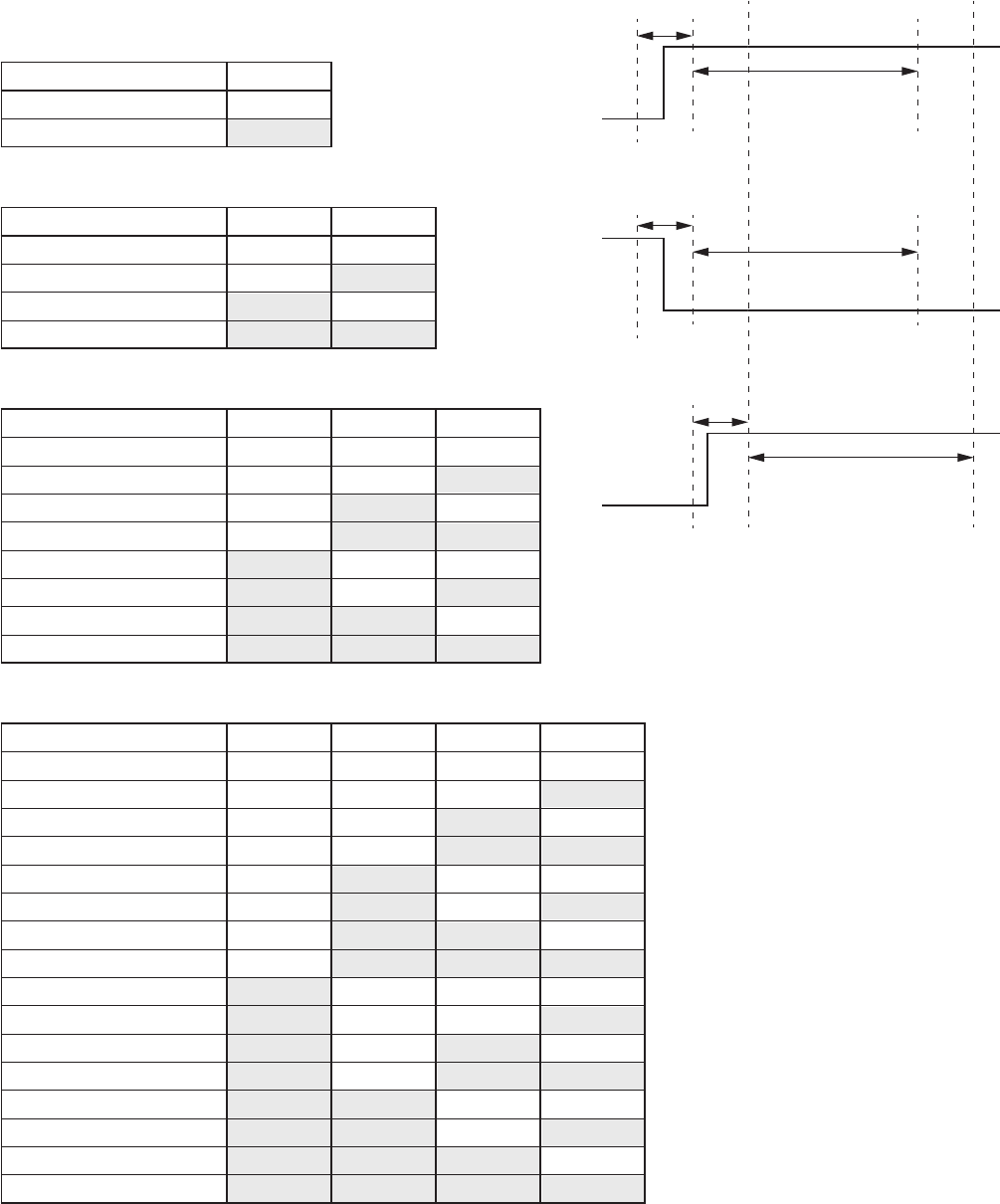

The following tables show the relationship between the
statuses to be given to the terminals and Preset memories
to be recalled.
Selecting 2 Preset memories using the terminal 4
Preset memory number Terminal 4
1 Open
2 Closed
Selecting 4 Preset memories using the terminals 3 and 4
Preset memory number Terminal 3 Terminal 4
1 Open Open
2 Open Closed
3
Closed Open
4
Closed Closed
Selecting 8 Preset memories using the terminals 2, 3, and 4
Preset memory number Terminal 2 Terminal 3 Terminal 4
1 Open Open Open
2 Open Open Closed
3
Open Closed Open
4
Open Closed Closed
5
Closed Open Open
6
Closed Open Closed
7
Closed Closed Open
8
Closed Closed Closed
Selecting 16 Preset memories using the terminals 1, 2, 3, and 4
Preset memory number Terminal 1 Terminal 2 Terminal 3 Terminal 4
1 Open Open Open Open
2 Open Open Open Closed
3
Open Open Closed Open
4
Open Open Closed Closed
5
Open Closed Open Open
6
Open Closed Open Closed
7
Open Closed Closed Open
8
Open Closed Closed Closed
9
Closed Open Open Open
10
Closed Open Open Closed
11
Closed Open Closed Open
12
Closed Open Closed Closed
13
Closed Closed Open Open
14
Closed Closed Open Closed
15
Closed Closed Closed Open
16
Closed Closed Closed Closed
To switch the Preset memory, maintain the given state for 250 ms or more after placing each terminal in the
state corresponding to the Preset memory to be recalled.
Maintain the terminal state as it is until changing the Preset memory next time.
