10
Switching hub
DP-SP3M-864D
Switching hub
DP-SP3
DP-SP3
M-864D
PC
Switching hub
DP-SP3

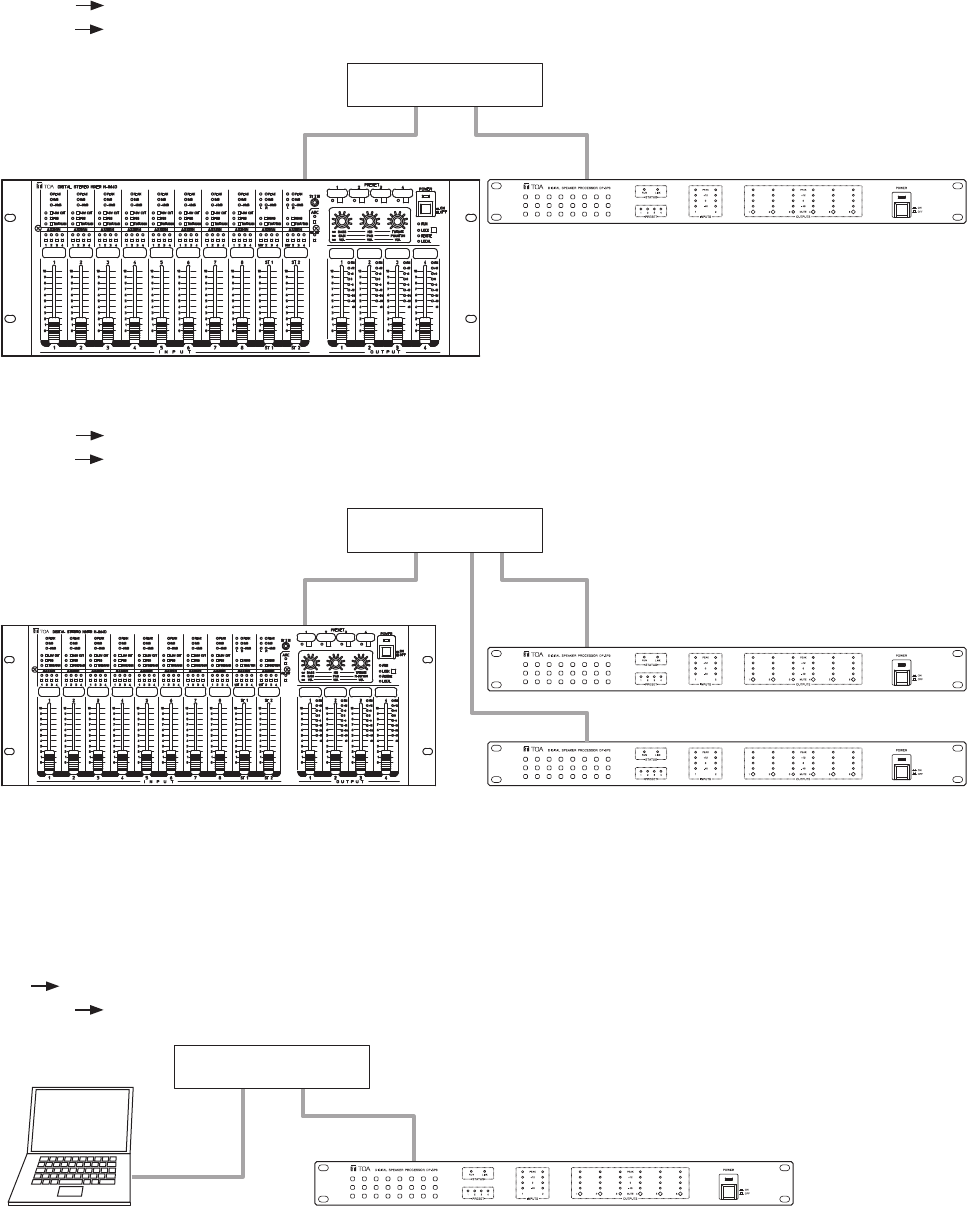

7.2. Control by the M-864D Digital Mixer
The M-864D can control up to 4 DP-SP3 units.
[Controlling a single DP-SP3]
M-864D DP-SP3:Presetmemoryrecall
DP-SP3 M-864D:Presetmemorynumberchangerequest
[Controlling multiple DP-SP3 units (up to 3 units)]
M-864D
DP-SP3:Presetmemoryrecall
DP-SP3 M-864D:Presetmemorynumberchangerequest
7.3. Control by a PC
A single PC can control up to 4 DP-SP3 units.
[Controlling a single DP-SP3]
PC DP-SP3:Presetmemoryrecall/save,Onlineedit,andMuteON/OFF
DP-SP3 PC:PresetmemorynumberchangerequestandVolumeleveldisplay
