Input Connections
Two types of input terminals are provided on the rear for input connections.
(1) 2P terminal (marked HOT, COM)
It is provided for direct input (unbalanced, 10k ohms) without using plug-in module. This terminal is
directly connected with a potentiometer inside.
(2) Plug-in module input
Select the desired module according to application.
DIRECT INPUT TERMINAL and MODULE INPUT are not usable simultaneously.

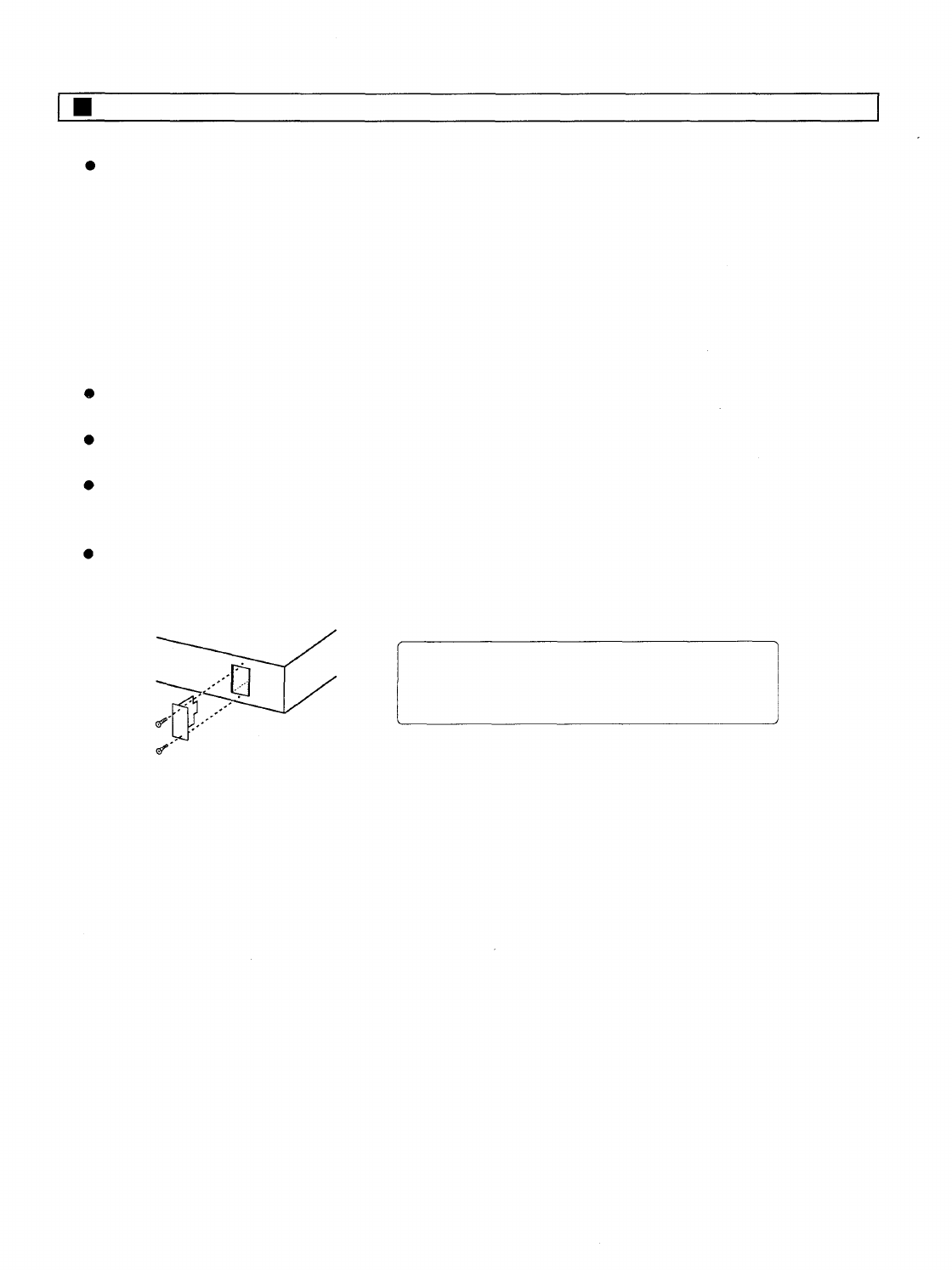

Plug the modules into the INPUT PORT, sliding it between the guide rails and secure with two screws.
When INPUT PORT is not occupied, cover the PORT with the blank panel and secure it with screws.
Be sure that INPUT-LEVEL SWITCH is in the proper position for the module used or the equipment
connected to DIRECT INPUT TERMINAL.
When the P-906MK2, P-912MK2 or P-924MK2 is used in combination with a mixer preamplifier or serves
as an incremental power amplifier, normally place INPUT-LEVEL SWITCH in "1V (0 dBV) position.
CAUTION: Modules should not be inserted or
removed while the amplifier is turned
on.
