c) Display - Place the Display in the desired viewing location. Secure Display
with the A/C Vent Clips (see Ex. 1), with the 2-sided Adhesive Strip (see Ex.
2), attached to the receiver (see Ex. 3), or the Dash-Mounting Stand (see Ex.
4).

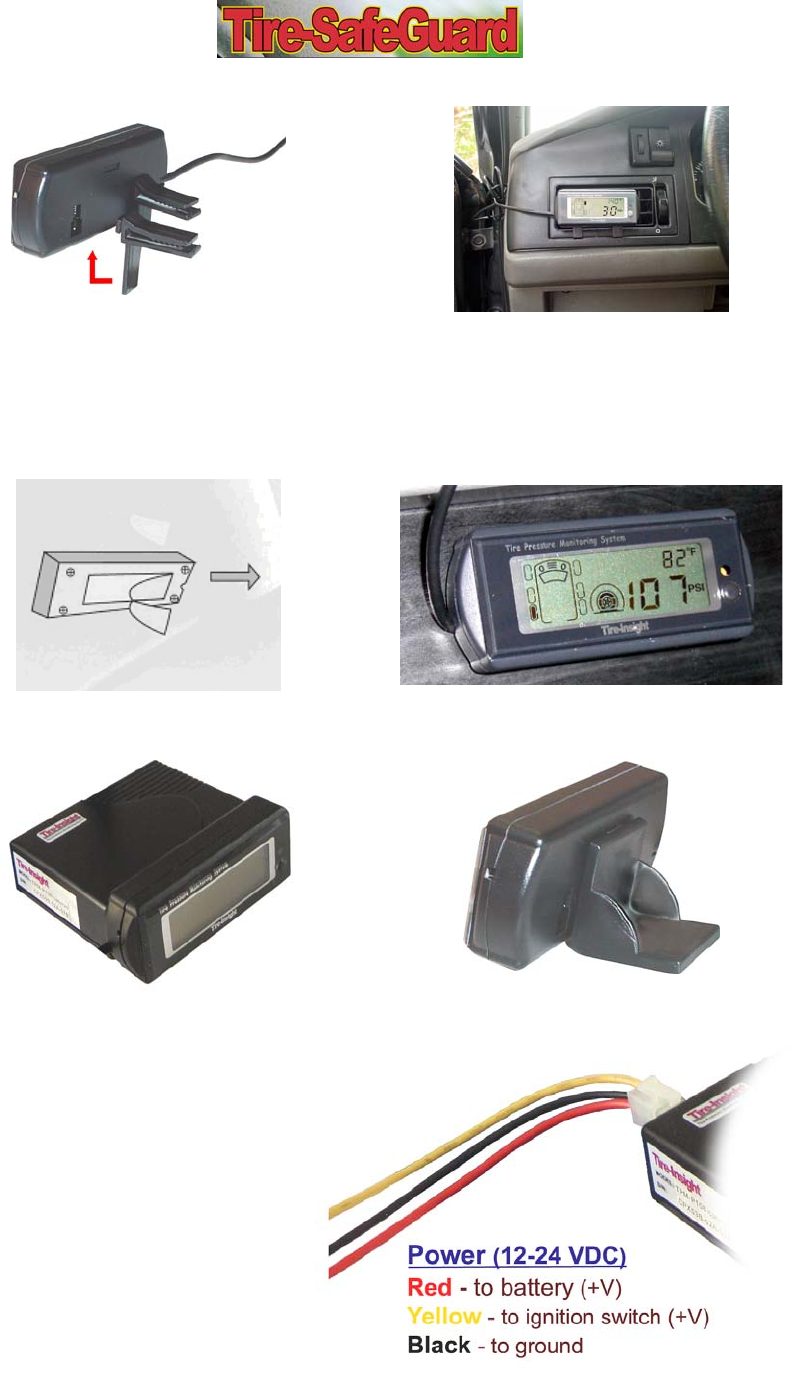

Display Installation Example 2
Display Installation Example 3 Display Installation Example 4
d) Power - Run the Power Cord
from the Receiver to an
ignition switch controllable
power source. Connect the
red wire to +12-24 VDC.
Connect the yellow wire to
the switch controllable +12-24
VDC. Connect the black wire
to ground.
Display Installation Example 1
