Instruction Manual

2
L
L
N
N
OUT
BS 7288
BS 1363-4
13A
230V
OUT
IN
IN
Pack Contents
1 RCD10WPV.
2 3.5mm diameter screws 32mm long.
1 Warning label.
1 Instruction leafl et.
1 Cable clamp and cable clamp screw.

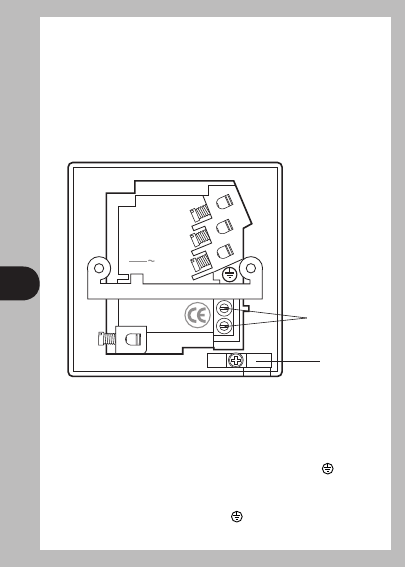

Fused Connection Unit Connections
Supply Brown (Red) (Live) to L IN.
Supply Blue (Black) (Neutral) to N IN.
Supply Bare Earth Wire, sleeved Green/ Yellow, to E
.
Load Brown (Live) to L OUT.
Load Blue (Neutral) to N OUT.
Load Green/ Yellow (Earth) to E
(one or both terminals
can be used as convenient).
Earth terminals
Cable clamp
