Installation Guide

Page 9

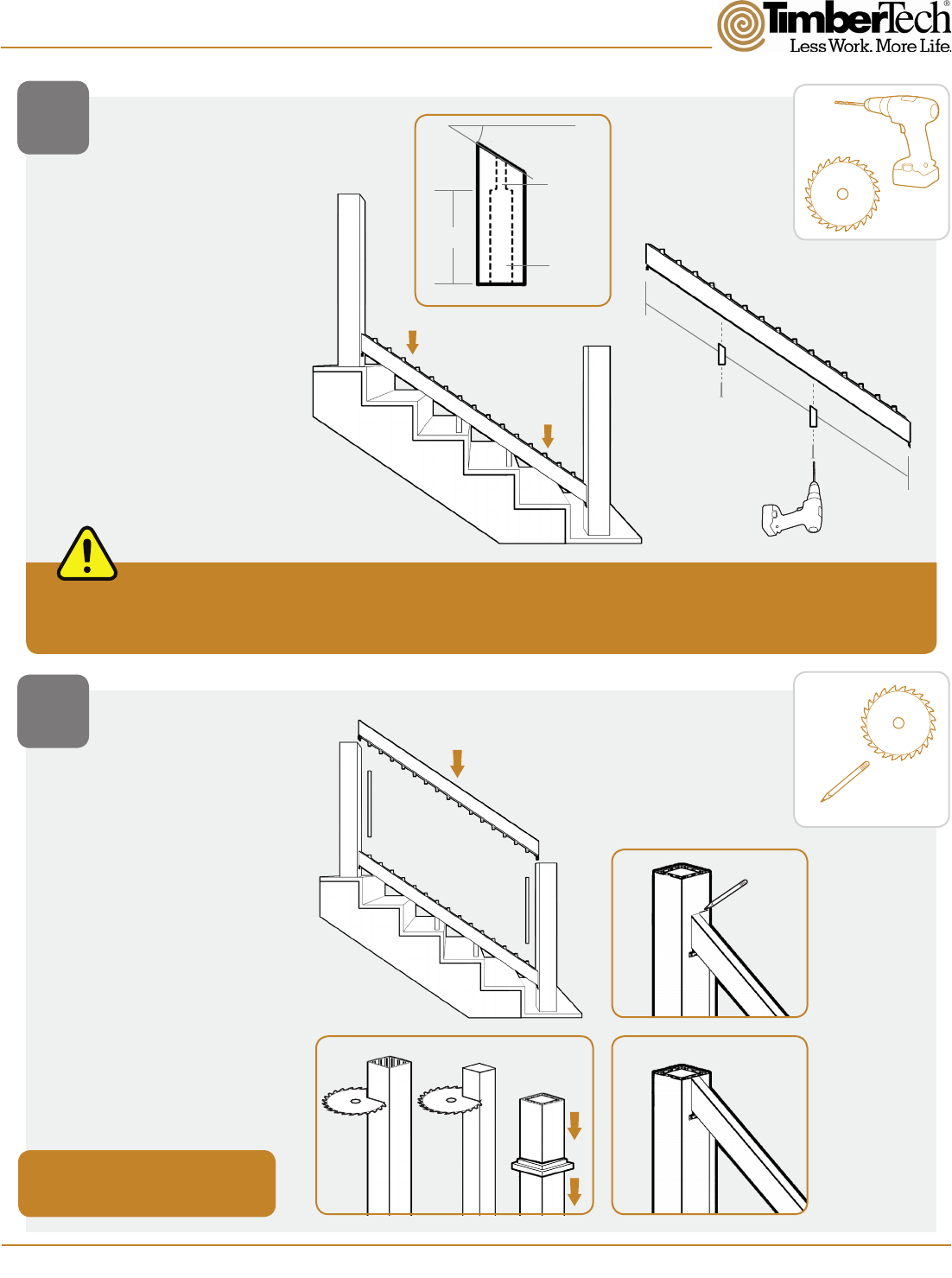

INSTALL FOOT
BLOCKS
5
6
MEASURE AND TRIM
TOP POST AND TOP
POST SLEEVE
• Temporarily place
Bottom BuilderBoard
in position and install
a Baluster on each
end. Place the Top
BuilderBoard on the
Balusters.
• Mark the top of the Top
BuilderBoard.
• Remove Post Sleeve and
trim to length, then Trim
Post to same length.
• Replace Post Sleeve and
slide on Post Skirt.
• Temporarily install
Bottom BuilderBoard.
• Prepare Foot Blocks as
shown in detail, then
place into position under
Bottom BuilderBoard,
marking their positions.
• Remove BuilderBoard,
Pre-Drill using 9/64” bit,
and attach Foot Blocks.
Post Sleeves should be flush with
Top BuilderBoard.
Bore 1/2”
Drill 3/16”
Hole
Stair Angle
2 1/2”
Pre-Drill 9/64”
into BuilderBoard
#10 x 2” Coated
Screws
For sections up to 6’: Place one Foot Block in the center of the rail
For sections 6’ to 8’: Space two Foot Blocks approximately at 1/3 intervals on the rail
1/3
1/3
1/3
Installing Evolutions Rail
TM
Builder Style Stairs
with Metal Balusters
