Installation Guide

Installing Evolutions Rail
TM
Builder Style with Metal Balusters
Page 4

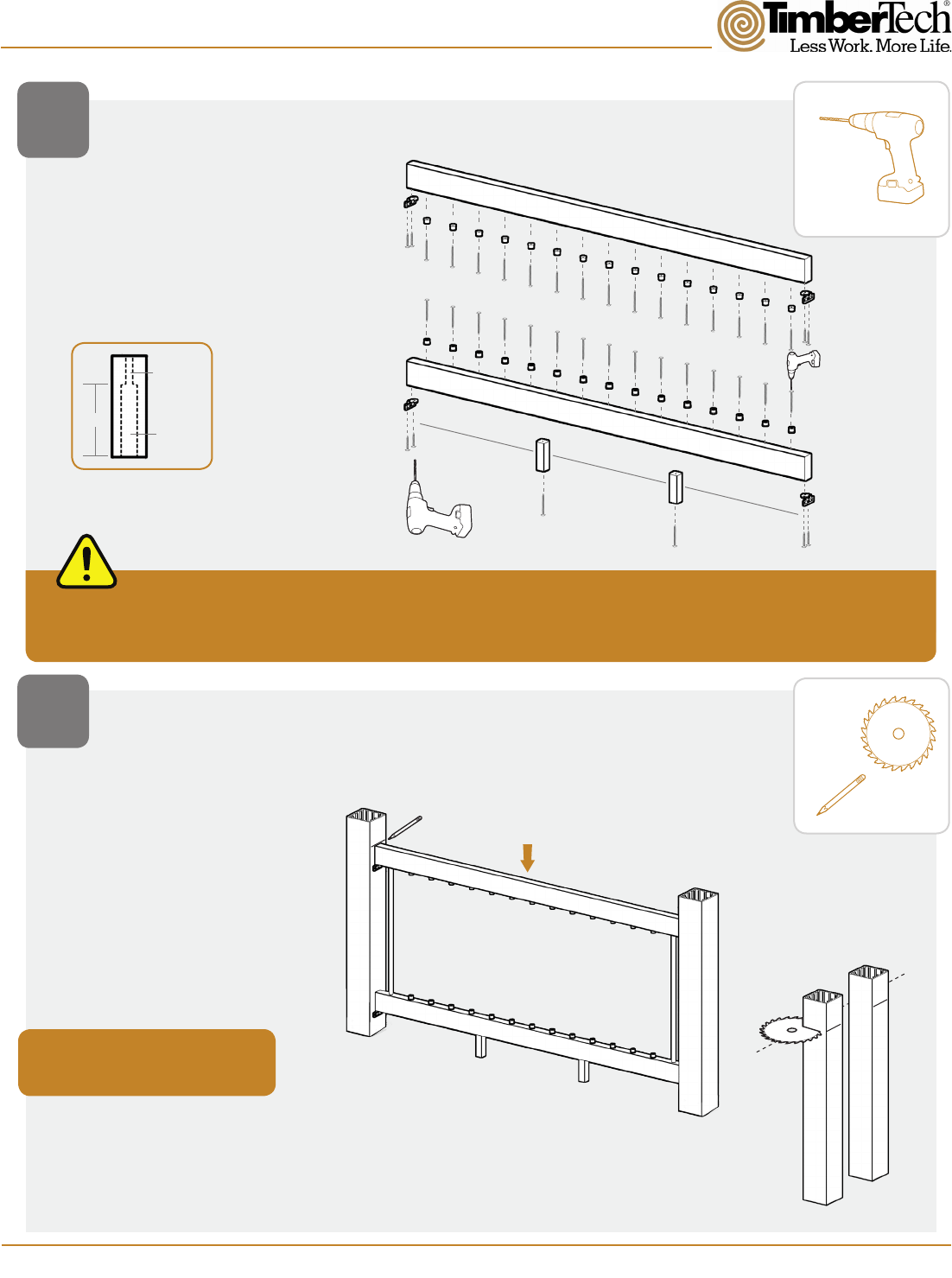

MEASURE AND TRIM
POST SLEEVES
5
• Temporarily set bottom
BuilderBoard in place
and install a Baluster
on each end. Place top
BuilderBoard on top of
the Balusters.
• Mark the top of the top
BuilderBoard on the Post
Sleeves.
• Slide Post Sleeves
off Posts and cut to
appropriate length.
Post Sleeves should be flush with
the Top BuilderBoard.
4
ATTACH BALUSTER
CONNECTORS, HINGE
BRACKETS, AND FOOT BLOCKS
• Pre-Drill 9/64” holes at
Baluster marks roughly
2” deep.
Bore 1/2”
Drill 3/16”
Hole
2 1/2”
Foot Block Preparation
Pre-Drill 9/64”
#10 x 2” Coated Screws
Pre-Drill 9/64” into
BuilderBoard
#10 x 2” Coated Screws
1/3
1/3
1/3
Pre-Drill 9/64”
#10 x 7/8” Coated
Screws
For sections up to 6’: Place two Foot Blocks at 1/3 intervals on the rail.
For sections 6’ to 8’: Space three Foot Blocks approximately at 1/4 intervals on the rail.
