INSTALL FOOT
BLOCKS
5
6

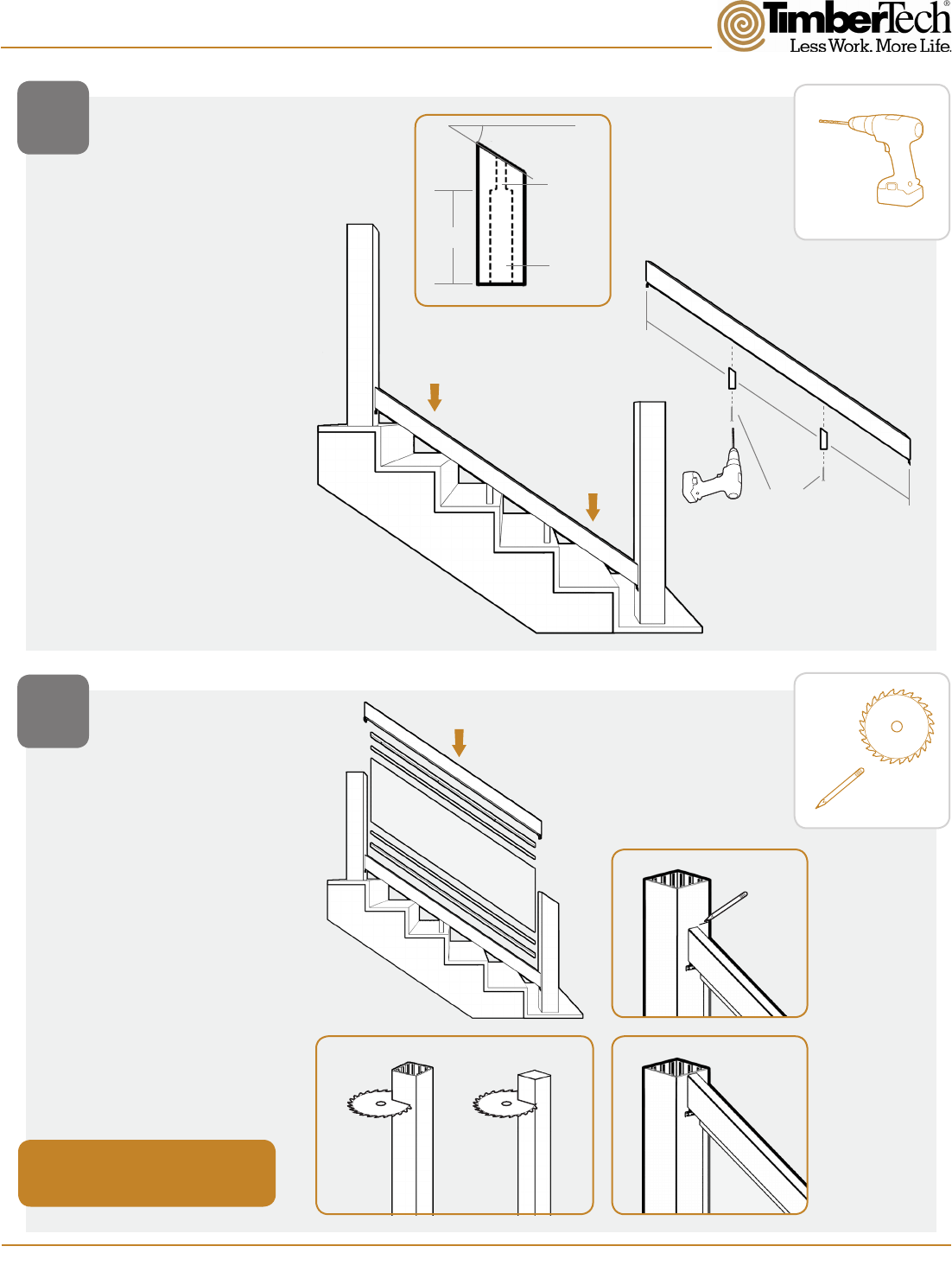

MEASURE AND TRIM
TOP POST AND TOP
POST SLEEVE
• Temporarily install
infill from bottom up:
Bottom BuilderBoard
assembly, Bottom
Glass Channel, Gasket,
glass panel, Gasket,
Top Glass Channel, Top
BuilderBoard assembly.
• Mark the top of the Top
BuilderBoard.
• Remove Post Sleeve and
trim to length, then Trim
Post to same length and
replace Post Sleeve.
• Temporarily install
Bottom BuilderBoard.
• Place Foot Blocks in
position under Bottom
BuilderBoard, marking
their locations.
• Remove BuilderBoard,
Pre-Drill using 9/64” bit,
and cut and attach Foot
Blocks.
Post Sleeves should be flush with
top BuilderBoard.
Bore 1/2”
Drill 3/16”
Hole
Stair Angle
~2’
~2’
~2’
2 1/2”
Pre-Drill BuilderBoard 9/64”
#10 x 2” Coated Screws
Installing Evolutions Rail
