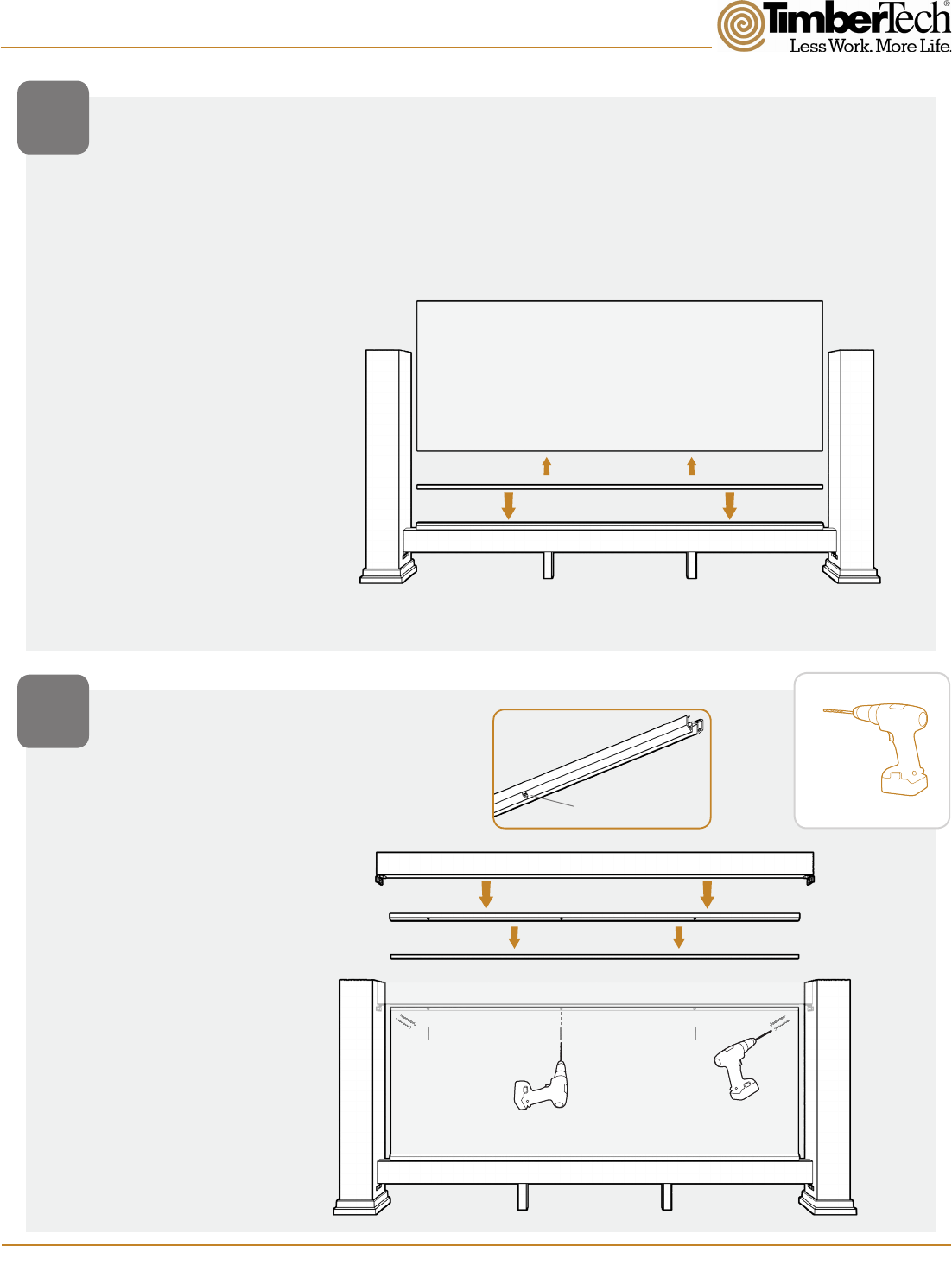

INSTALL GASKET AND
GLASS PANEL
8
9
INSTALL TOP GASKET, TOP
GLASS CHANNEL, AND TOP
BUILDERBOARD
• Fit Gasket onto top of
glass panel, followed by
the Top Glass Channel.
• Place Top BuilderBoard
over glass panel
assembly and secure.
• Secure
• Fit Bottom Gasket onto
bottom of glass panel
and fit assembly into
channel in Bottom Glass
Channel.
Pre-Drill 9/64”
#10 x 2” Coated Screws
Pre-Drill 7/64”
#8 x 2 1/4” Coated Screws
Top Glass Support Extrusion:
Pre-drilled holes are on side
