Installation Guide

Installing Evolutions Rail
TM
Builder Style with Glass Infill
Page 15
TRIM GASKETS AND
GLASS CHANNELS
4
5

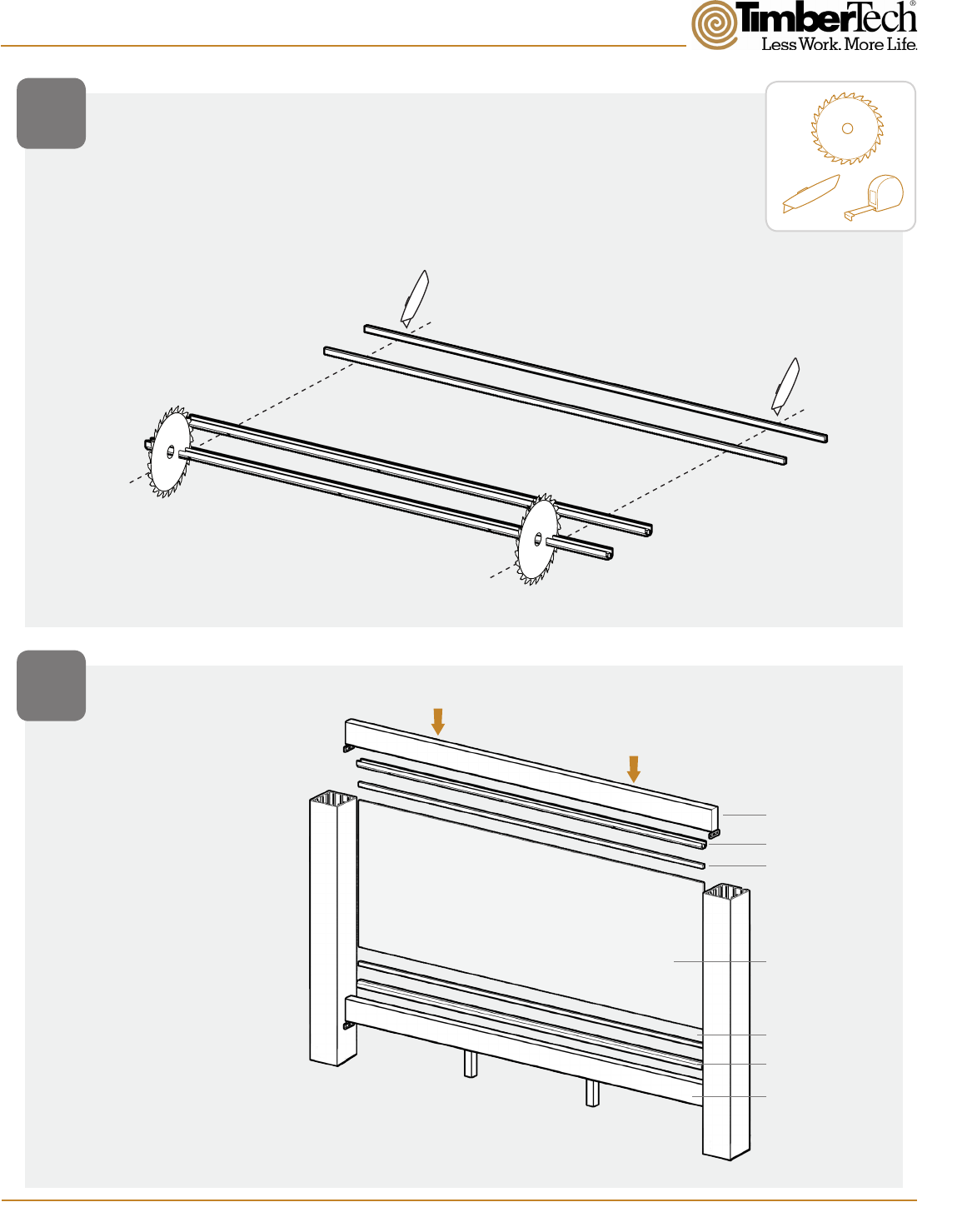

TEMPORARILY
ASSEMBLE INFILL
• To find height of Post
Sleeve cuts, temporarily
fit together infill as
shown. Do NOT screw
anything together.
• Using BuilderBoard
length as reference,
cut Gaskets and Glass
Support Extrusions to
length.
Cut Rubber Gaskets with
utility knife
Top BuilderBoard Assembly
Top Glass Channel
Top Rubber Gasket
Glass Panel
Bottom Rubber Gasket
Bottom Glass Channel
Bottom BuilderBoard
Assembly
