Installation Guide

Installing Evolutions Rail
TM
Builder Style with Glass Infill
Page 14
1 2
3

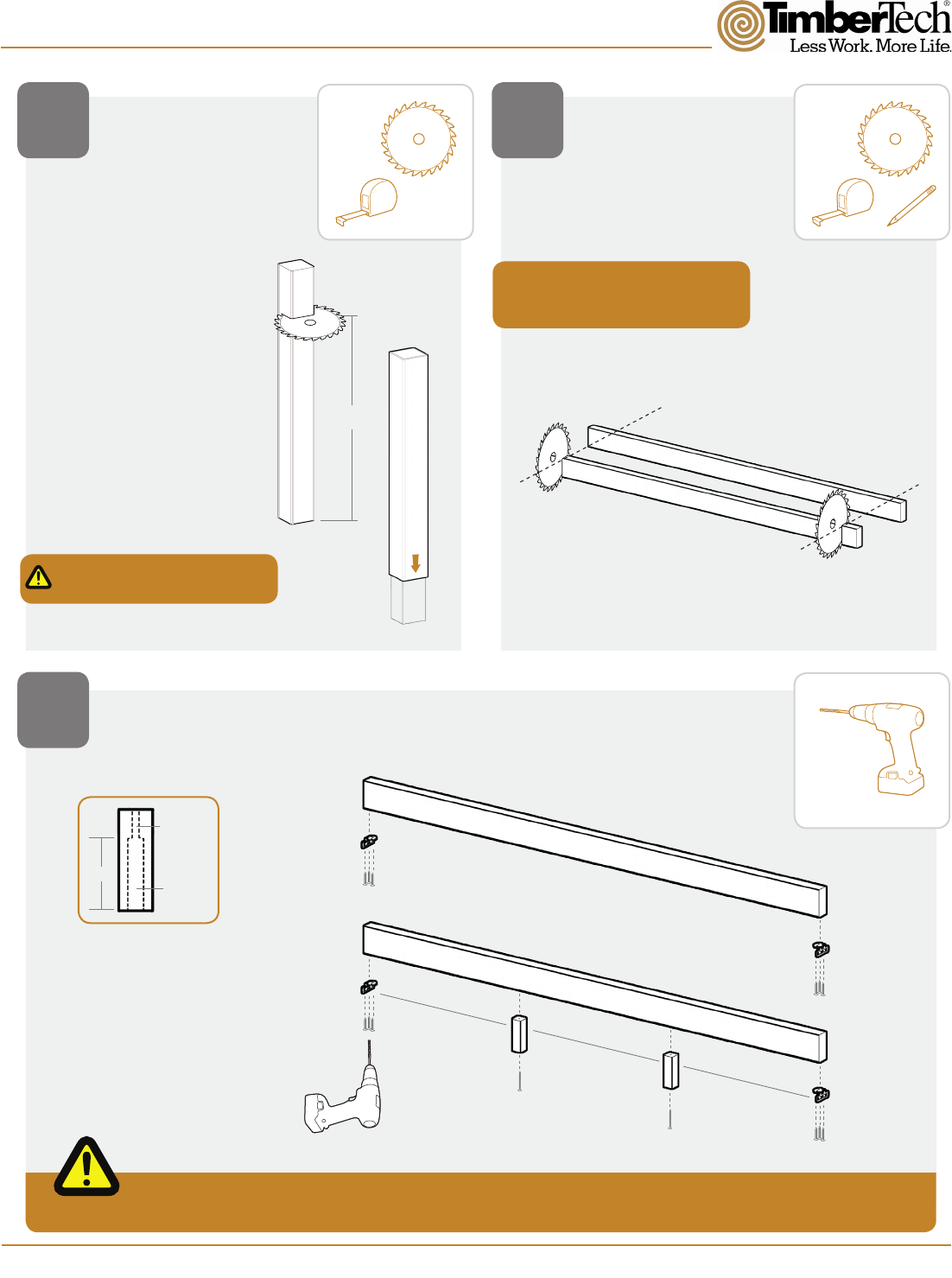

• Posts must be
positioned no more
than 6’ on center, and
must be plumb.
• Trim 4x4 Post to a
min of 35 1/2” (for
36”) and 41 1/4” (for
42) above finished
deck surface.
• Slide uncut Post
Sleeves over 4x4
posts (do not force).
CUT POSTS AND
TEMPORARILY
INSTALL POST
SLEEVES
ATTACH HINGE BRACKETS AND
FOOT BLOCKS TO BOTTOM
BUILDERBOARD
• Measure between posts.
Cut BuilderBoards.
MEASURE AND CUT
BUILDERBOARDS
For best results, cut both ends of
BuilderBoards.
Do not cut Post Sleeves in this step.
Min.
35 1/2”
Bore 1/2”
Drill 3/16”
Hole
2 1/2”
Foot Block Preparation
Place two Foot Blocks approximately at 2’ intervals on the rail
Top BuilderBoard
Bottom BuilderBoard
~2’
~2’
~2’
Pre-Drill 9/64”
#10 x 7/8” Coated Screws
Pre-Drill BuilderBoard 9/64” 2” Deep
#10 x 2” Coated Screws
