Installation Guide

Bottom Glass
Channel
Installing Evolutions Rail
TM
Builder Style with Glass Infill
Page 12
Measuring Your Railing Area
Important Information

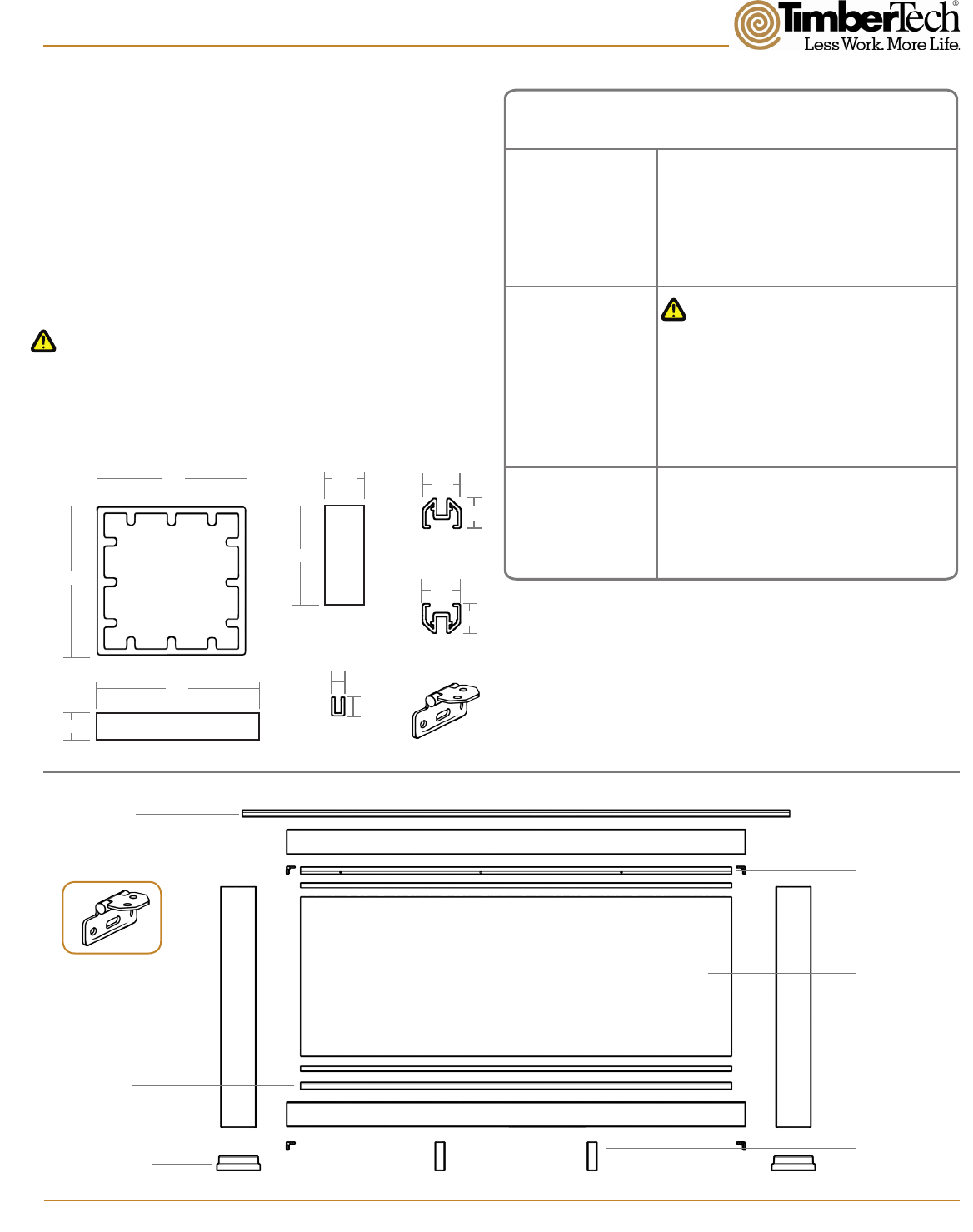

Component Dimensions
Tools Required
Components Needed For Installing
One Builder Style Rail Section
• Measurements are from center of post. BuilderBoard is
produced in 6’ lengths to allow for finished end cuts and
angles.
• Determine how many 6’ BuilderBoards you need and
check to be sure you have all the components (and
quantities) listed in the chart shown to the right.
• Glass is not provided and should be secured locally.
• 6’ BuilderBoard is designed not to exceed 6’ center of post
to center of post, respectively.
• Cut slowly, using a fine tooth saw blade to avoid chipping.
• For 42” railing, use 8’ Post Sleeves.
• Miter Saw
• Drill
• Drill Bits: 7/64” 9/64”, 3/16”, & 1/2”
• Tape Measure
Components Needed
to Complete Rail
Sections
Hardware Needed
to Complete 6’ Rail
Sections
2 - BuilderBoards
1 - Deck Plank for Top Rail
Timbertech TOPLoc Face Fasteners
2 - Foot Blocks
Hardware Kit
Hardware Mounting Kit:
4 - Hinged Brackets
11 - #10 x 2” Screws
8 - #10 x 7/8” Screws
4 - #10 x 1.5” Screws
1 - Torx Driver Bit`
Glass Panel
Top Glass Channel
Top Rail (1)
Brackets (4)
BuilderBoard (2)
Post Sleeve (2)
Gasket (2)
Post Skirt (2)
Foot Block (2)
Evolutions Rail
TM
Builder Boards are available in 6’
only for Glass Infill
5” 1.43”
5”
3.40”
Post Sleeve
BuilderBoard
Bracket
5.5”
1”
Top Rail
1.2”
1.2”
1”
1”
Bottom Glass
Channel
Top Glass Channel
.375”
.56”
Rubber
Gasket
Additional Components
Needed for Each
System
1/4 Tempered Glass must be sourced locally
(See attached reference sheet).
2 - Post Sleeves
2 - Post Skirts
Glass Channels
End Coating- Optional
Visit www.timbertech.com/installation to view TimberTech installation videos.
Consult your local building codes for guard and handrail requirements.
