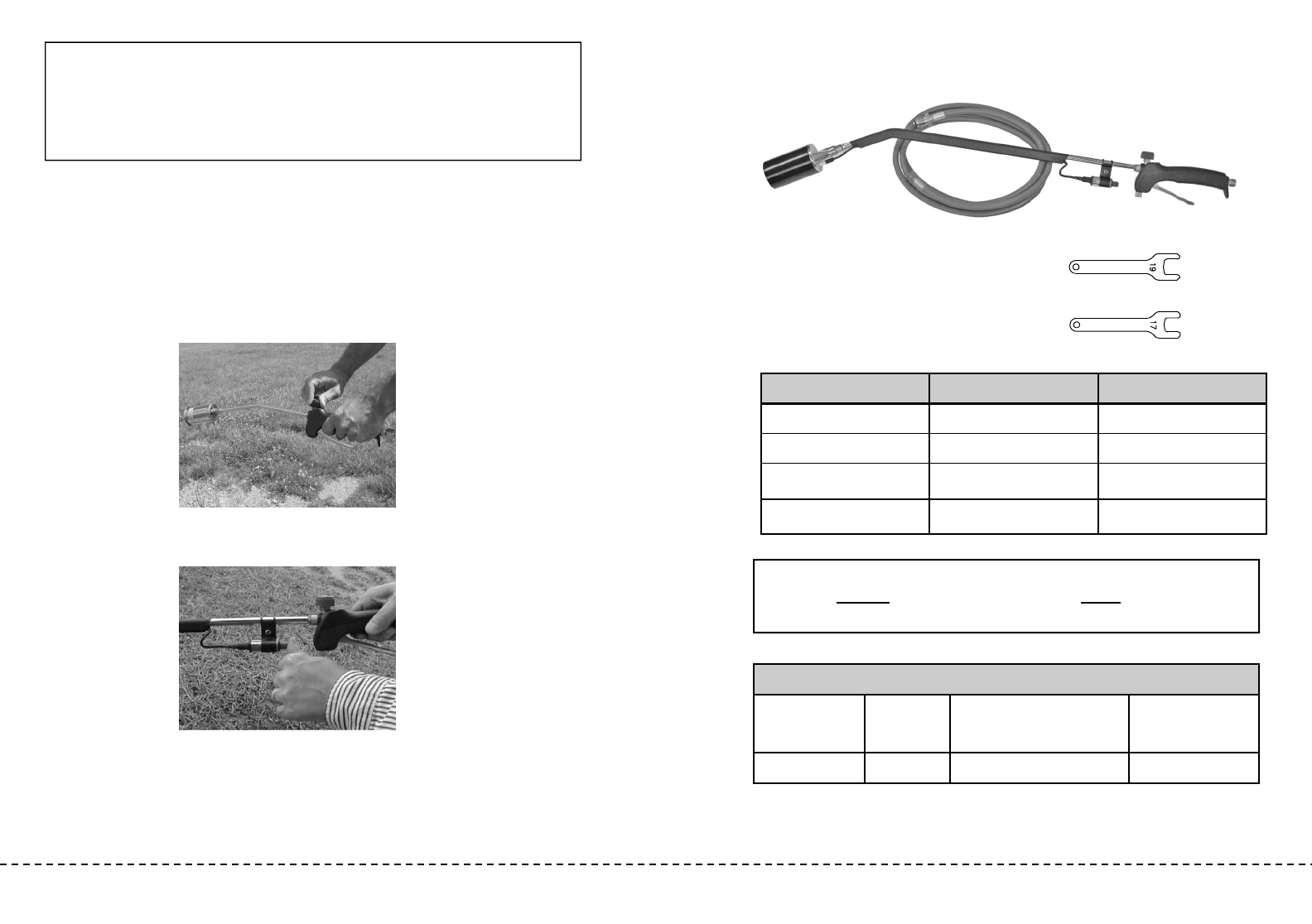

WB-100 Hotspotter—Professional Series Parts List
ITEM DESCRIPTION QUANTITY
1 Torch Assembly 1
2 Hose Assembly 1
3 17 mm Wrench 1
4 19 mm Wrench 1
CAUTION:
•
Use only genuine Western replacement parts. Never substitute parts.
Do not use modified parts.
Model BTU Operating
Temperature Range
Inlet Pressure
Range
WB-100 500,000 -10° F to 100° F 17 psi to 170
OPERATING CHARACTERISTICS
Lighting Instructions:
NOTE:
•
The hose assembly is supplied with an excess flow control valve. Opening
the supply tank shut-off valve rapidly can cause the valve to close. If the
excess flow valve closes, close the supply tank shut-off valve. Open torch
adjusting valve to release any residual gas left in the hose. Close torch-
adjusting valve and wait 30 seconds. Slowly open tank shut-off valve.
1) Be sure the torch gas valve is closed tightly-turn tight clockwise (see
Figure 5).
2) Open supply tank shut-off valve.
3) Conduct leak test as specified on page 7.
4) With torch nozzle pointed away from any flammable material, open torch
gas valve 1/8 of a turn (until you hear gas flow).
5) Press the piezo igniter switch near handle (see figure 6.)
6) Adjust flame to a minimal level using the torch gas valve.
Figure 5
Figure 6
