SBOS564A –NOVEMBER 2011– REVISED NOVEMBER 2011

Low-Power, Digital Temperature Sensor

with SMAART Wire Interface

Check for Samples: TMP104

FEATURES

DESCRIPTION

The TMP104 is a digital output temperature sensor in

• Multiple Device Access (MDA):

a four-ball wafer chip-scale package (WCSP). The

– Global Read/Write Operations

TMP104 is capable of reading temperatures to a

• SMAART Wire Interface

resolution of 1°C.

• Resolution: 8 Bits

The TMP104 features a SMAART wire interface that

• Accuracy: ±0.5°C Typ (–10°C to +100°C)

supports daisy-chain configurations. In addition, the

interface supports multiple device access (MDA)

• Low Quiescent Current:

commands that allow the master to communicate with

– 3 μA Active I

at 0.25 Hz

multiple devices on the bus simultaneously,

– 1 μA Shutdown

eliminating the need to send individual commands to

each TMP104 on the bus.

• Supply Range: 1.4 V to 3.6 V

• Digital Output

Up to 16 TMP104s can be tied together in parallel

and easily read by the host. The TMP104 is

• Package: 0.8-mm (±5%) × 1-mm (±5%) 4-Ball

especially ideal for space-constrained,

WCSP (DSBGA)

power-sensitive applications with multiple

temperature measurement zones that must be

APPLICATIONS

monitored.

• Handsets

The TMP104 is specified for operation over a

• Notebooks

temperature range of –40°C to +125°C.

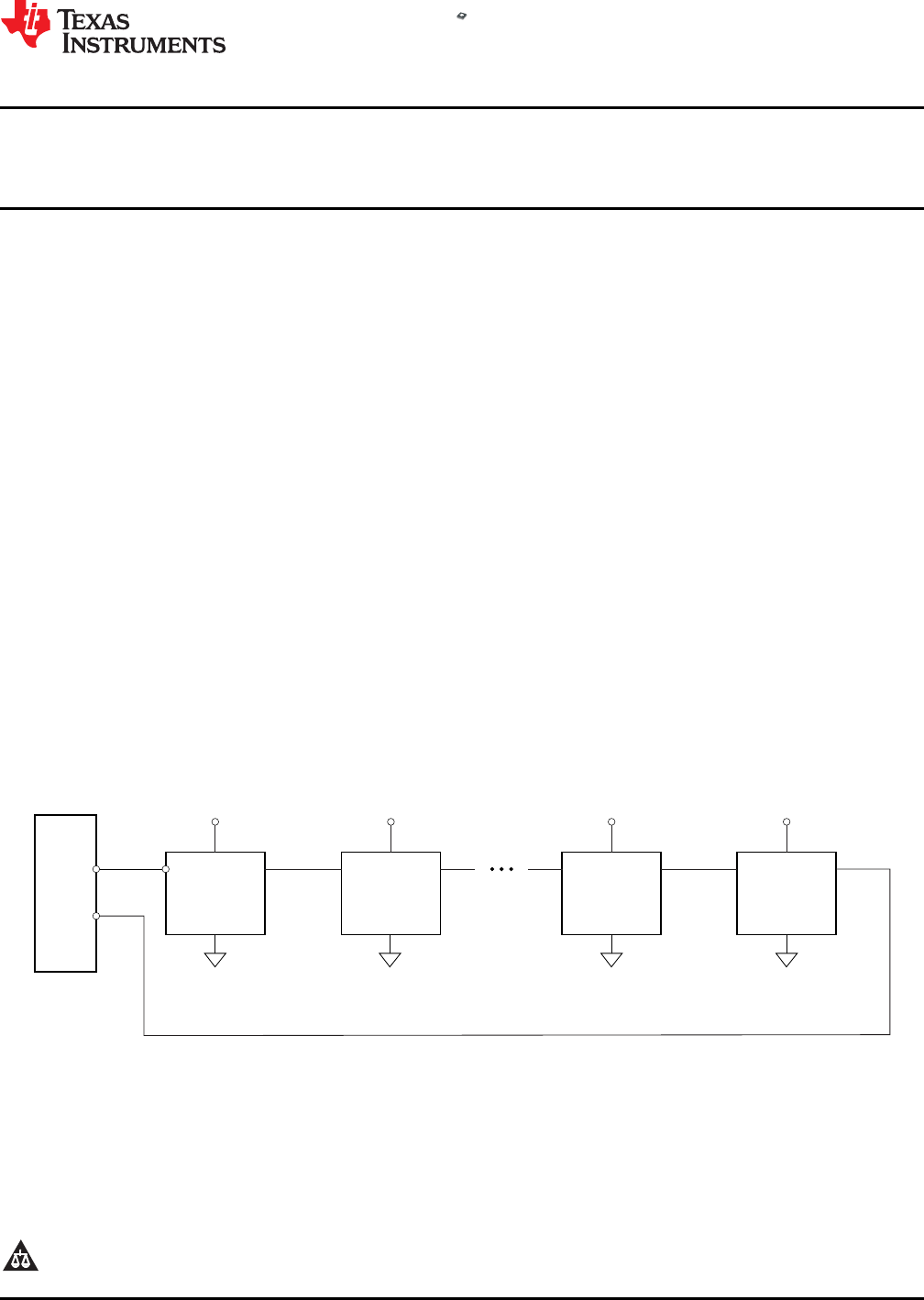

TYPICAL APPLICATION

Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of Texas

Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.

2All trademarks are the property of their respective owners.

PRODUCTION DATA information is current as of publication date.

Products conform to specifications per the terms of the Texas

Instruments standard warranty. Production processing does not

necessarily include testing of all parameters.
