TINPxL/TINPxU
TOUTxL/TOUTxU
1
2
3
4
TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
7.27.3 Timer Electrical Data/Timing
Table 7-142. Timing Requirements for Timer Input
(1)
(see Figure 7-93)
-1G
NO. UNIT
MIN MAX
1 t
w(TINPH)
Pulse duration, TINPxL/TINP0U high 2P ns
2 t
w(TINPL)
Pulse duration, TINPxL/TINP0U low 2P ns
(1) P = DEV_MXI/DEV_CLKIN cycle time in ns. For example, when DEV_MXI/DEV_CLKIN frequency is 27 MHz, use P = 37.037 ns.
Table 7-143. Switching Characteristics Over Recommended Operating Conditions for Timer Output
(1)
(see
Figure 7-93)
-1G
NO. UNIT
MIN MAX
3 t
w(TOUTH)
Pulse duration, TOUTxL/TOUTxU/TOUT2 high P ns
4 t
w(TOUTL)
Pulse duration, TOUTxL/TOUTxU/TOUT2 low P ns
(1) P = DEV_MXI/DEV_CLKIN cycle time in ns. For example, when DEV_MXI/DEV_CLKIN frequency is 27 MHz, use P = 37.037 ns.

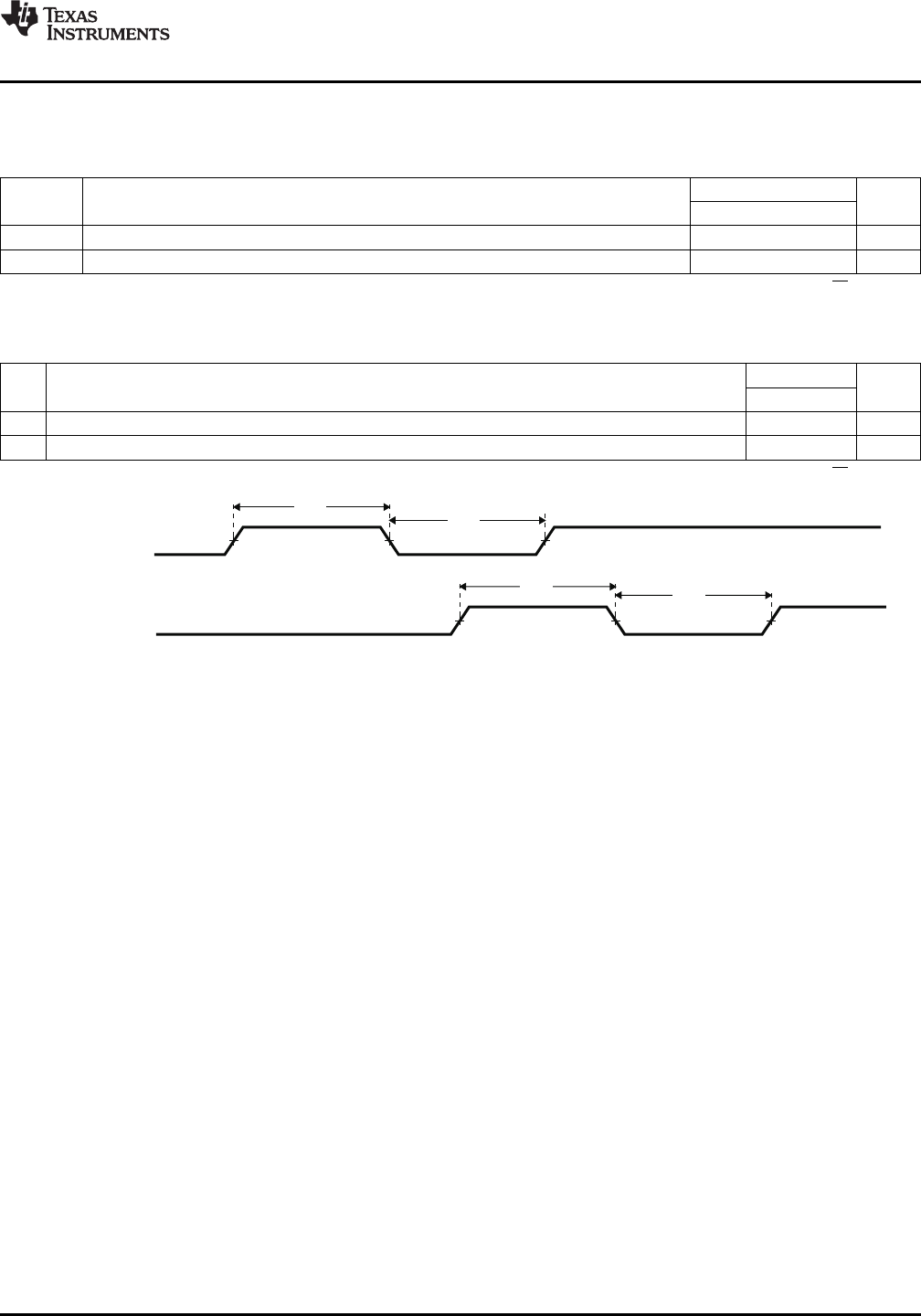

Figure 7-93. Timer Timing
Copyright © 2009–2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 341
Submit Documentation Feedback
Product Folder Link(s): TMS320DM6467T
