TMS320DM6467T
SPRS605C –JULY 2009–REVISED JUNE 2012
www.ti.com

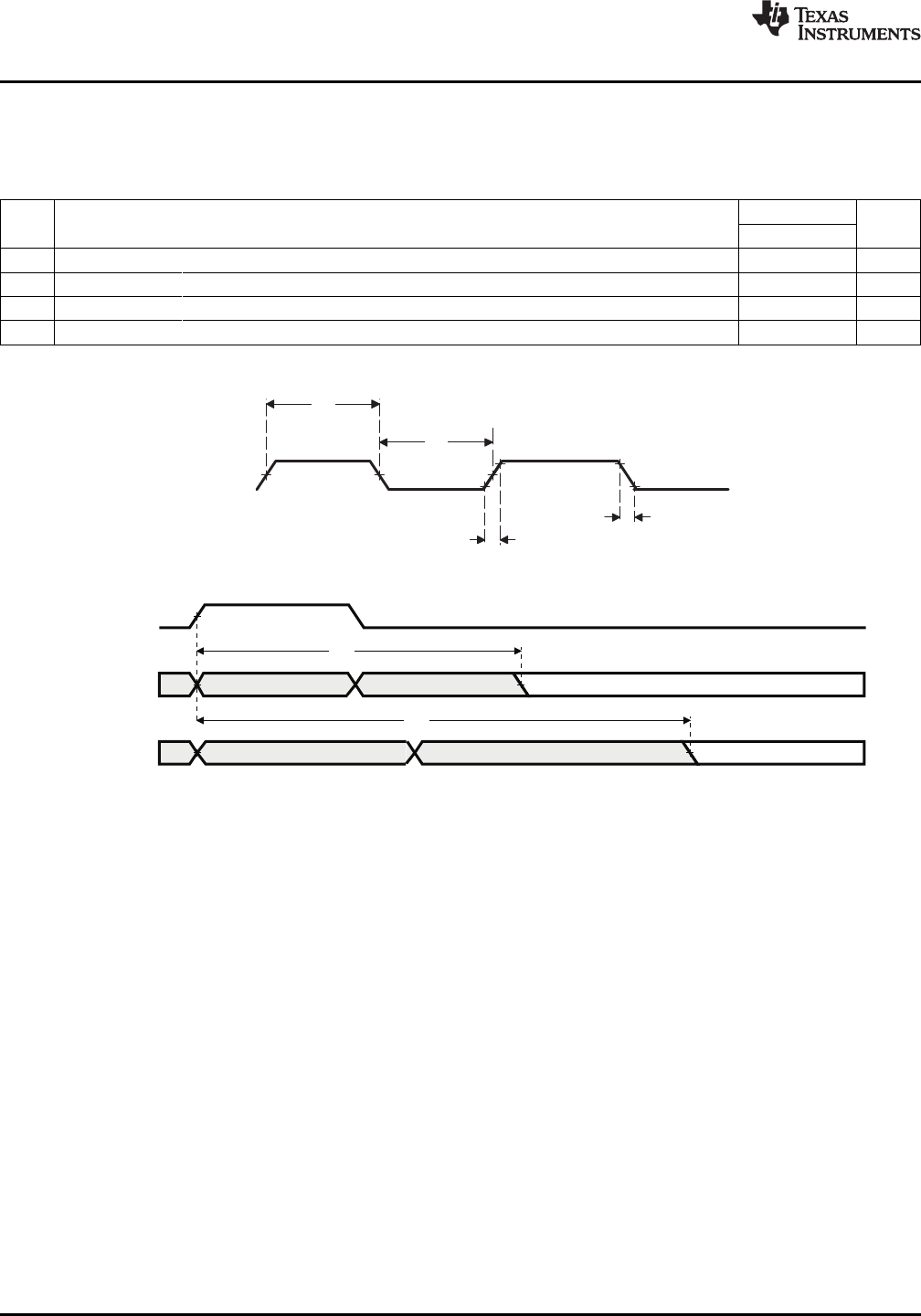

7.26.3 PWM0/1 Electrical Data/Timing
Table 7-138. Switching Characteristics Over Recommended Operating Conditions for PWM0/1 Outputs
(1)
(see Figure 7-91 and Figure 7-92)
-1G
NO. PARAMETER UNIT
MIN MAX
1 t
w(PWMH)
Pulse duration, PWMx high 37 ns
2 t
w(PWML)
Pulse duration, PWMx low 37 ns
3 t
t(PWM)
Transition time, PWMx 5 ns
4 t
d(VPIF-PWMV)
Delay time, VPIF (VSYNC) or GPIO trigger event to PWMx valid 4P 6P + 20 ns
(1) P = SYSCLK3 period in ns.
Figure 7-91. PWM Output Timing
Figure 7-92. PWM Output Delay Timing
