TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
7.24.3 UART Electrical Data/Timing [Receive/Transmit]
Table 7-128. Timing Requirements for UARTx Receive
(1)
(see Figure 7-88)
-1G
NO. UNIT
MIN MAX
4 t
w(URXDB)
Pulse duration, receive data bit (URXDx) [15/30/100 pF] 0.96U 1.05U ns
5 t
w(URXSB)
Pulse duration, receive start bit [15/30/100 pF] 0.96U 1.05U ns
(1) U = UART baud time = 1/programmed baud rate.
Table 7-129. Switching Characteristics Over Recommended Operating Conditions for UARTx Transmit
(1)
(see Figure 7-88)
-1G
NO. PARAMETER UNIT
MIN MAX
1 f
(baud)
Maximum programmable baud rate 128 kHz
2 t
w(UTXDB)
Pulse duration, transmit data bit (UTXDx) [15/30/100 pF] U - 2 U + 2 ns
3 t
w(UTXSB)
Pulse duration, transmit start bit [15/30/100 pF] U - 2 U + 2 ns
(1) U = UART baud time = 1/programmed baud rate.

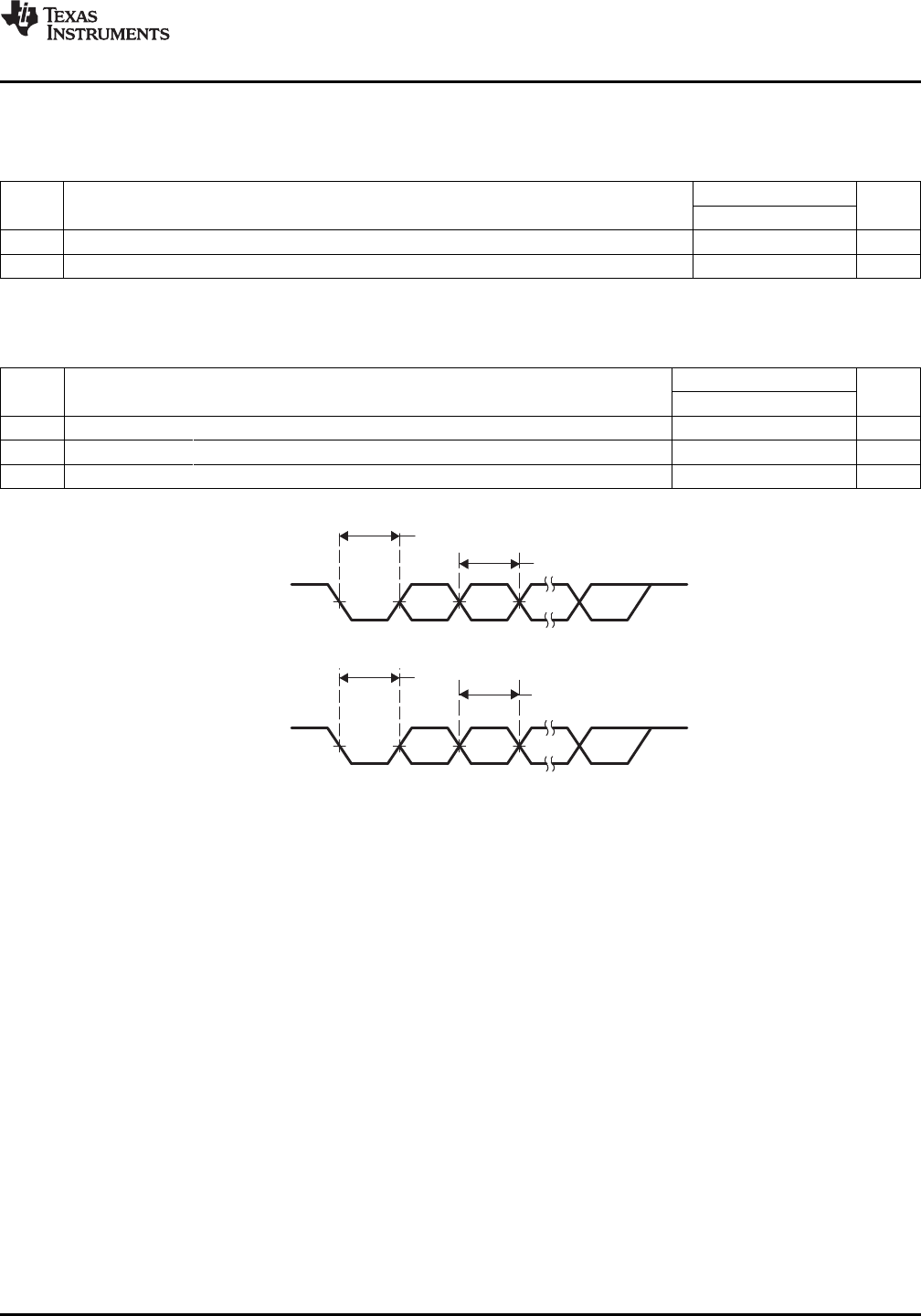

Figure 7-88. UART Transmit/Receive Timing
Copyright © 2009–2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 331
Submit Documentation Feedback
Product Folder Link(s): TMS320DM6467T
