TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
7.21.3 VLYNQ Electrical Data/Timing
Table 7-96. Timing Requirements for VLYNQ_CLOCK Input (see Figure 7-80)
-1G
NO. UNIT
MIN MAX
1 t
c(VCLK)
Cycle time, VLYNQ_CLOCK 9.6 ns
2 t
w(VCLKH)
Pulse duration, VLYNQ_CLOCK high 3 ns
3 t
w(VCLKL)
Pulse duration, VLYNQ_CLK low 3 ns
4 t
t(VCLK)
Transition time, VLYNQ_CLOCK 3 ns
Table 7-97. Switching Characteristics Over Recommended Operating Conditions for VLYNQ_CLOCK
Output (see Figure 7-80)
-1G
NO. PARAMETER UNIT
MIN MAX
1 t
c(VCLK)
Cycle time, VLYNQ_CLOCK 9.6 ns
2 t
w(VCLKH)
Pulse duration, VLYNQ_CLOCK high 4 ns
3 t
w(VCLKL)
Pulse duration, VLYNQ_CLOCK low 4 ns
4 t
t(VCLK)
Transition time, VLYNQ_CLOCK 3 ns

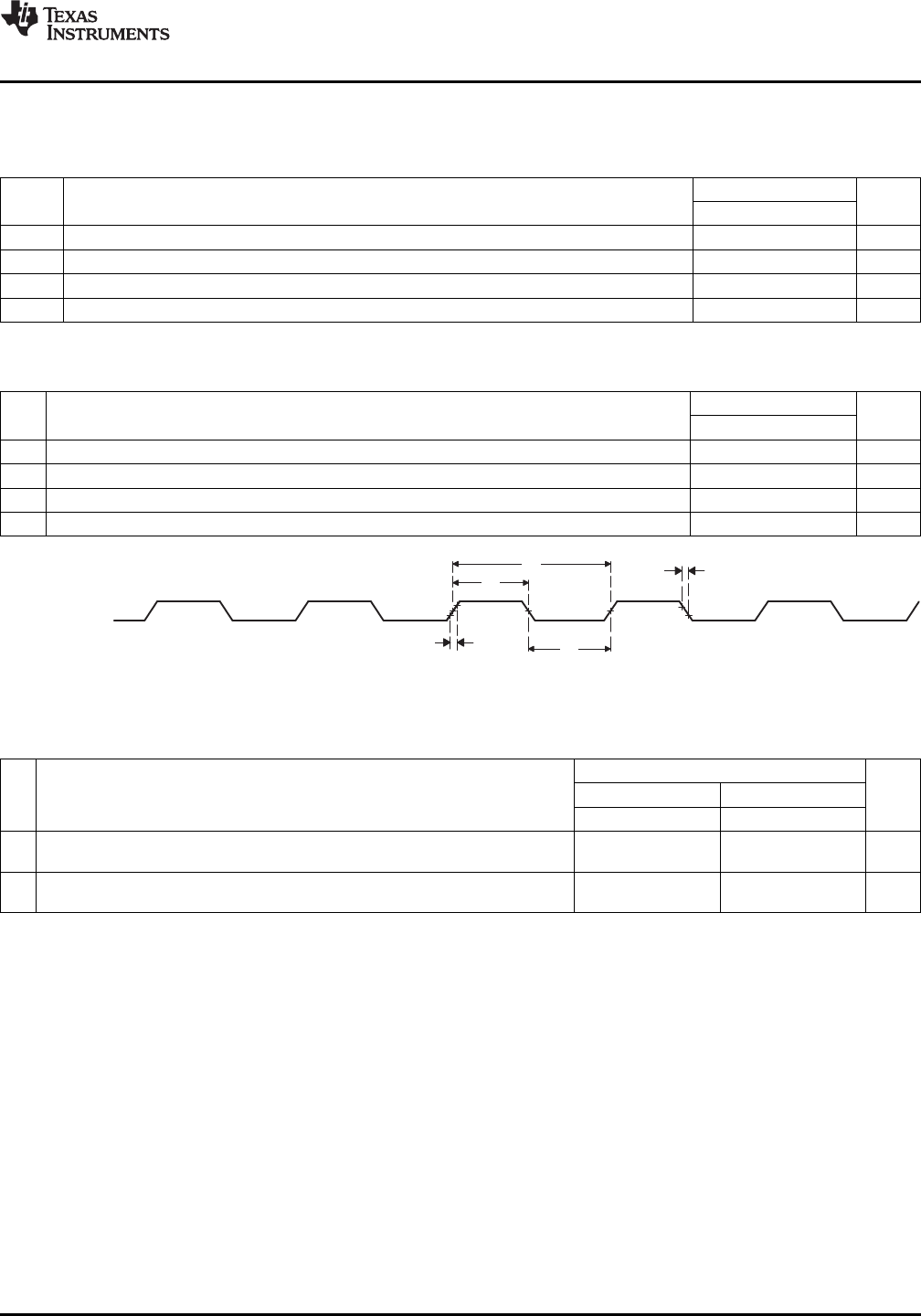

Figure 7-80. VLYNQ_CLOCK Timing for VLYNQ
Table 7-98. Switching Characteristics Over Recommended Operating Conditions for Transmit Data for the
VLYNQ Module (see Figure 7-81)
-1G
NO
PARAMETER FAST MODE SLOW MODE UNIT
.
MIN MAX MIN MAX
t
d(VCLKH-
1 Delay time, VLYNQ_CLOCK high to VLYNQ_TXD[3:0] invalid 1 2.21 ns
TXDI)
t
d(VCLKH-
2 Delay time, VLYNQ_CLOCK high to VLYNQ_TXD[3:0] valid 7.14 8.5 ns
TXDV)
Copyright © 2009–2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 297
Submit Documentation Feedback
Product Folder Link(s): TMS320DM6467T
