CRGx_PO
1
3
3
2
CRGx_VCXI
2 3
1
4
4
TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012

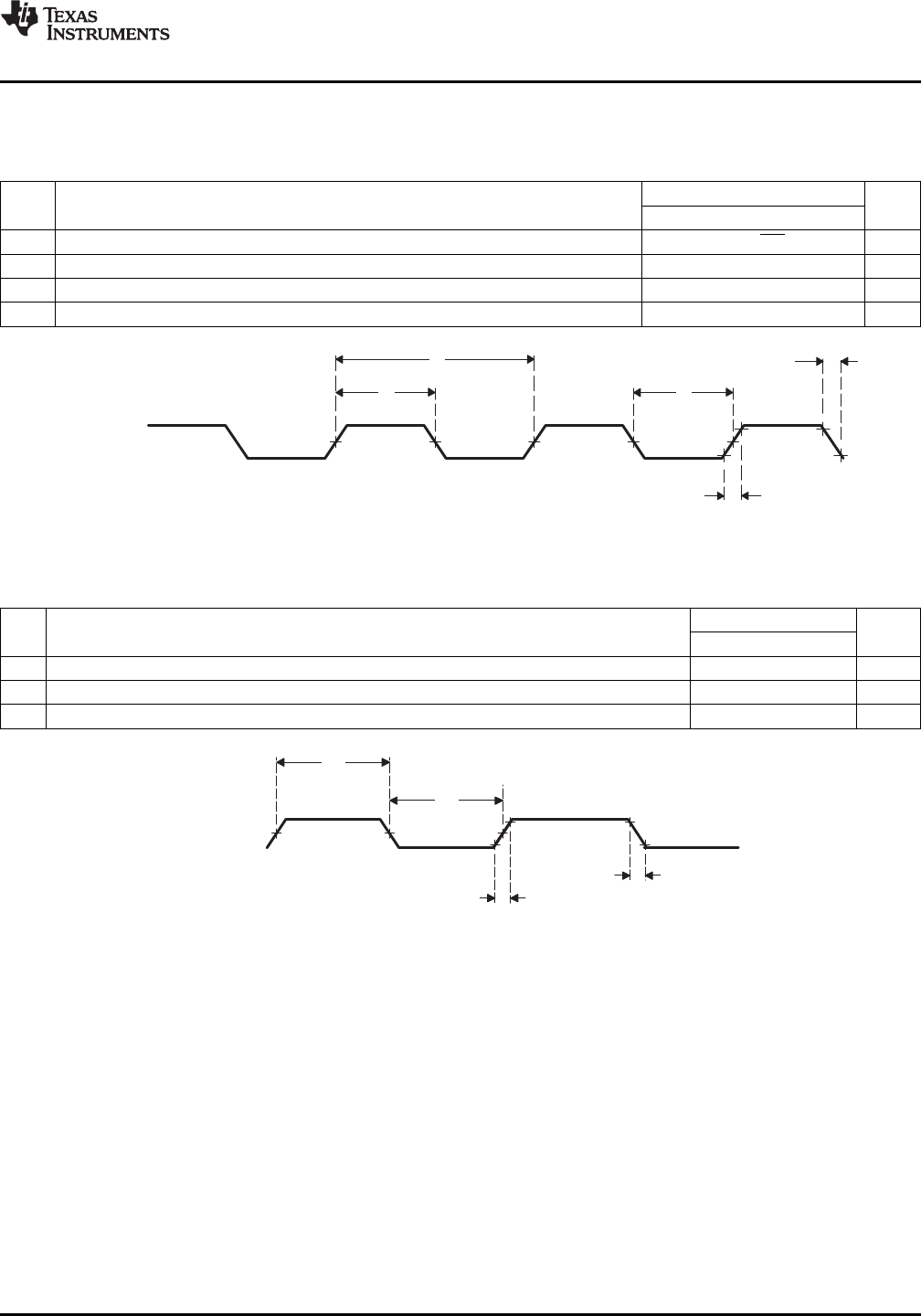

7.13.2 CRGEN Electrical Data/Timing
Table 7-56. Timing Requirements for CRGx_VCXI Input (see Figure 7-47)
-1G
NO. UNIT
MIN NOM MAX
1 t
c(VCXI)
Cycle time, CRGx_VCXI 29.63 37.037 44.44 ns
2 t
w(VCXIH)
Pulse duration, CRGx_VCXI high 0.4P ns
3 t
w(VCXIL)
Pulse duration, CRGx_VCXI low 0.4P ns
4 t
t(VCXI)
Transition time, CRGx_VCXI 5 ns
Figure 7-47. CRGx_VCXI Input Timing
Table 7-57. Switching Characteristics Over Recommended Operating Conditions for CRGx_PO Output
(see Figure 7-48)
-1G
NO. PARAMETER UNIT
MIN MAX
1 t
w(POH)
Pulse duration, CRGx_PO high 59.26 ns
2 t
w(POL)
Pulse duration, CRGx_PO low 59.26 ns
3 t
t(PO)
Transition time, CRGx_PO 5 ns
Figure 7-48. CRGx_PO Output Timing
