TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
7.12.4 Transport Stream Interface (TSIF) Electrical Data/Timing
Table 7-52. Timing Requirements for TSIF Input (see Figure 7-45)
-1G
SERIAL PARALLEL
NO. UNIT
INPUT INPUT
(1)
MIN MAX MIN MAX
1 t
c(TSCLKIN)
Cycle time, TSx_CLKIN 10 16.7 ns
2 t
w(TSCLKIN)
Pulse duration, TSx_CLKIN high/low
(2)
0.4C 0.4C ns
3 t
t(TSCLKIN)
Transition time, TSx_CLKIN 3
(3)
3
(3)
ns
All Others 4 4 ns
Setup time, TSx_CTL/TSx_DATA
(4)
input valid
4 t
su(TSDATAIN-TSCLKINV)
TSx_WAIT
before TSx_CLKIN edge
13 13 ns
IN
Hold time, TSx_CTL/TSx_DATA
(4)
input valid after
5 t
h(TSCLKINV-TSDATAIN)
0 0 ns
TSx_CLKIN edge
(1) TSIF1 supports SERIAL INPUT mode only.
(2) C = TSx_CLKIN period (cycle time) in ns.
(3) For a 4-inch transmission line with 4-pF load capacitance at the device pin.
(4) TSx_CTL/TSx_DATA input includes: TS0_EN_WAITO, TS0_WAITIN, TS0_PSTIN, and TS0_DIN[7:0] for a parallel input. For a serial
input, TSx_CTL/TSx_DATA input includes: TSx_EN_WAITO, TSx_WAITIN, TSx_PSTIN, and TS0_DIN7 or TS1_DIN.
A. TSx_CTL/TSx_DATA input includes: TS0_EN_WAITO, TS0_WAITIN, TS0_PSTIN, and TS0_DIN[7:0] for a parallel
input. For a serial input, TSx_CTL/TSx_DATA input includes: TSx_EN_WAITO, TSx_WAITIN, TSx_PSTIN, and
TS0_DIN7 or TS1_DIN.

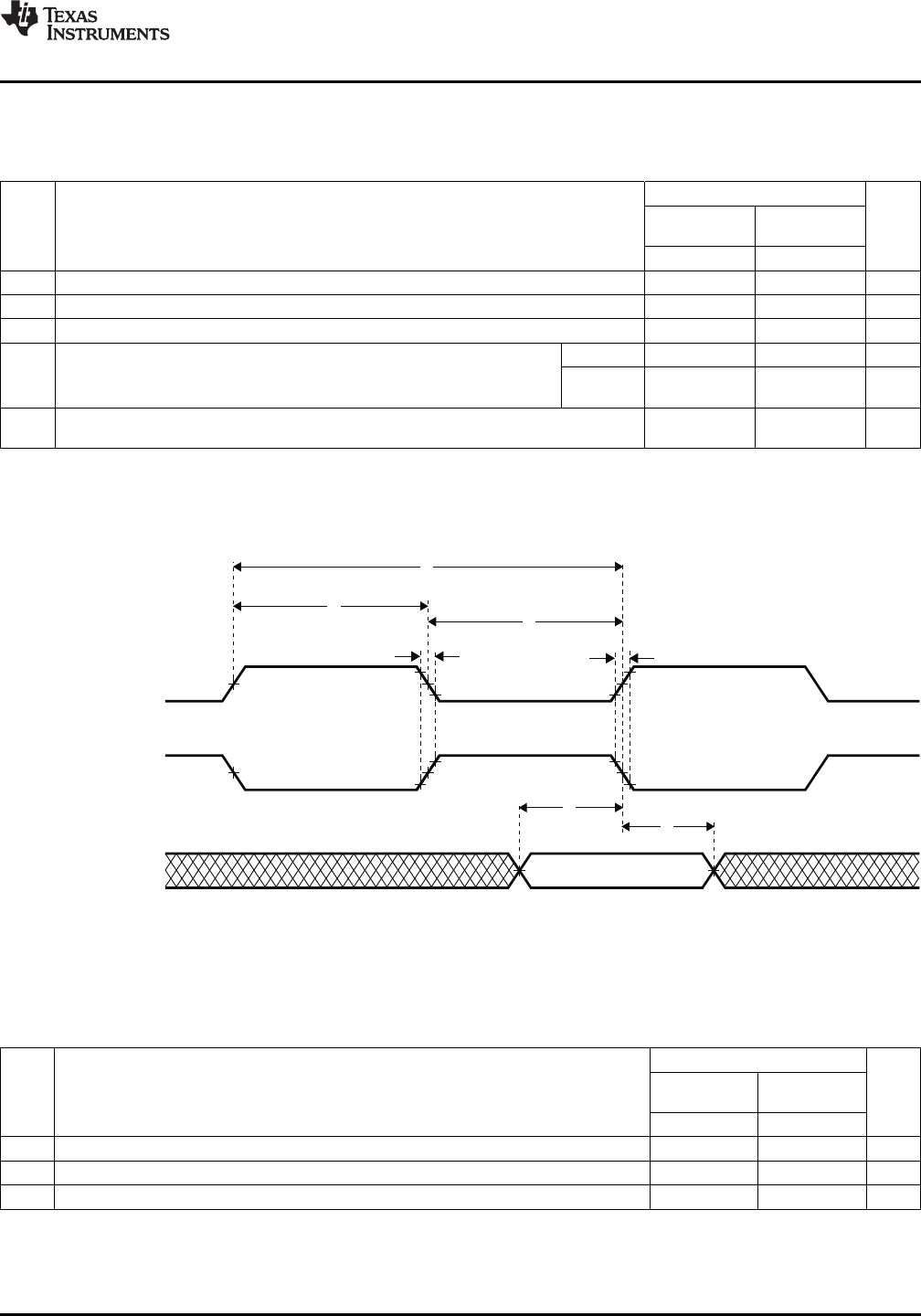

Figure 7-45. TSIF Input Timing
Table 7-53. Switching Characteristics Over Recommended Operating Conditions for TSIF Output
(see Figure 7-46)
-1G
SERIAL PARALLEL
NO. UNIT
OUTPUT OUTPUT
(1)
MIN MAX MIN MAX
6 t
c(TSCLKO)
Cycle time, TSx_CLKO 10 16.7 ns
7 t
w(TSCLKO)
Pulse duration, TSx_CLKO high/low
(2)
0.4C 0.4C ns
8 t
t(TSCLKO)
Transition time, TSx_CLKO 3
(3)
3
(3)
ns
(1) TSIF1 supports SERIAL OUTPUT mode only.
(2) C = TSx_CLKO period (cycle time) in ns.
(3) For a 4-inch transmission line with 4-pF load capacitance at the device pin.
Copyright © 2009–2012, Texas Instruments Incorporated Peripheral Information and Electrical Specifications 235
Submit Documentation Feedback
Product Folder Link(s): TMS320DM6467T
