VP_CLKINx
2 3
1
4
4
TMS320DM6467T
www.ti.com
SPRS605C –JULY 2009–REVISED JUNE 2012
7.11.4 VPIF Electrical Data/Timing
Table 7-46. Timing Requirements for VPIF VP_CLKINx Inputs
(1)
(see Figure 7-38)
-1G
NO. UNIT
MIN MAX
1 t
c(VKI)
Cycle time, VP_CLKIN0/1/2/3 6.66 ns
2 t
w(VKIH)
Pulse duration, VP_CLKINx high 0.4C ns
3 t
w(VKIL)
Pulse duration, VP_CLKINx low 0.4C ns
4 t
t(VKI)
Transition time, VP_CLKINx 5 ns
(1) C = VP_CLKINx period in ns.

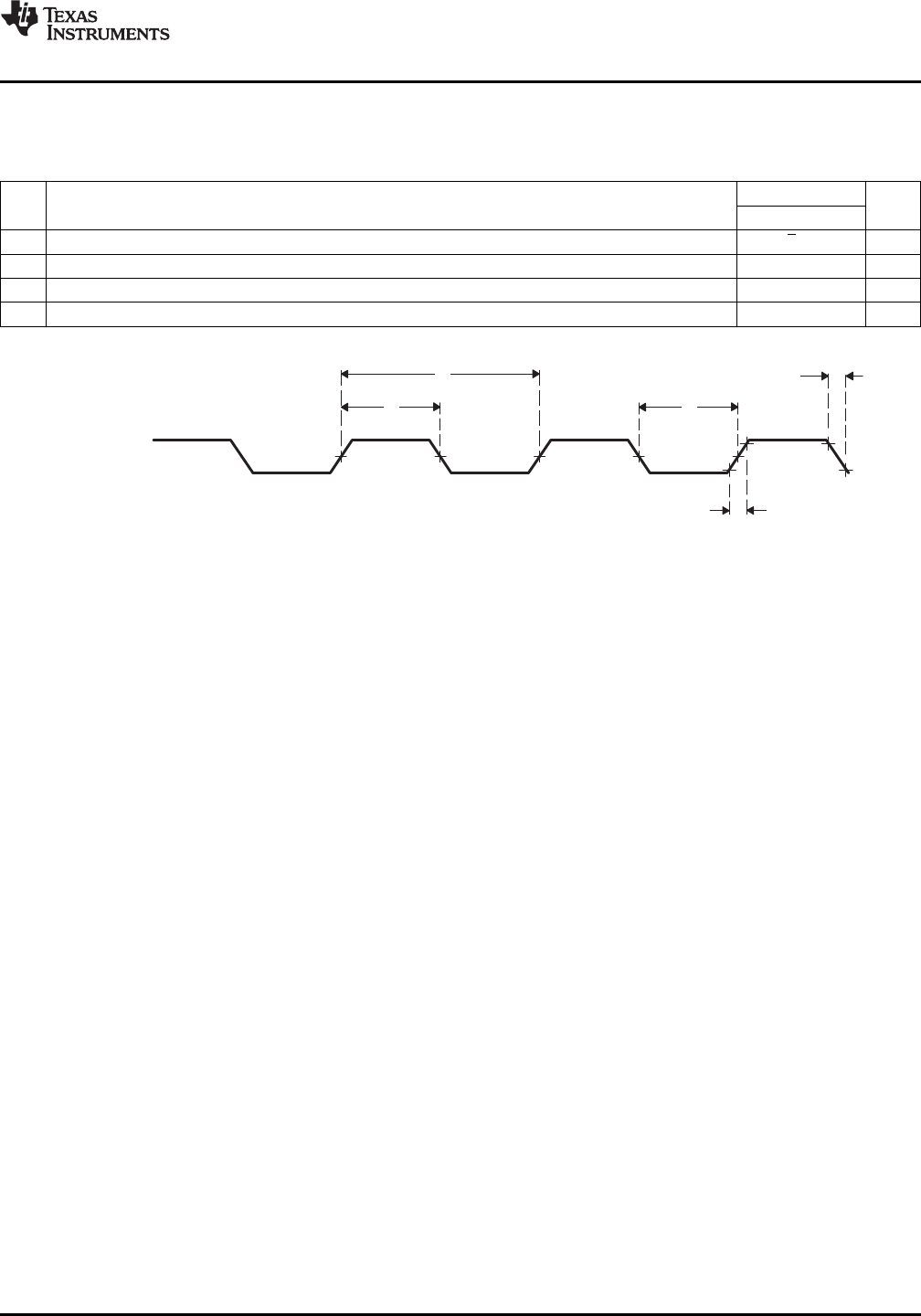

Figure 7-38. Video Port Capture VP_CLKINx Timing
